Catalogue Menu

GENEF75M-5.A001

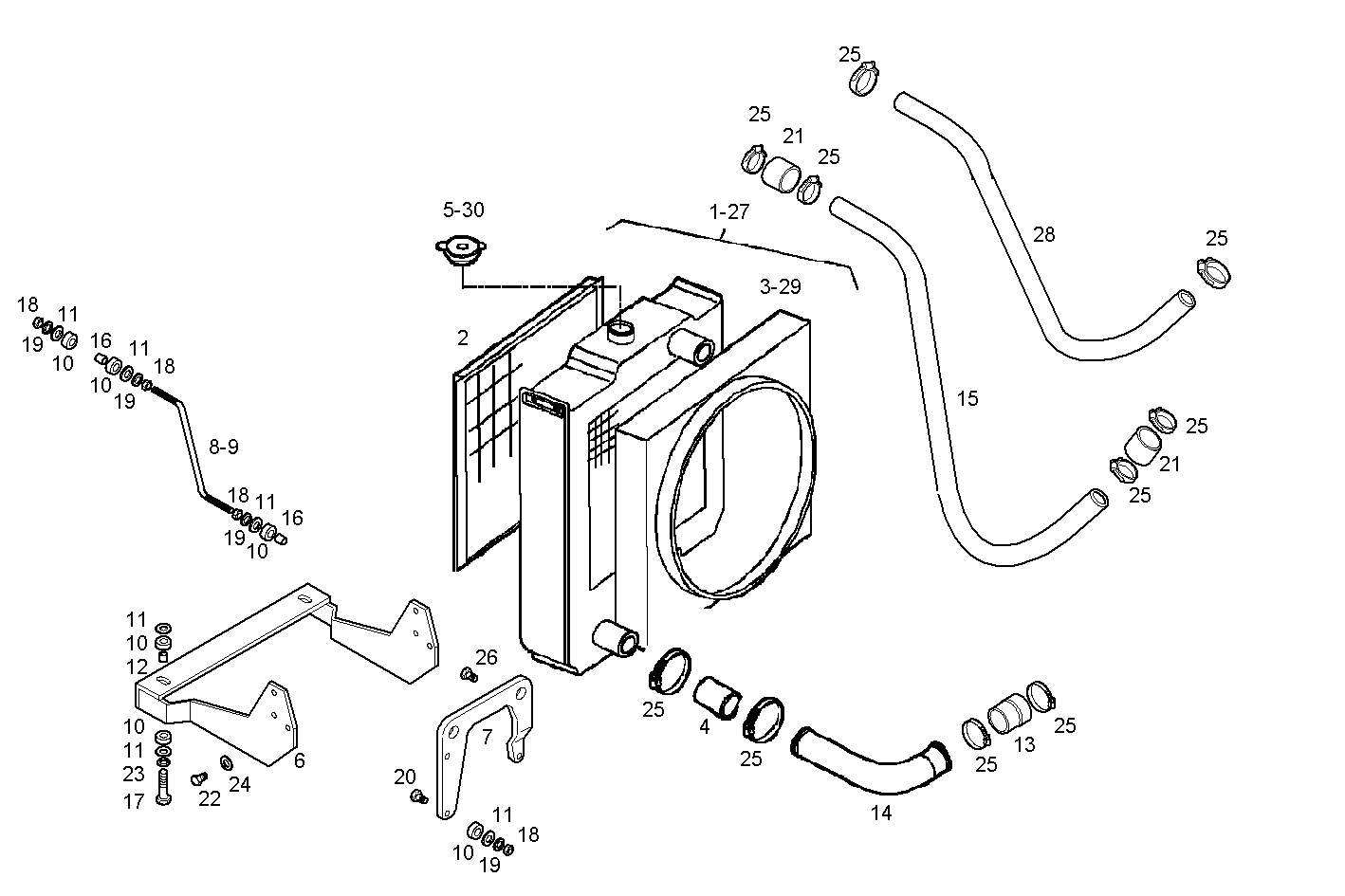

A22010513 RADIATOR

Iveco/FPT RADIATOR

Item Part number Description
1 8037576 WATER RADIATOR Alexon
2 8038454 PROTECTION Alexon
3 8038453 AIR HOOD Alexon
4 17743887 RUBBER SLEEVE
5 8038455 RADIATOR PLUG Alexon
6 8038464 SUPPORT
7 8038584 FASTENING BRACKET
8 8038585 TIE ROD RIGHT
9 8038468 TIE ROD LEFT
10 741569 RUBBER LUG
11 741570 WASHER Ø10X17 MM SP=2,3
12 8108634 SPACING BAR
13 8036102 WATER HOSE
14 8041439 WATER PIPE
15 8033603 WATER PIPE [UP TO 31-05-06]
16 741571 SPACING BAR Ø10X17 MM SP=2,3
17 16608525 HEXAGON BOLT M10X1,5X70 MM (8.8)
18 17038425 HEXAGON NUT M12 (8)
19 17091074 WASHER Ø12X24X2,8 MM
20 16673735 HEXAGON BOLT M8X25 MM
21 4863960 WATER HOSE
22 16630034 HEXAGON BOLT M12X40 MM
23 17090274 WASHER Ø10X20 MM
24 17091174 SPRING WASHER Ø12X24 MM
25 17764892 PIPE CLIP Ø40-60 MM
26 16587125 HEXAGON BOLT M10X25 MM
27 8048895 WATER RADIATOR FOR RADIATOR "IBS"
28 8045294 WATER HOSE
29 8048960 AIR HOOD FOR RADIATOR "IBS"
30 8048144 RADIATOR PLUG FOR RADIATOR "IBS"
