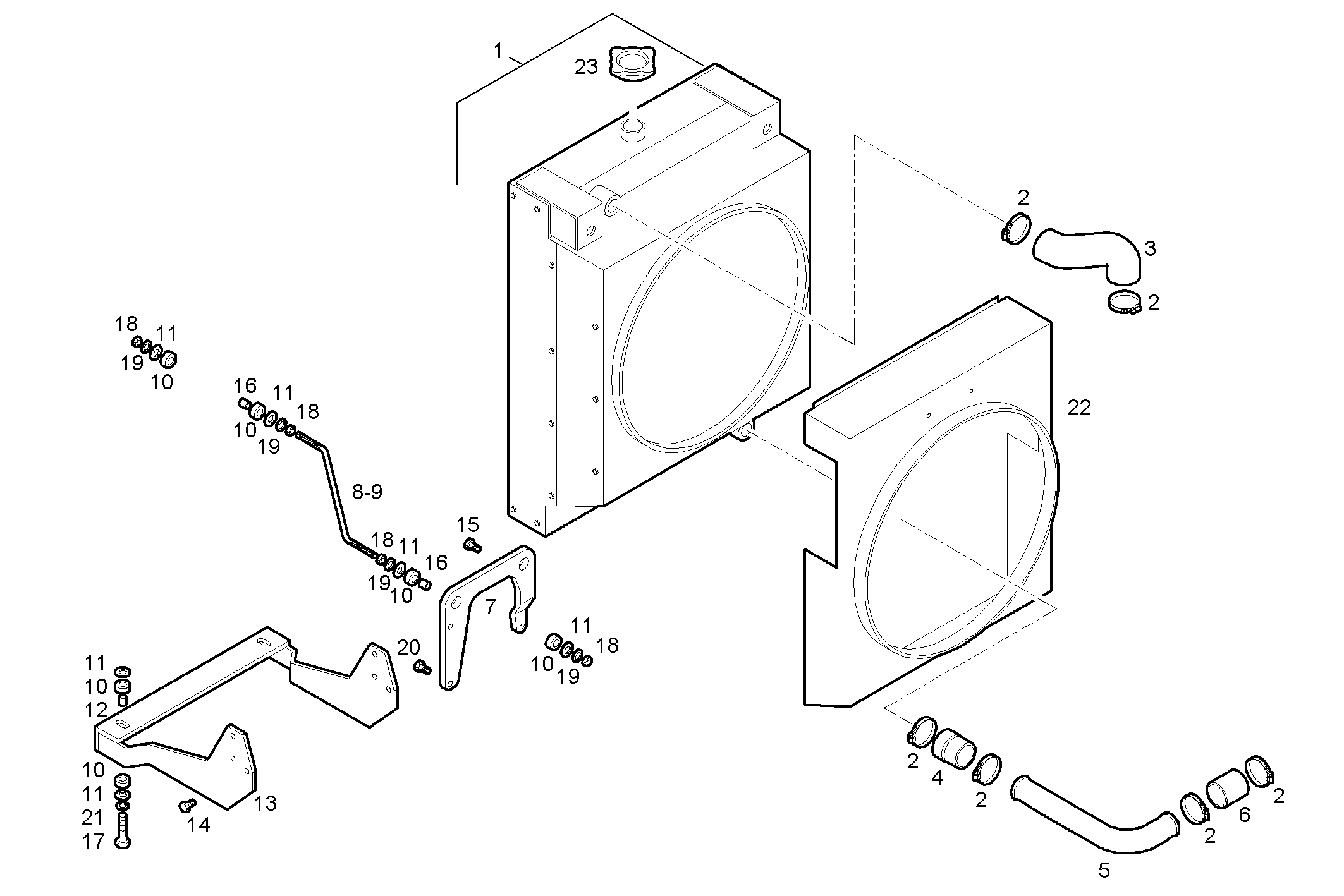

| Item |
Part number |
Description |
|
1 |
8048895 |
WATER RADIATOR FOR RADIATOR "IBS" |
|
2 |
17764892 |
PIPE CLIP Ø40-60 MM |
|
3 |
8045294 |
WATER HOSE |
|
4 |
8036102 |
WATER HOSE |
|
5 |
8041439 |
WATER PIPE |
|
6 |
17743887 |
RUBBER SLEEVE |
|
7 |
8038584 |
FASTENING BRACKET |
|
8 |
8038585 |
TIE ROD RIGHT |
|
9 |
8038468 |
TIE ROD LEFT |
|
10 |
741569 |
RUBBER LUG |
|
11 |
741570 |
WASHER Ø10X17 MM SP=2,3 |
|
12 |
8108634 |
SPACING BAR |
|
13 |
8038464 |
SUPPORT |
|
14 |
16630034 |
HEXAGON BOLT M12X40 MM |
|
15 |
16587125 |
HEXAGON BOLT M10X25 MM |
|
16 |
741571 |
SPACING BAR Ø10X17 MM SP=2,3 |
|
17 |
16608525 |
HEXAGON BOLT M10X1,5X70 MM (8.8) |
|
18 |
17038425 |
HEXAGON NUT M12 (8) |
|
19 |
17091074 |
WASHER Ø12X24X2,8 MM |
|
20 |
16673735 |
HEXAGON BOLT M8X25 MM |
|
21 |
17090274 |
WASHER Ø10X20 MM |
|
22 |
8048960 |
AIR HOOD FOR RADIATOR "IBS" |
|
23 |
8048144 |
RADIATOR PLUG FOR RADIATOR "IBS" |
