GENEF75M-6.R980

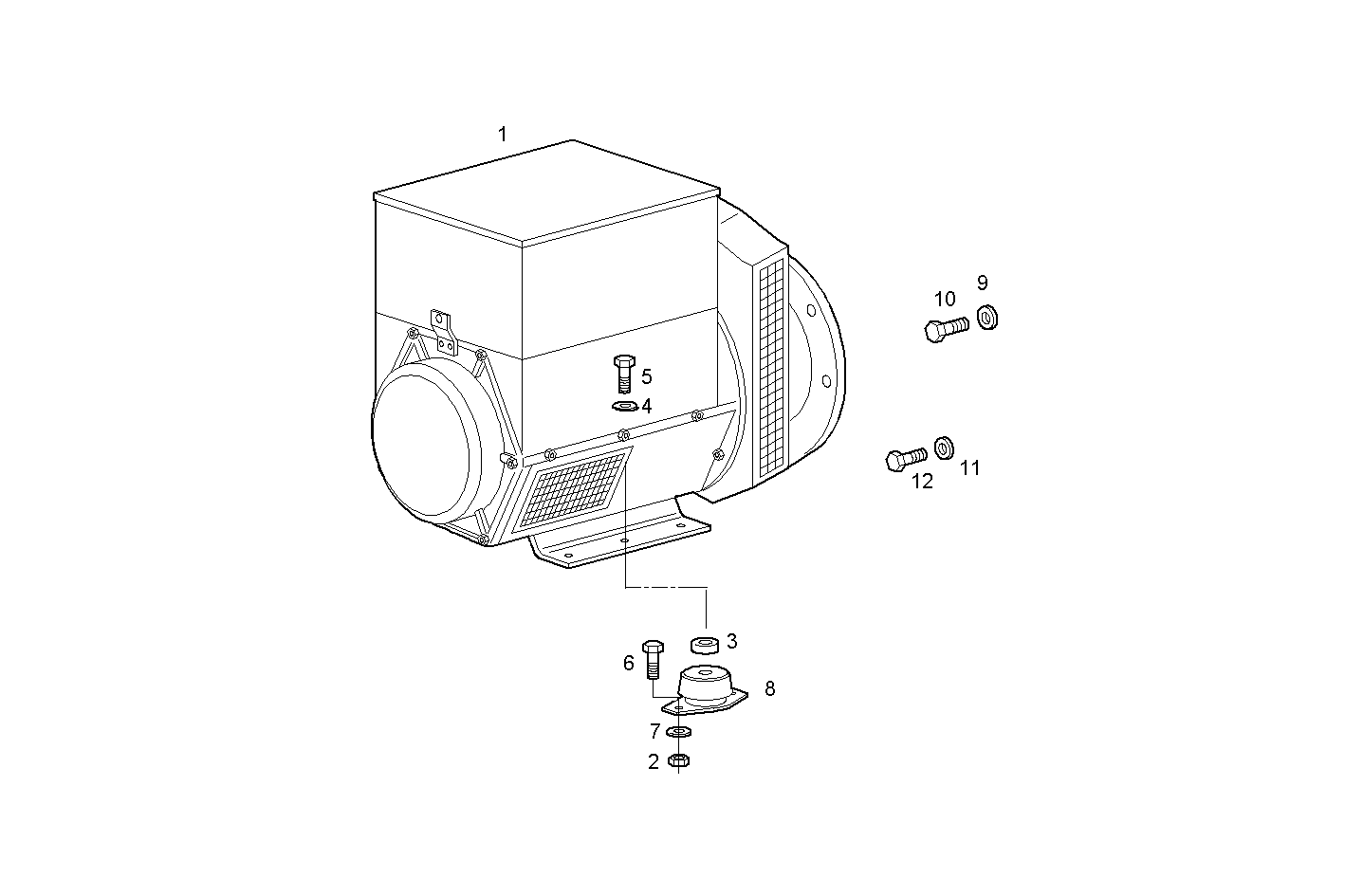

A37015015 ELECTRIC MACHINE - STAMFORD
| Item | Part number | Description |
|---|---|---|
| 1 | 8020803 | ELECTRIC MACHINE UCD 224 F 16 50-60HZ [from 05-95] |
| 2 | 17038125 | NUT M10 |
| 3 | 8016929 | SPACING BAR |
| 4 | 17092174 | SPRING WASHER Ø16X32X3,4 |
| 5 | 16615325 | SCREW |
| 6 | 16607724 | HEXAGON BOLT M10X1,5X30 MM (8.8) |
| 7 | 17090474 | SPRING WASHER Ø10X27 MM SP=2,5 |
| 8 | 503111672 | RUBBER LUG |
| 9 | 17798374 | SPRING WASHER Ø10,2X18,1 MM |
| 10 | 16619124 | SCREW M10X22 MM |
| 11 | 17090174 | SPRING WASHER Ø10X20 MM |
| 12 | 16608024 | HEXAGON BOLT M10X1,25X45 MM |
