GENEF75MA.R980

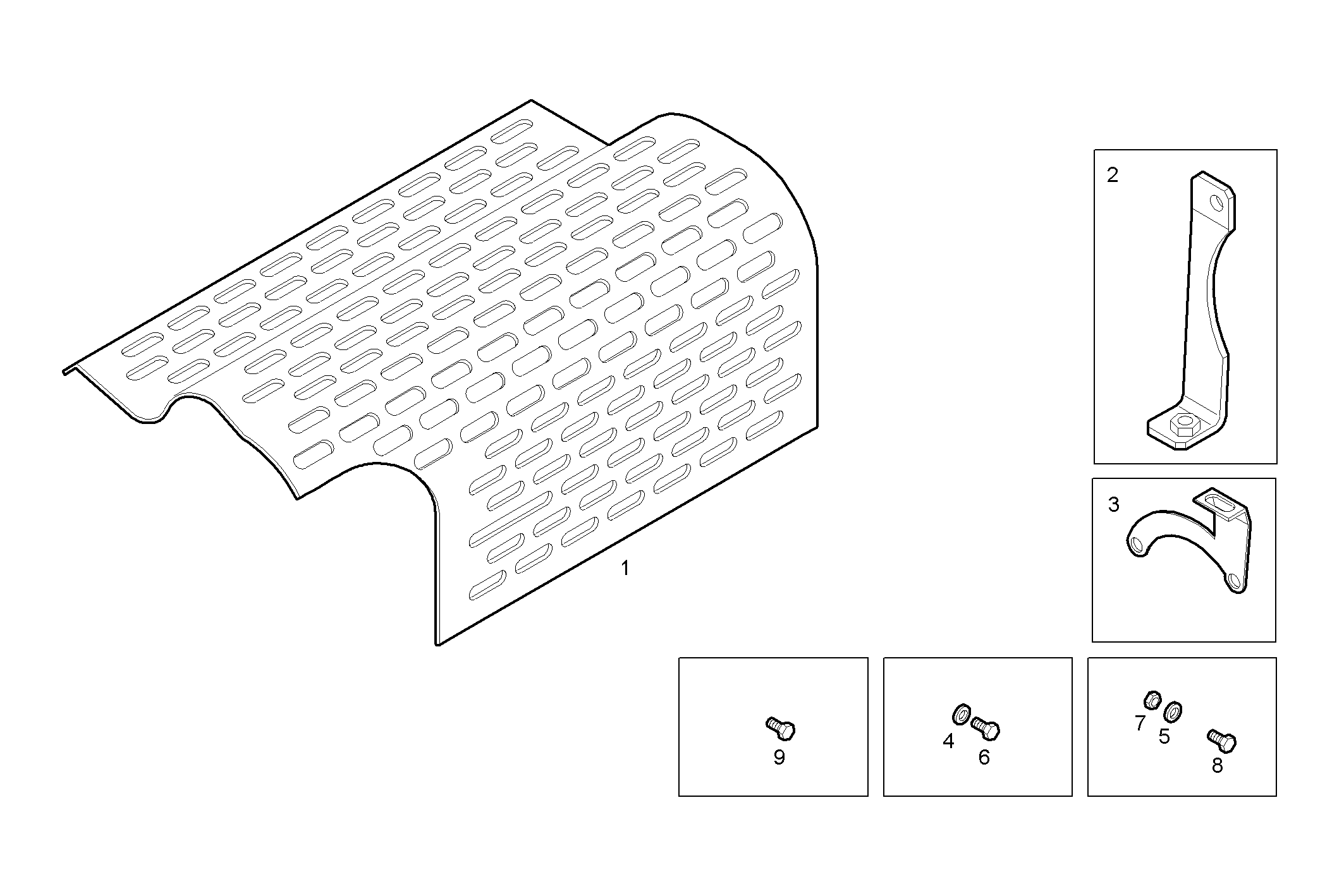

A48505010 GUARD - exh.manif. & turbocharg.
| Item | Part number | Description |
|---|---|---|
| 1 | 503113387 | PROTECTION |
| 2 | 503113390 | RETAINER |
| 3 | 503113392 | RETAINER |
| 4 | 17710174 | WASHER Ø6X11 MM |
| 5 | 17094914 | WASHER 8x16 |
| 6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 7 | 17037921 | HEXAGON NUT M8X1,25 |
| 8 | 16605524 | HEXAGON BOLT M8X20 MM |
| 9 | 16605424 | SCREW M8X16 MM (8.8) |
