GENEF85M.1R980

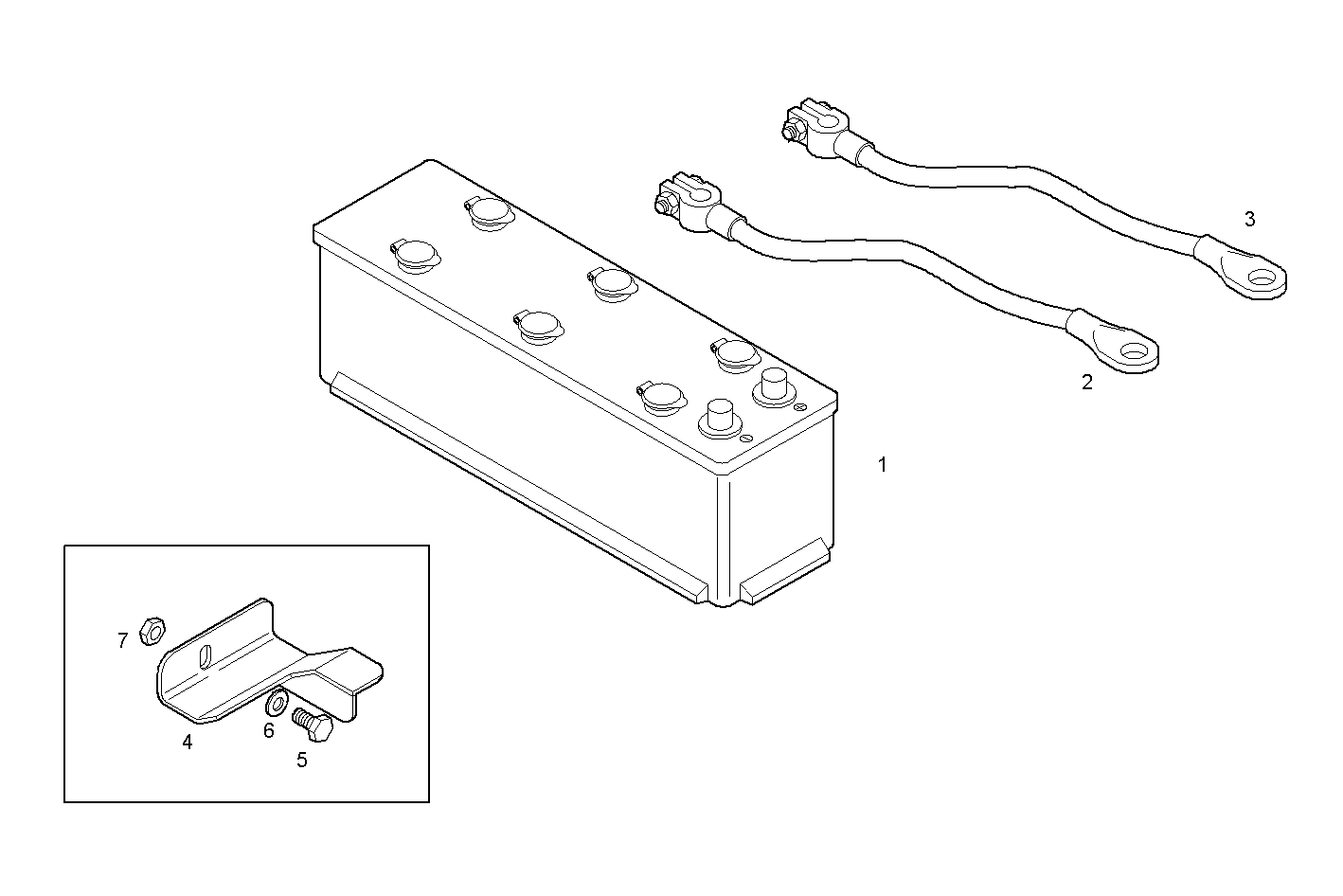

A30505002 STARTING BATTERY 12V
| Item | Part number | Description |
|---|---|---|
| 1 | 8029963 | BATTERY 12V |
| 2 | 503110871 | WIRE/CABLE (-) |
| 3 | 4930995 | WIRE/CABLE (+) |
| 4 | 503112590 | FASTENING BRACKET |
| 5 | 16605424 | SCREW M8X16 MM (8.8) |
| 6 | 17089574 | WASHER Ø8X16 MM |
| 7 | 17037925 | HEXAGON NUT M8X1,25 |
