GENEF85M.1R980

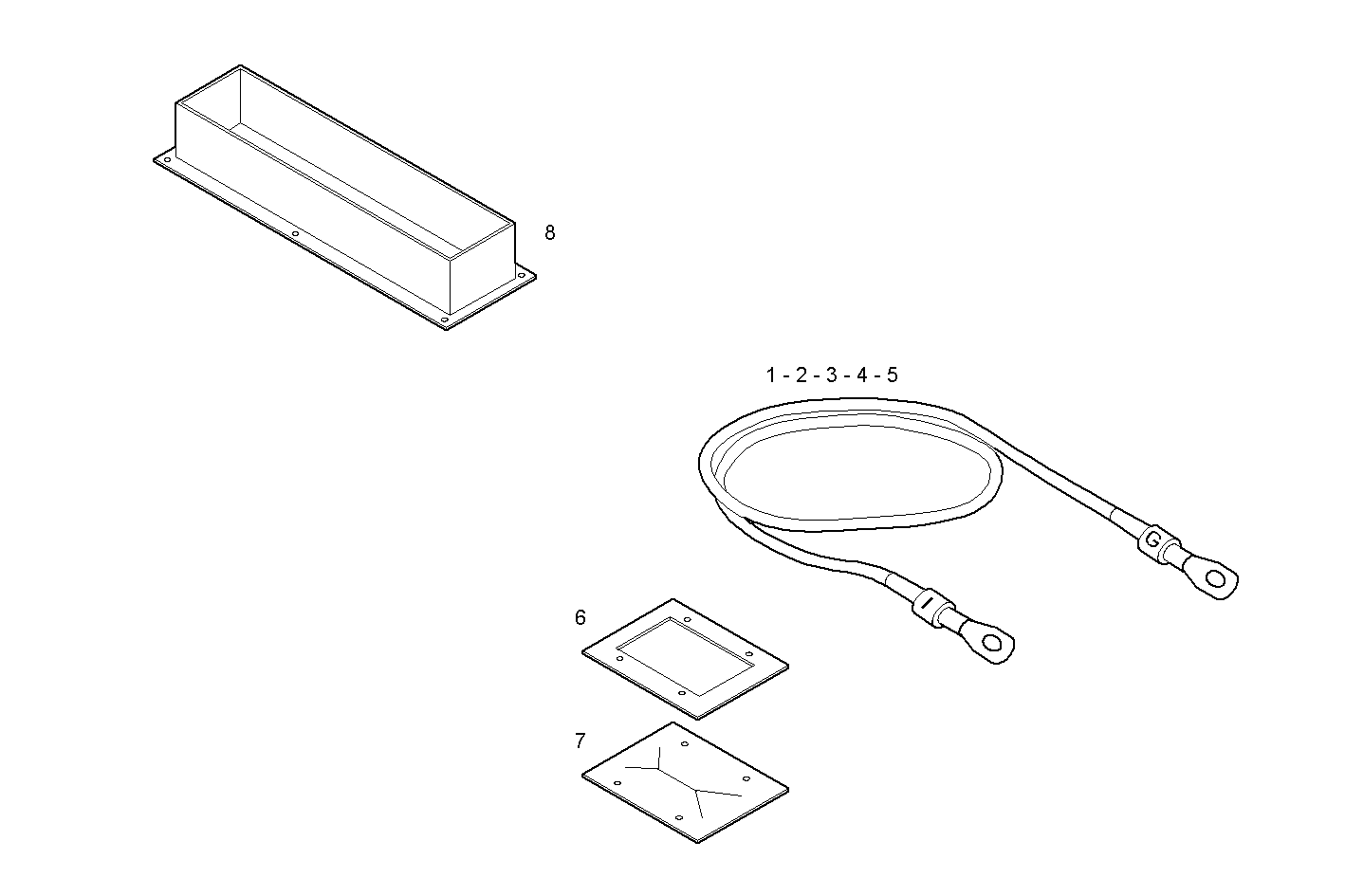

A62735016 POWER CABLES - for Mecc-Alte
| Item | Part number | Description |
|---|---|---|
| 1 | 503113242 | WIRE/CABLE L=1000 mm. - yellow/green - Ø 25mm. |
| 2 | 503113501 | WIRE/CABLE L=1000 mm.-black-Ø 50mm.-U-12/12 |
| 3 | 503113500 | WIRE/CABLE L=1000 mm.-black-Ø 50mm.-V-12/12 |
| 4 | 503113499 | WIRE/CABLE L=1000 mm.-black-Ø 50mm.-W-12/12 |
| 5 | 503113498 | WIRE/CABLE L=1000 mm.-black-Ø 50mm.-N-12/12 |
| 6 | 503111035 | COVER |
| 7 | 503111036 | GROMMET |
| 8 | 503112192 | PROTECTION |
