GEVECTOR650E.A500

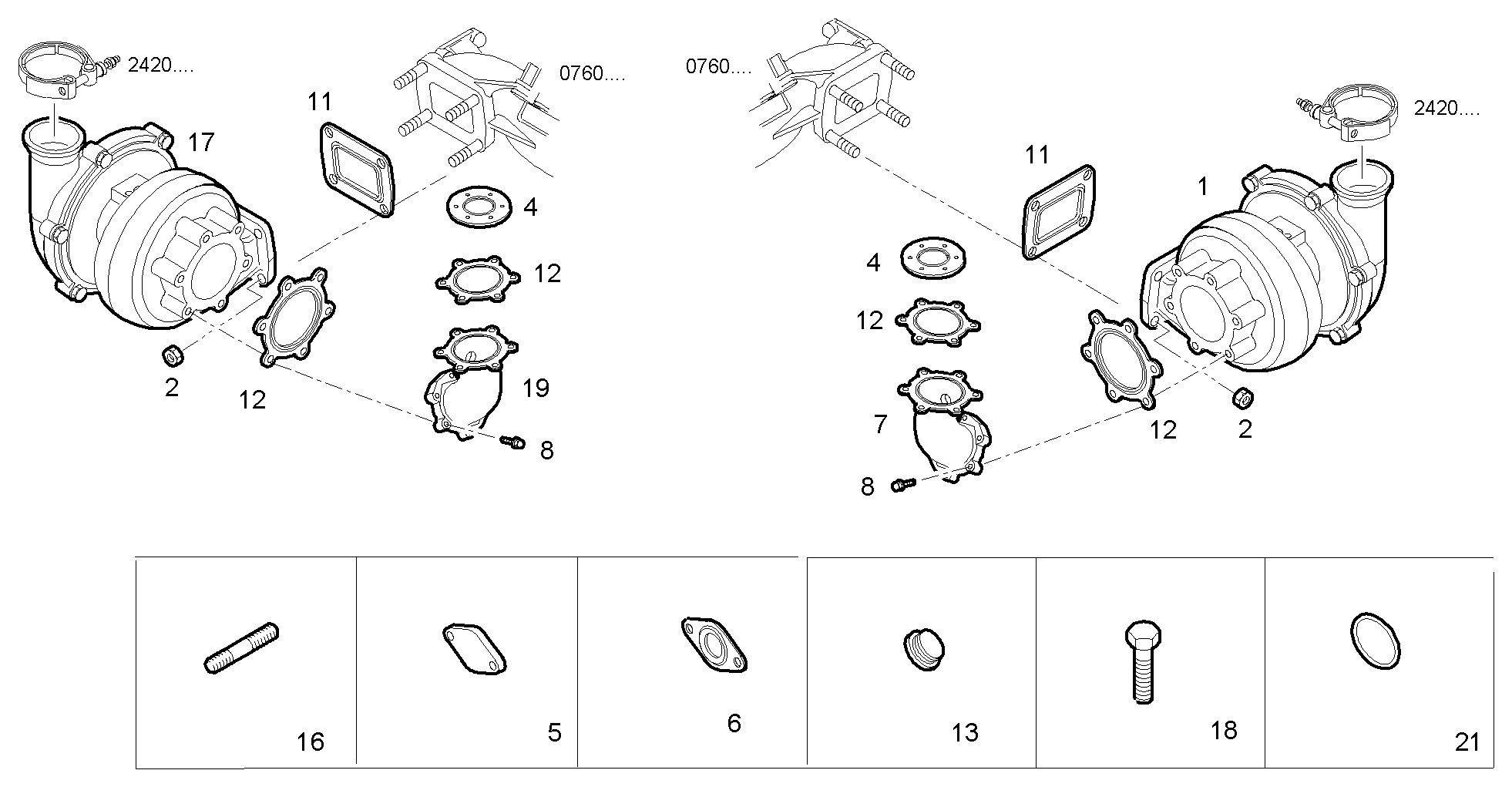

2400.241/01 TURBOCHARGER

Iveco/FPT TURBOCHARGER

Item Part number Description
1 504182614 TURBOCHARGER LEFT [FROM # 994]
1 504127023 TURBOCHARGER LEFT ASSY [UP TO # 993]
2 500300795 HEXAGON NUT M10X1,5
4 504135410 FLANGE
5 504094021 COVER
6 504054953 GASKET
7 504134949 EXHAUST ELBOW
8 99453959 SCREW
11 98451118 GASKET
12 500387050 GASKET
13 16992315 THREADED PLUG M14X1,5
16 16729434 STUD M8X25 MM
17 504182616 TURBOCHARGER RIGHT [FROM # 994]
17 504127024 TURBOCHARGER RIGHT ASSY [UP TO # 993]
18 16600277 HEXAGON BOLT M8X18 MM
19 504134953 EXHAUST PIPE
21 99489018 SEAL GASKET Ø14X22 MM SP=1,5 MM
