GEVECTOR650E.A500

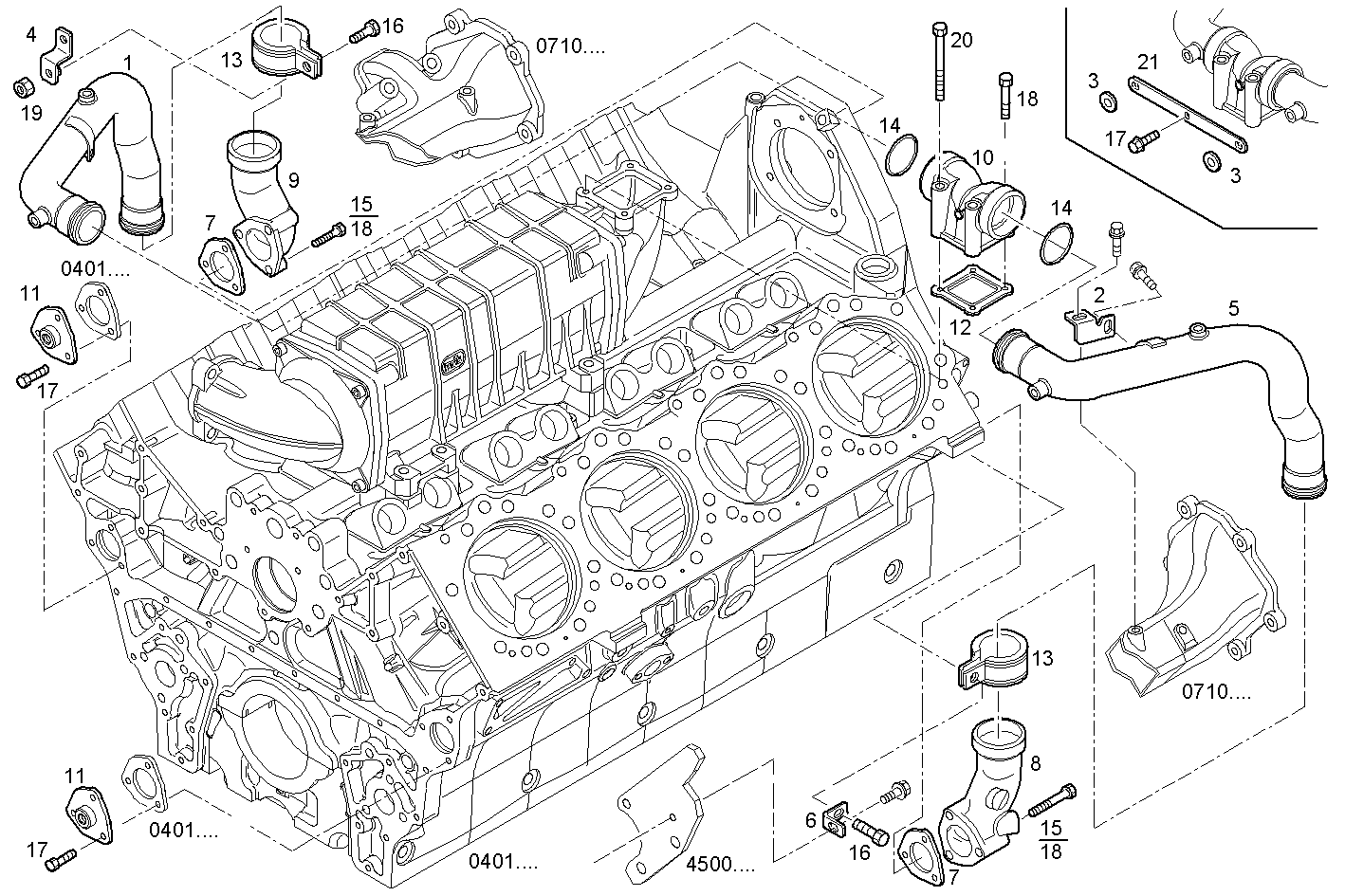

3210.315 WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 504060176 | WATER PIPE |
| 2 | 504071585 | SUPPORT |
| 3 | 7302112 | SPACER SP=7 MM |
| 4 | 504063276 | SUPPORT |
| 5 | 504060175 | WATER PIPE |
| 6 | 504063139 | SUPPORT |
| 7 | 504045914 | FLAT ENGINE GASKET |
| 8 | 504138852 | WATER PIPE |
| 9 | 504138853 | WATER PIPE |
| 10 | 504063275 | WATER PIPE |
| 11 | 504057355 | COVER |
| 12 | 504063703 | FLAT ENGINE GASKET |
| 13 | 504104164 | CLIP |
| 14 | 14471181 | O-RING Ø46,99x5,33 MM |
| 15 | 16592424 | HEXAGON BOLT M8X65 MM |
| 16 | 16673835 | HEXAGON BOLT M8X30 MM |
| 17 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
| 18 | 16586725 | HEXAGON BOLT M8X1.25X40 MM |
| 19 | 17964125 | HEXAGON NUT M8 |
| 20 | 16598224 | HEXAGON BOLT M8X90 MM |
| 21 | 504074924 | FLANGE |
