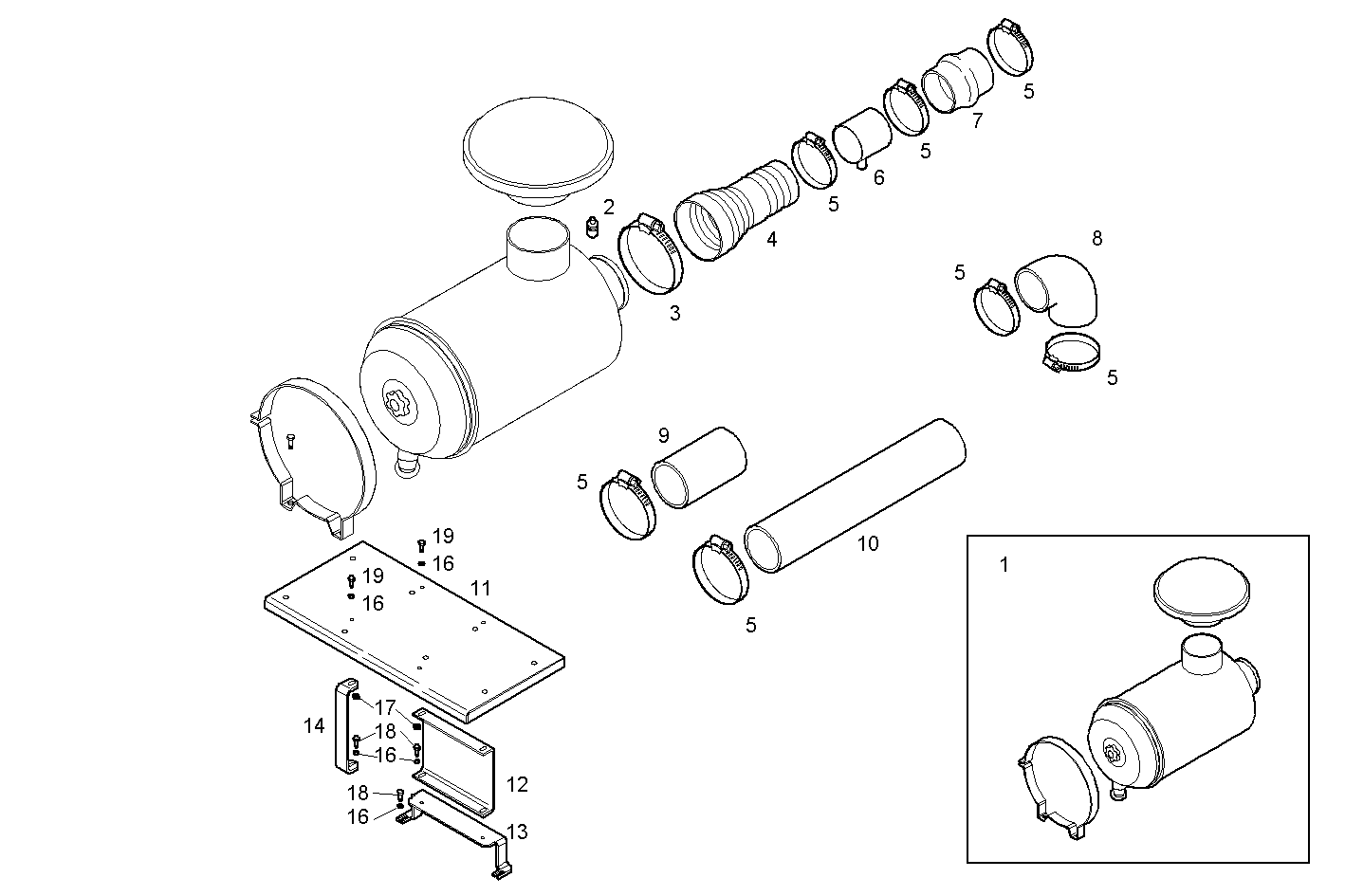

| Item |
Part number |
Description |
|
1 |
8034707 |
AIR CLEANER OPT. |
|
2 |
8027294 |
CHOCKED FILTER INDIC. MECHANICAL |
|
3 |
17765991 |
CLIP |
|
4 |
8018132 |
FILTER HOSE |
|
5 |
17765494 |
CLIP dia. = 100/120 |
|
6 |
8019586 |
AIR PIPE/DUCT LEFT |
|
7 |
504182694 |
PIPE |
|
8 |
8027214 |
RUBBER SLEEVE |
|
9 |
504182692 |
RUBBER SLEEVE L = 200 mm. |
|
10 |
504182693 |
HOSE L = 635 mm. |
|
11 |
504171751 |
FILTER SUPPORT |
|
12 |
504171744 |
FILTER SUPPORT |
|
13 |
504171743 |
FILTER SUPPORT |
|
14 |
504171745 |
FILTER SUPPORT |
|
15 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
16 |
17089574 |
WASHER Ø8X16 MM |
|
17 |
17152821 |
NUT M8 [up to 555939] |
|
18 |
16605424 |
SCREW M8X16 MM (8.8) |
|
19 |
16605524 |
HEXAGON BOLT M8X20 MM |
