GEVECTOR650E.A500

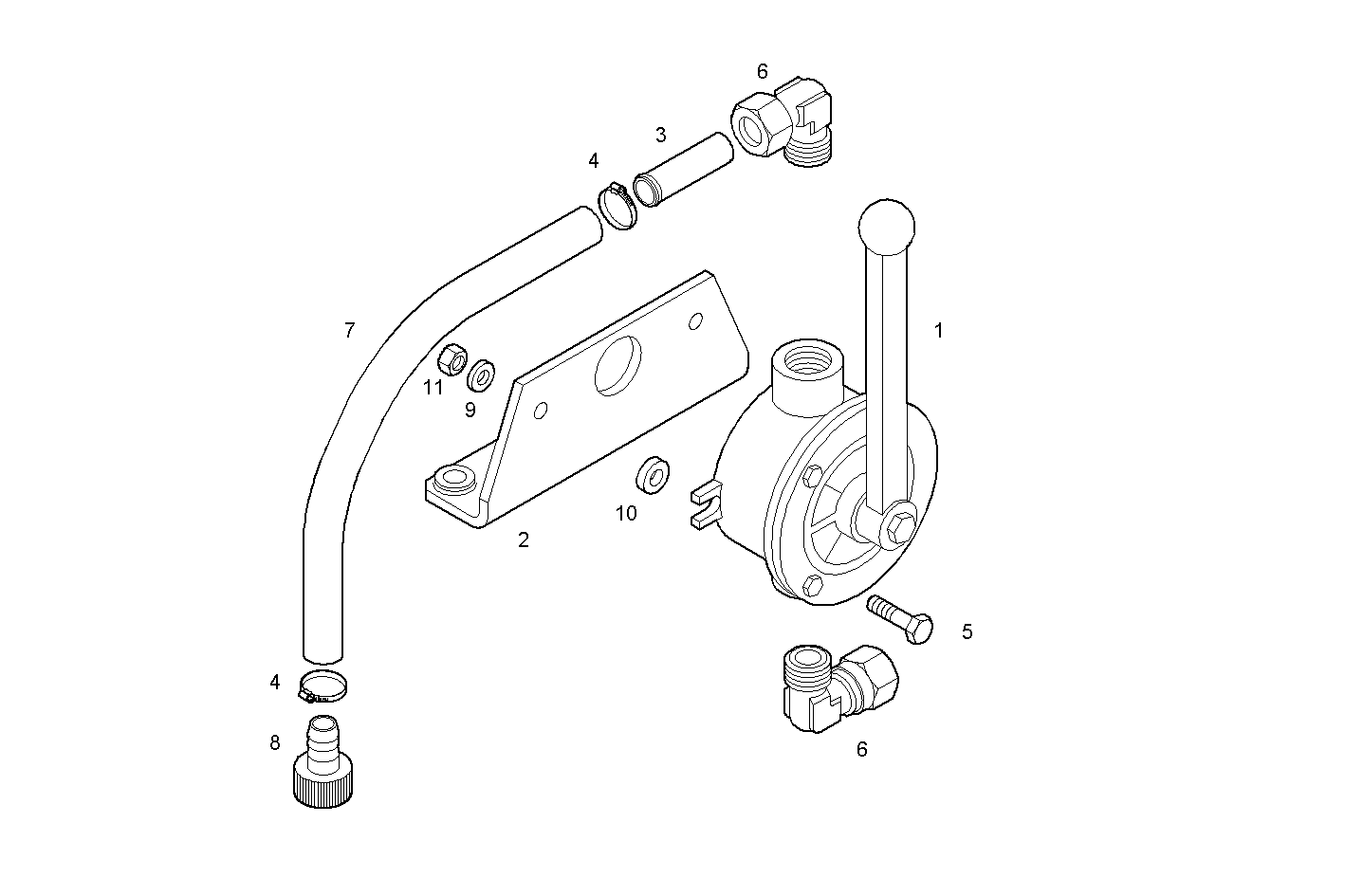

A49915000 OIL OUTLET PUMP

Iveco/FPT OIL OUTLET PUMP

Item Part number Description
1 8012424 MAR. ENG. SUCTION PUMP
2 8110727 RETAINER
3 8104754 OIL LINE
4 18088392 CLIP Ø16/25 MM
5 16605824 HEXAGON BOLT M8X35 MM
6 8111456 PIPE SOCKET
7 8024459 OIL HOSE
8 503113365 PIPE SOCKET
9 17089574 WASHER Ø8X16 MM
10 17816014 SPACING BAR Ø8,5X18X5 MM
11 17037925 HEXAGON NUT M8X1,25
