GMNEF115M.A511

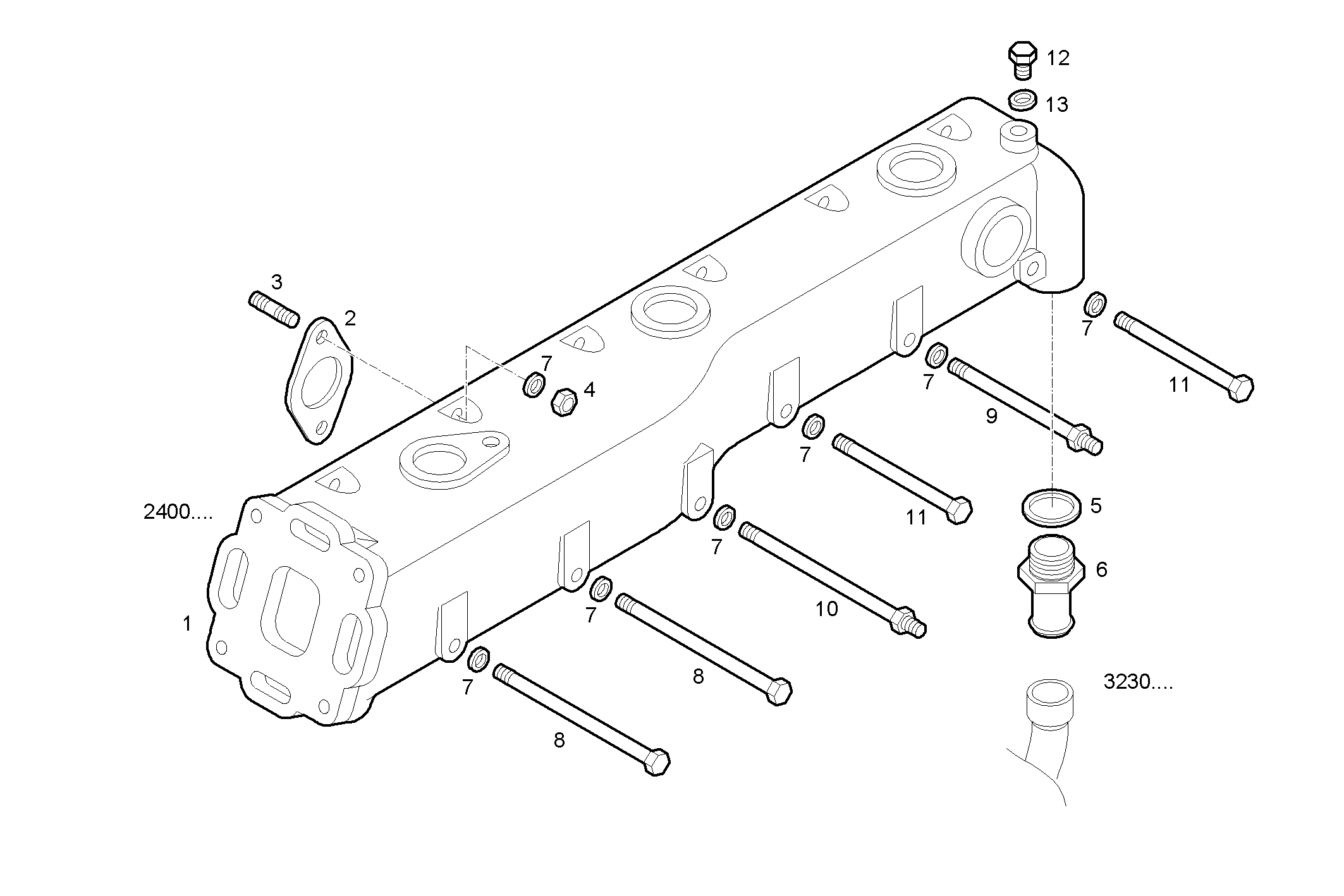

0780.052 EXHAUST MANIFOLD

Iveco/FPT EXHAUST MANIFOLD

Item Part number Description
1 8036091 COOLED EXHAUST MANIF.
2 2830445 EXH. MANIFOLD GKT
3 16731334 STUD M10X30
4 17042631 NUT M10X1,5 (10)
5 99434480 SEAL GASKET Ø30X40 MM
6 8024797 PIPE SOCKET M30X1,5
7 17090174 SPRING WASHER Ø10X20 MM
8 16629234 SCREW M10X1,5X150
9 8032233 SCREW M8X1,25 L=145
10 8032643 SCREW M8X1,25 L=175
11 16628934 SCREW M10X120MM
12 16992211 THREADED PLUG M12X1,5
13 4858607 WASHER Ø12X17 MM SP=1,5 MM
