GMNEF60M.A511

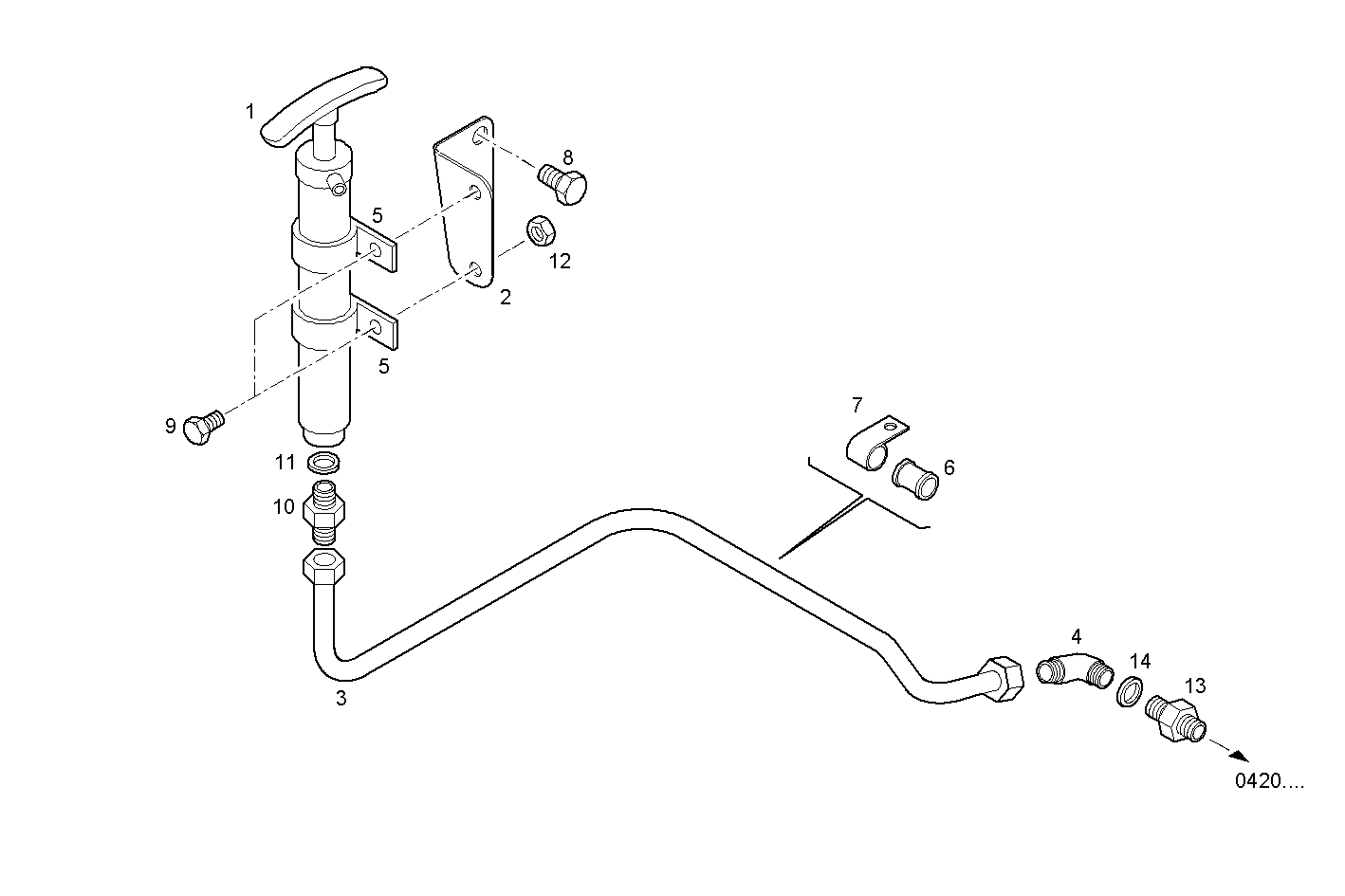

5510.010 OIL OUTLET PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8019921 | HAND PUMP |
| 2 | 503114940 | FASTENING BRACKET |
| 3 | 503114946 | OIL LINE |
| 4 | 11219711 | ELBOW COUPLING |
| 5 | 8038555 | FASTENING BRACKET |
| 6 | 4755964 | RUBBER PAD |
| 7 | 4755963 | FASTENING BRACKET |
| 8 | 16588025 | HEXAGON BOLT M12X30 MM |
| 9 | 16673635 | HEXAGON BOLT M8X1.25X20 |
| 10 | 504081274 | THREADED UNION M16X1,5 - M18X1,5 |
| 11 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 12 | 17044725 | HEXAGON NUT M8 |
| 13 | 4919578 | PIPE SOCKET M22X1,5/M16X1,5 |
| 14 | 16508460 | WASHER 22x27x1,5 |
