GMNEF60M.A511

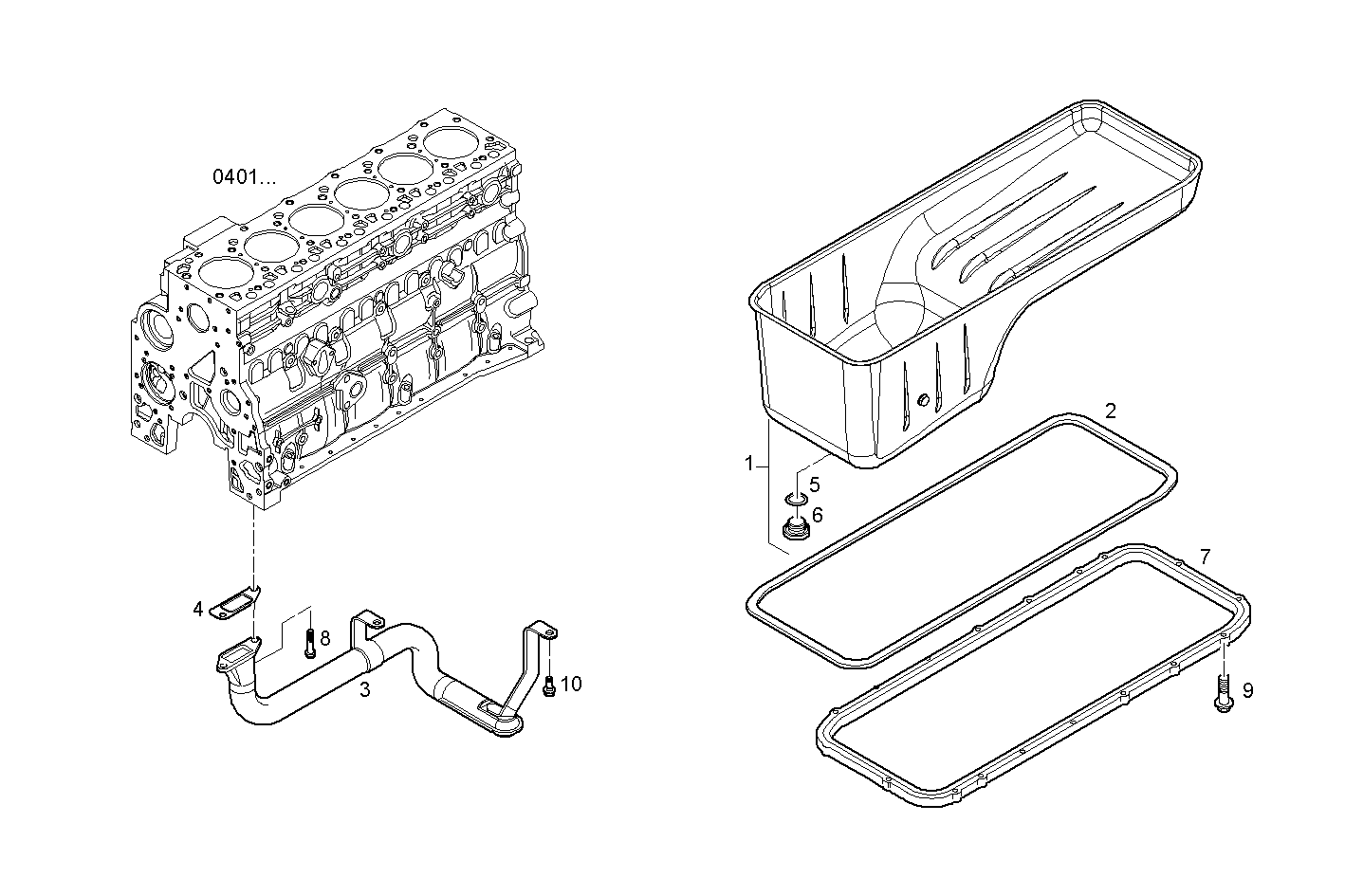

A01100501 OIL SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 503115473 | OIL SUMP |
| 2 | 4897861 | OIL SUMP GASKET |
| 3 | 504084493 | SUCTION STRAINER |
| 4 | 4898301 | FLAT ENGINE GASKET |
| 5 | 2830546 | WASHER |
| 6 | 4895577 | PLUG |
| 7 | 4897858 | SPACING BAR |
| 8 | 16673635 | HEXAGON BOLT M8X1.25X20 |
| 9 | 4899091 | HEXAGON BOLT |
| 10 | 4895291 | HEXAGON BOLT M10X1,5X20 MM |
