GMNEF60M.A511

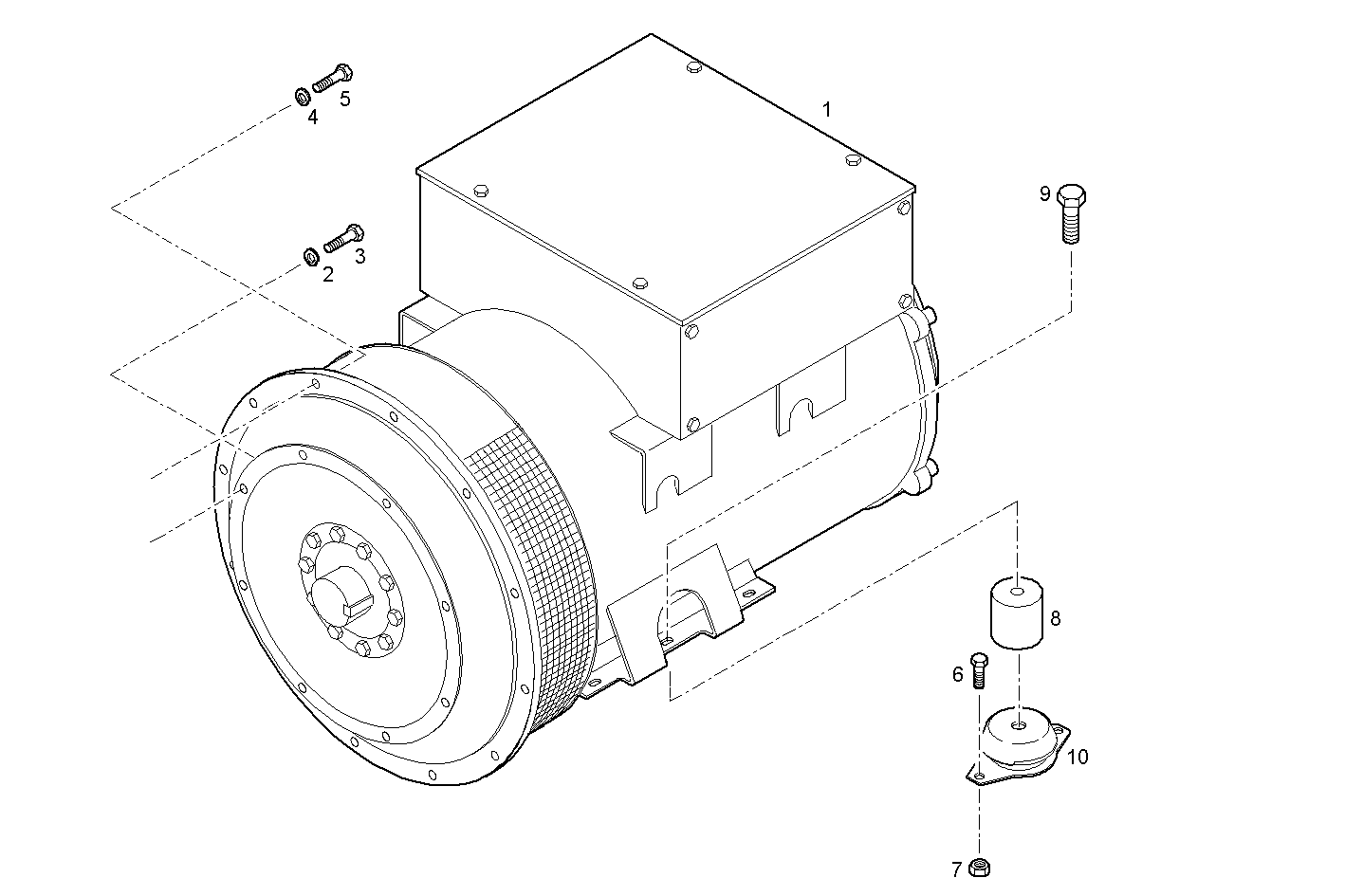

A37215027 ELECTRIC MACHINE
| Item | Part number | Description |
|---|---|---|
| 1 | 503115023 | ELECTRIC MACHINE |
| 2 | 17090174 | SPRING WASHER Ø10X20 MM |
| 3 | 16607825 | HEXAGON BOLT M10X35 MM |
| 4 | 17494934 | WASHER Ø10X18,1X2,2 MM |
| 5 | 16619124 | SCREW M10X22 MM |
| 6 | 16677735 | HEXAGON BOLT M12X25 MM |
| 7 | 17044921 | HEXAGON NUT M12 |
| 8 | 8109135 | SPACING BAR |
| 9 | 16682935 | HEXAGON BOLT M16X60 MM |
| 10 | 503112691 | RUBBER LUG |
