GMNEF60M.L50E

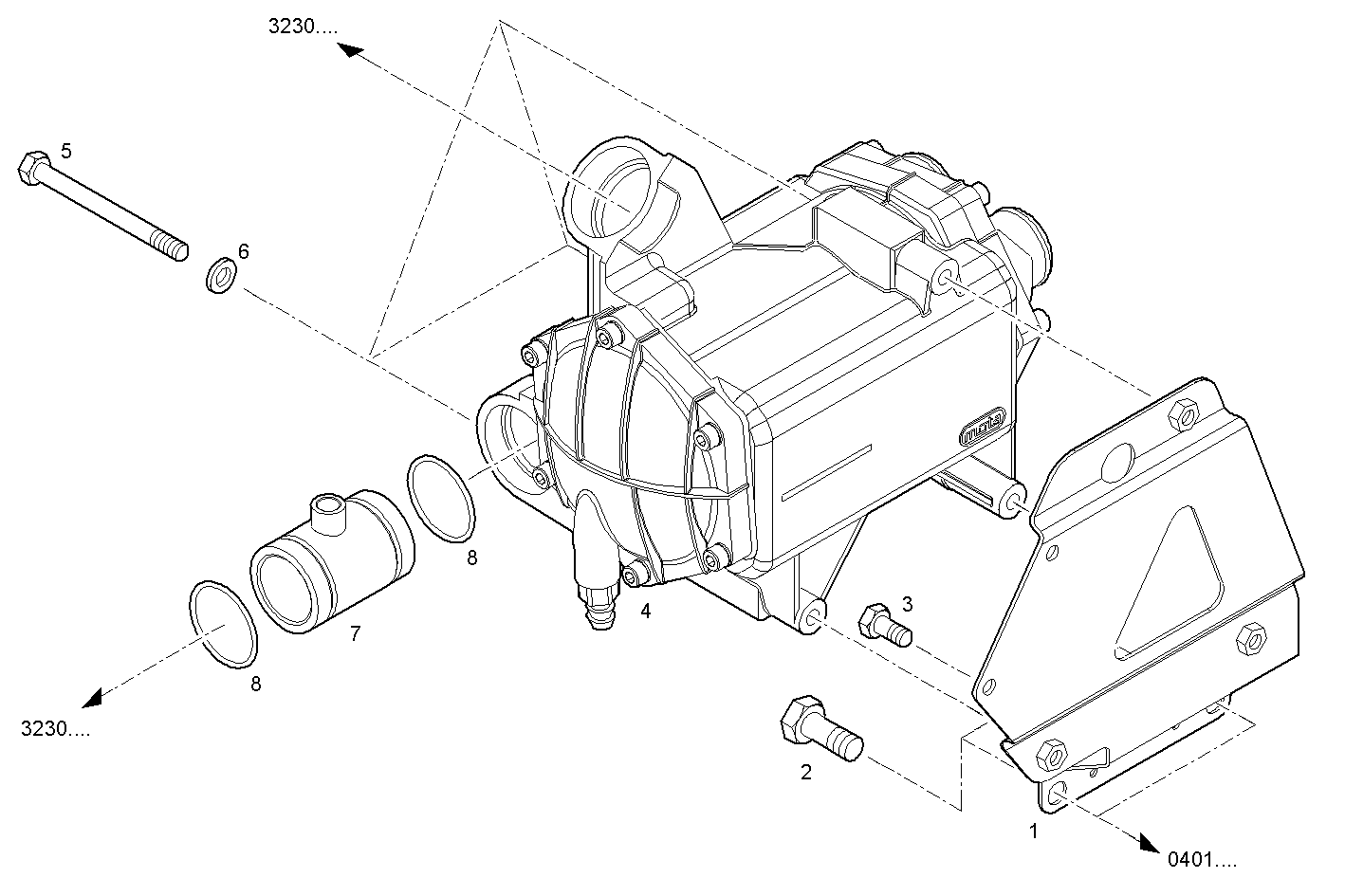

3370.000 FRESH WATER - SEA WATER HEAT EXCHANGER [FROM 08/01/09] [FROM 08/01/09]
| Item | Part number | Description |
|---|---|---|
| 1 | 8040642 | SUPPORT |
| 2 | 16677735 | HEXAGON BOLT M12X25 MM |
| 3 | 16600224 | HEXAGON BOLT M8X1,25X18 MM |
| 4 | 8048089 | WATER/SEA WATER HEAT EXCH |
| 5 | 16045424 | SCREW M8X110 MM |
| 6 | 17094914 | WASHER 8x16 |
| 7 | 8018308 | CONNECTOR SLEEVE |
| 8 | 17289681 | O-RING Ø44 MM SP=3,53 MM |
