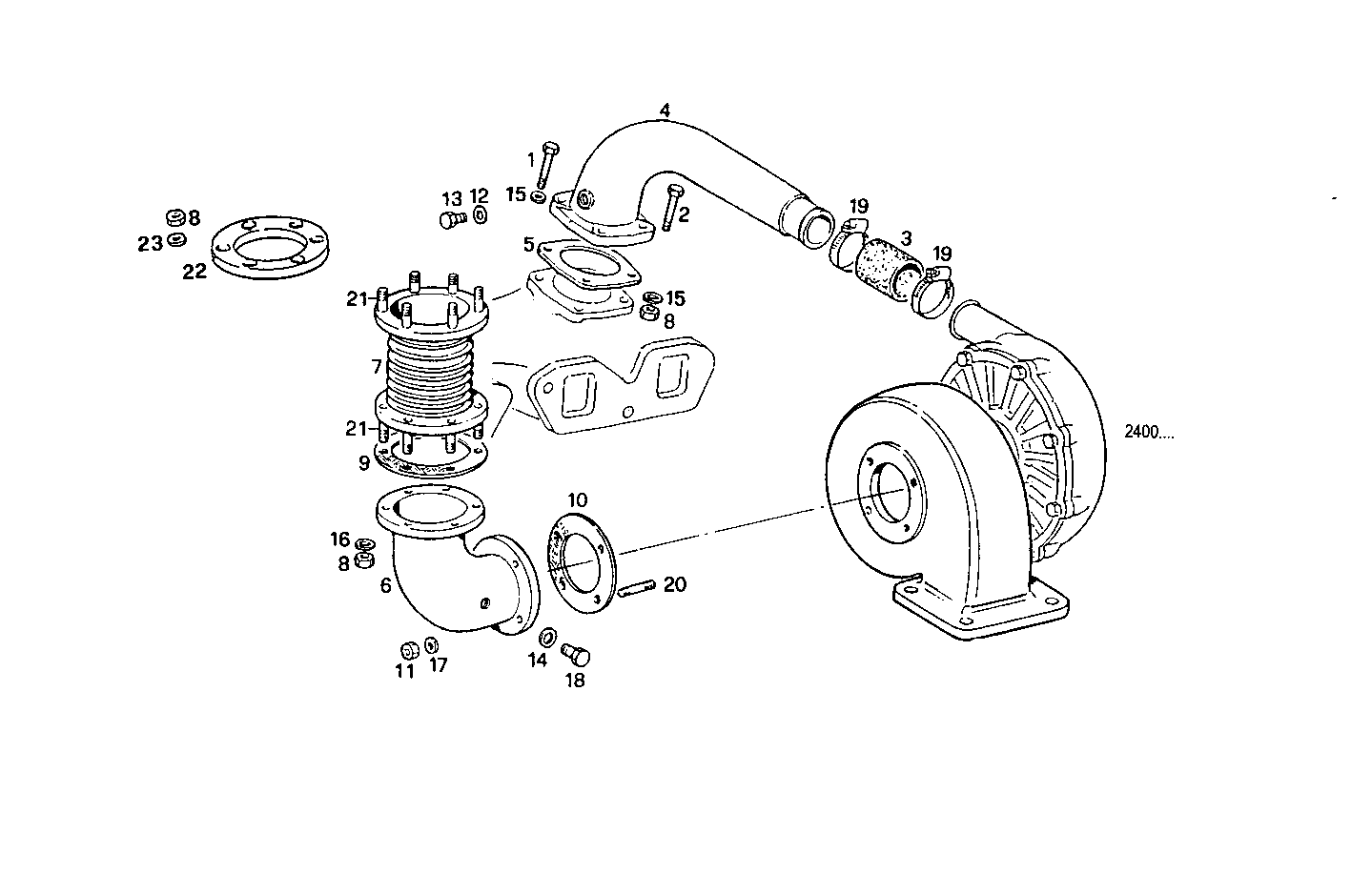

| Item |
Part number |
Description |
|
1 |
16605734 |
HEXAGON BOLT M8X30 MM |
|
2 |
16605924 |
SCREW M8X40 MM |
|
3 |
98448211 |
TURBOCHARGER HOSE M16X55 MM |
|
4 |
4754495 |
INTAKE ELBOW |
|
5 |
98400790 |
FLAT ENGINE GASKET |
|
6 |
8105001 |
EXHAUST ELBOW |
|
7 |
4935378 |
EXHAUST BELLOWS |
|
8 |
17037931 |
HEXAGON NUT M8X1,25 |
|
9 |
8009606 |
GASKET |
|
10 |
4734747 |
GASKET |
|
11 |
17038121 |
HEXAGON NUT M10 |
|
12 |
16508460 |
WASHER 22x27x1,5 |
|
13 |
16992611 |
THREADED PLUG M22X1,5 |
|
14 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
15 |
17094914 |
WASHER 8x16 |
|
16 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
17 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
18 |
16992211 |
THREADED PLUG M12X1,5 |
|
19 |
4788416 |
CLIP |
|
20 |
16731224 |
STUD M10X25 MM |
|
21 |
13516921 |
STUD M8X12X22 MM |
|
22 |
4919183 |
FLANGE |
|
23 |
16665514 |
WASHER Ø8 MM |
