GS8210SRi26.02

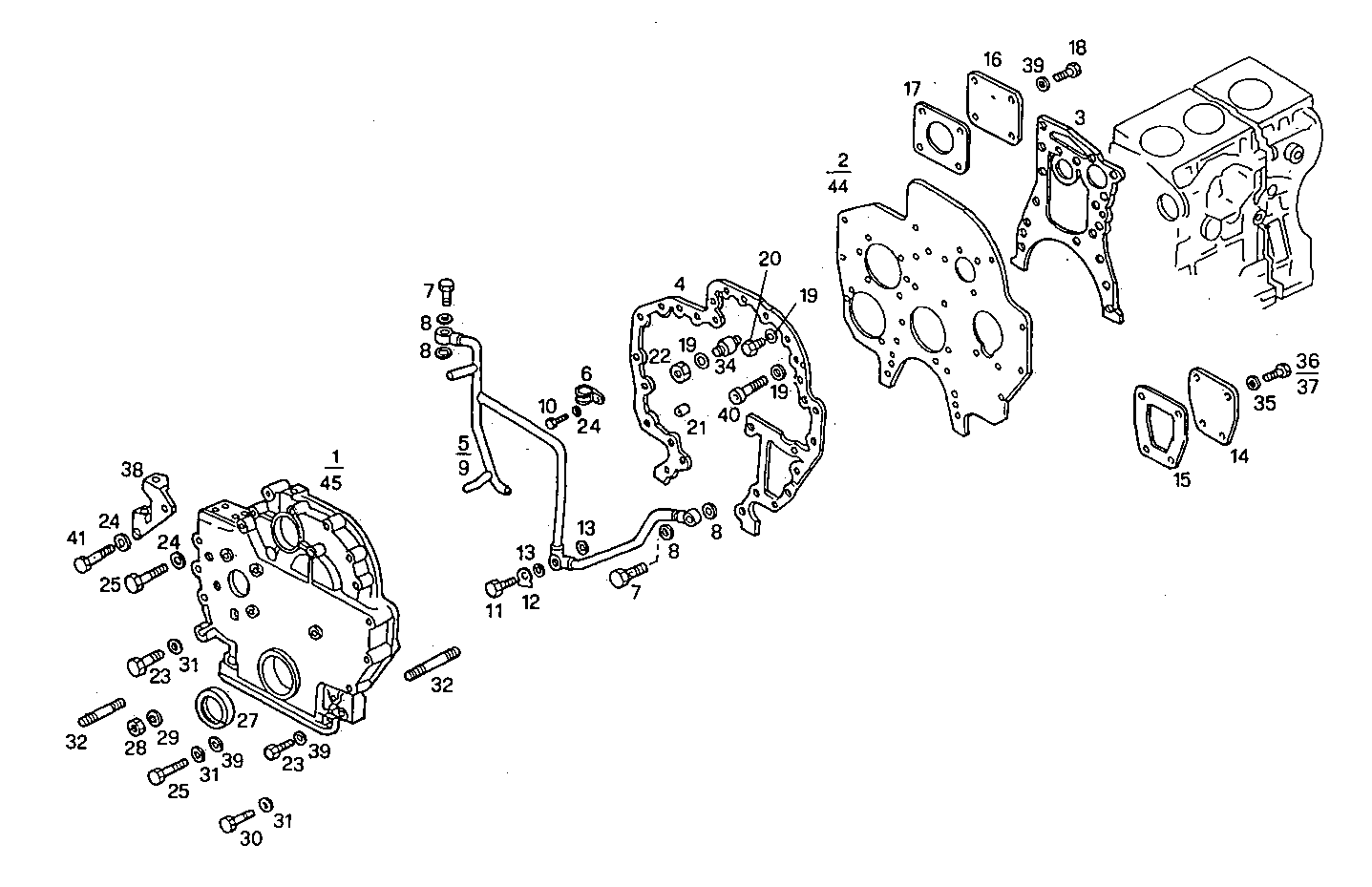

0430.043/01 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 98420717 FRONT C.CASE COVER ASSY [up to ...]
2 98430318 PLATE [from ...]
3 99431449 FLAT ENGINE GASKET
4 98431737 FLAT ENGINE GASKET [from ...]
5 4842376 HYDRAULIC LINE [up to 419249]
6 4656139 FASTENING BRACKET
7 4707984 SCREW CONNECTOR
8 10262760 SEAL GASKET Ø8,2 MM
9 500302886 HYDRAULIC LINE [from 419250]
10 16042921 SCREW M8X10
11 4679620 SCREW CONNECTOR
12 852409 LOCKING PLATE Ø10,5 MM
13 4858606 GASKET Ø10X14X1 MM
14 4687341 COVER
15 4864032 FLAT ENGINE GASKET
16 4773932 COVER REAR
17 98424208 GASKET
18 15970624 HEXAGON BOLT M12X1,25X22 MM
19 17090274 WASHER Ø10X20 MM
20 15970730 HEXAGON BOLT M10X25 MM
21 10837810 DOWEL PIN Ø12 MM
22 17038221 HEXAGON NUT M10
23 16606424 HEXAGON BOLT M8X65 MM
24 17094914 WASHER 8x16
25 16045124 HEXAGON BOLT M8X95
27 98467211 WASHER FRONT
28 17038521 HEXAGON NUT M12X1,5
29 12646904 WASHER
30 15971724 HEXAGON BOLT M10X1,25X95 MM
31 17095104 WASHER Ø10X21X2 MM
32 13453721 STUD M10X25X30
34 13449330 STUD M10X15X20 MM
35 17090174 SPRING WASHER Ø10X20 MM
36 15970924 HEXAGON BOLT M10X1,25X35 MM
37 15970524 HEXAGON BOLT M10X1,25X20
38 4805220 PLATE
39 11190174 WASHER
40 14307430 SOCKET-HEAD SCREW M10X1,25X25 MM
41 16606524 HEXAGON BOLT M8X70 MM
44 500309877 PLATE [from 259963]
45 98430321 FRONT C.CASE COVER ASSY [from ...]
