GS8210SRi26.02

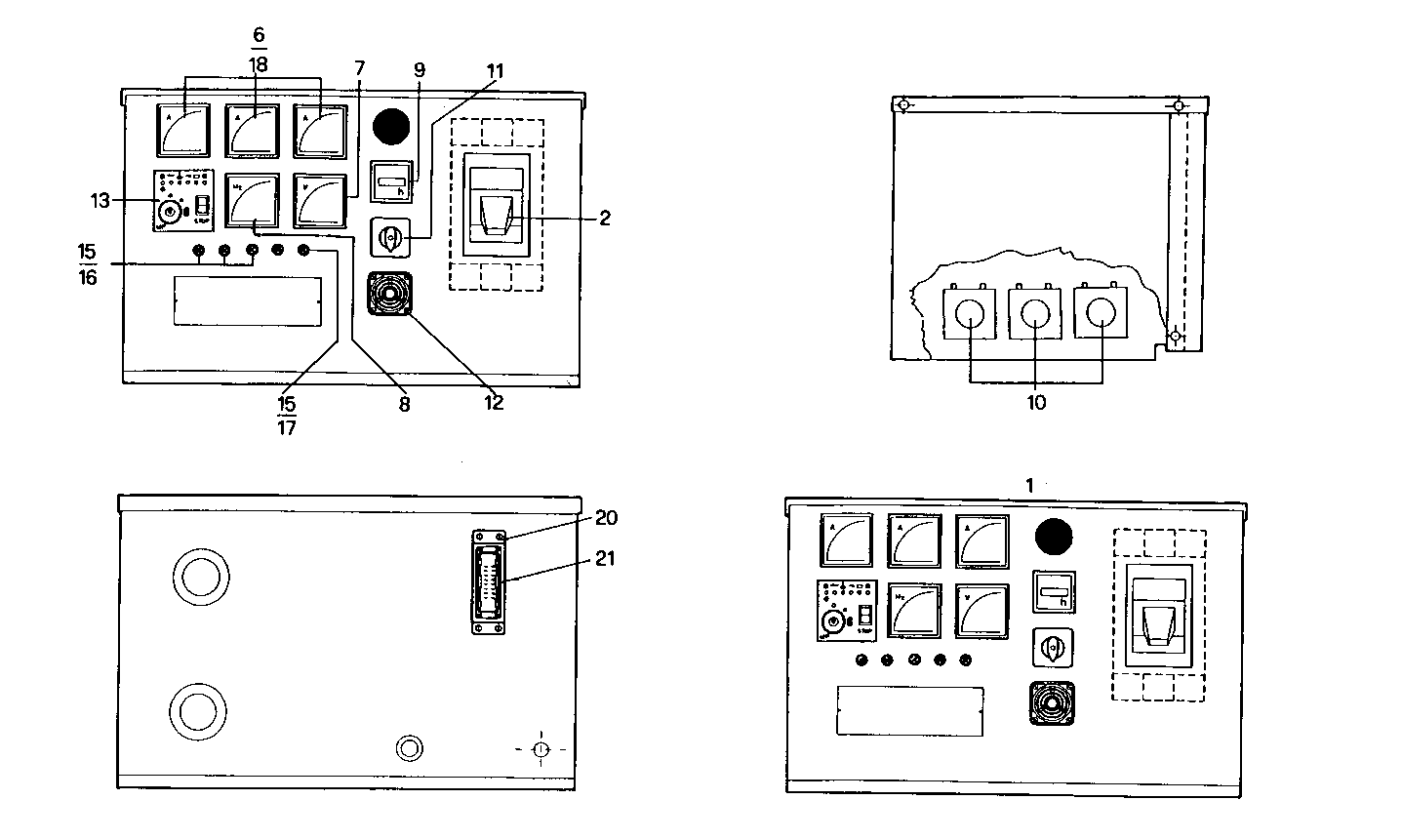

A60000935 MANUAL CONTROL BOARD [D 12-1996] [from12-1996]
| Item | Part number | Description |
|---|---|---|
| 1 | 8093158 | CONTROL BOARD ASSY ASSY |
| 2 | 8093278 | SWITCH |
| 6 | 8093259 | AMMETER |
| 7 | 8100665 | VOLTMETER |
| 8 | 8100632 | FREQUENCYMETER |
| 9 | 8090251 | HOURMETER |
| 10 | 8093279 | TRANSFORMATOR |
| 11 | 8104624 | SWITCH |
| 12 | 8107950 | ACOUSTIC HORN |
| 13 | 8092692 | ELECTR.CONTR.UNIT |
| 15 | 8105267 | FUSE BOX 2A |
| 16 | 8105268 | FUSE 2A |
| 17 | 8092812 | FUSE 20 A |
| 18 | 8093277 | STOP PLATE |
| 20 | 8092799 | CONNECTION |
| 21 | 8092809 | CONNECTION |
