GS8210SRi26.02A602

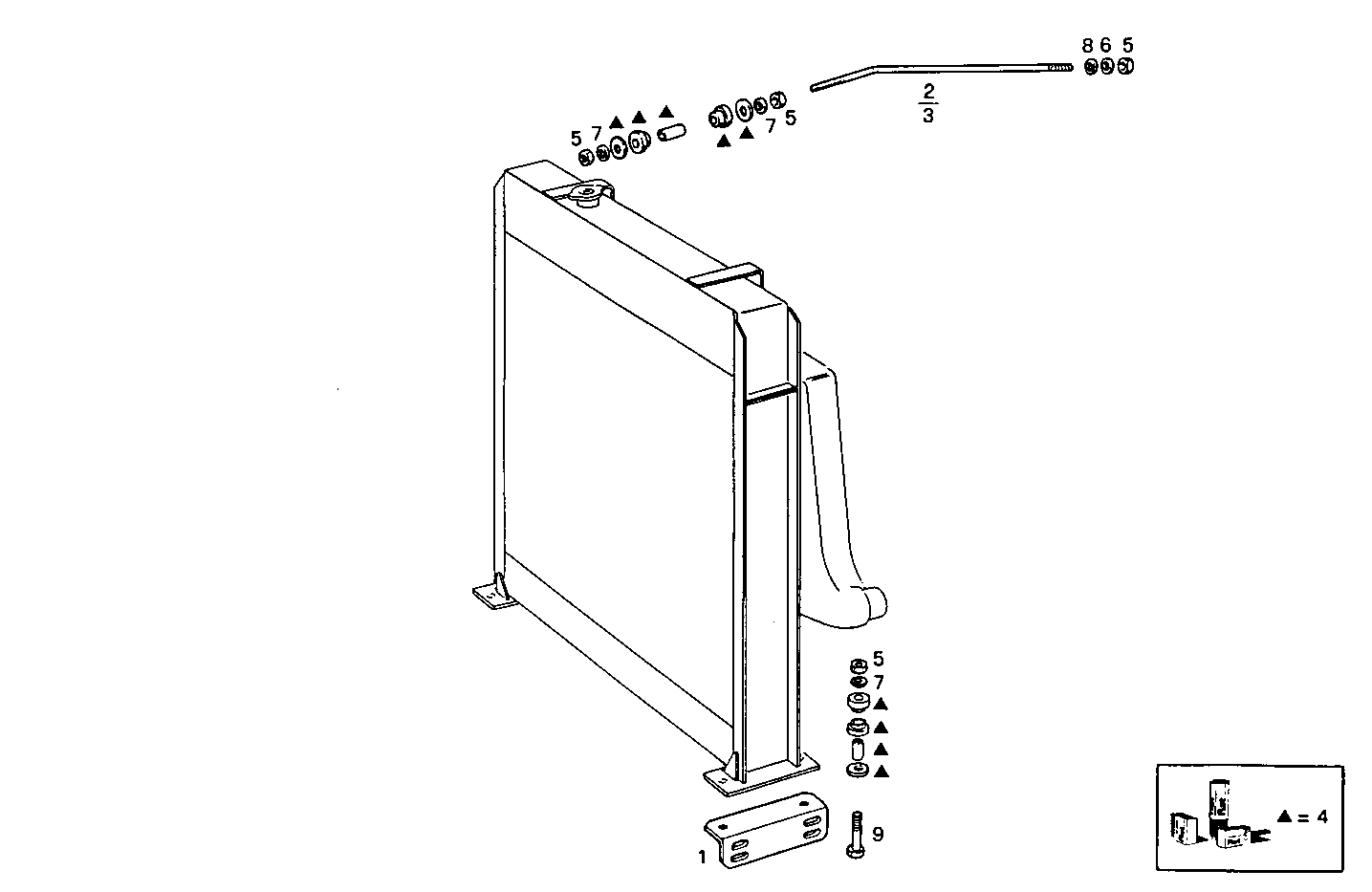

3300.008/02 RADIATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 8112550 | SUPPORT |
| 2 | 8005090 | TIE ROD RIGHT |
| 3 | 8005091 | TIE ROD LEFT |
| 4 | 8090341 | KIT-RADIATOR A.S. COMPLETE |
| 5 | 17038621 | NUT M12 |
| 6 | 17091074 | WASHER Ø12X24X2,8 MM |
| 7 | 17091374 | SPRING WASHER Ø12X30X3,0 MM |
| 8 | 17095304 | WASHER Ø12X24 MM |
| 9 | 15541321 | HEXAGON BOLT M12X1,25X75 MM |
