GS8210SRi26.02A602

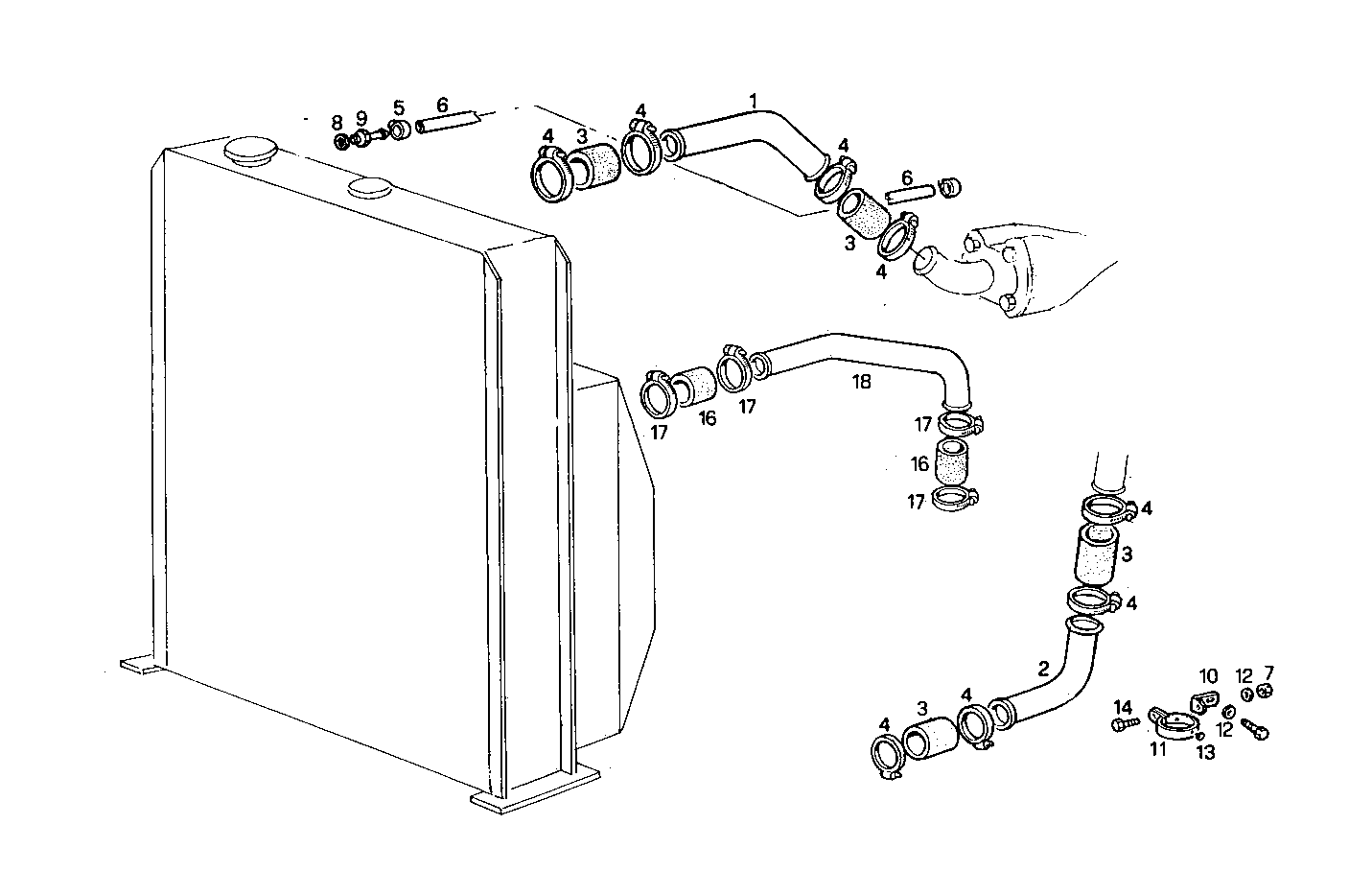

3300.008/03 RADIATOR
| Item |
Part number |
Description |
|
1 |
8005093 |
WATER PIPE |
|
2 |
8005092 |
WATER PIPE |
|
3 |
17745887 |
RUBBER SLEEVE WATER |
|
4 |
4830091 |
CLIP |
|
5 |
18087991 |
CLIP Ø8/16 MM |
|
6 |
19056687 |
RUBBER HOSE Ø7,5 MM |
|
7 |
17038221 |
HEXAGON NUT M10 |
|
8 |
4858606 |
GASKET Ø10X14X1 MM |
|
9 |
4935134 |
OIL LINE |
|
10 |
8108989 |
RETAINER |
|
11 |
4936328 |
CLIP ASSY |
|
12 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
13 |
4565875 |
RUBBER PAD |
|
14 |
11306921 |
SCREW M10X1,25X30 |
|
15 |
15971821 |
SCREW M10X1,25X100 |
|
16 |
4787290 |
WATER HOSE |
|
17 |
17764792 |
HOSE CLIP Ø32-50 MM |
|
18 |
8005094 |
WATER PIPE |
