GS8281SRi26.01A602

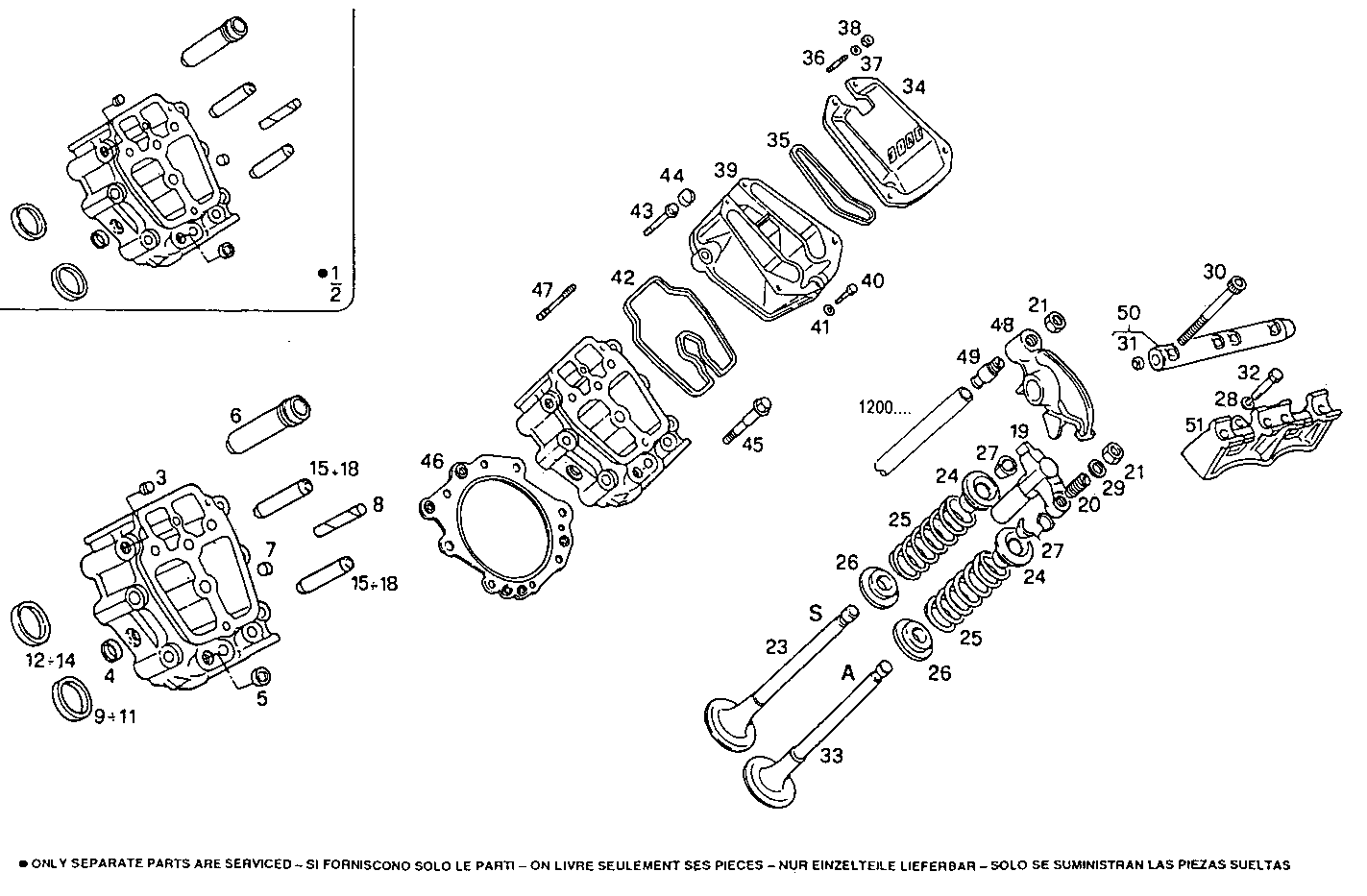

0600.037 CYLINDER HEAD

Iveco/FPT CYLINDER HEAD

Item Part number Description
1 4842027 CYLINDER HEAD ASSY [up to 114541]
2 98481943 CYLINDER HEAD ASSY [from 114542]
3 14326101 THREADED PLUG M8X1,25
4 14282370 LOCK PLUG Ø25 MM
5 14282170 LOCK PLUG Ø20 MM
6 4838622 NOZZLE HOLDER SEAT
7 14281970 LOCK PLUG Ø12 MM
8 4680389 GUIDE ROD
9 98481933 VALVE SEAT STD. INTAKE
10 98481938 VALVE SEAT +0.51 INTAKE
11 98481940 VALVE SEAT +0.05 INTAKE
12 4818203 VALVE SEAT STD. EXHAUST
13 98415735 VALVE SEAT +0.20 EXHAUST
14 98415736 VALVE SEAT +0.05 EXHAUST
15 4672515 VALVE GUIDE
16 4694449 VALVE GUIDE +0.04
17 4694450 VALVE GUIDE +0,2
18 4694451 VALVE GUIDE +0.24
19 4717389 SUPPORT ASSY
20 98470657 ROCKER ARM SCREW
21 98470656 ADJUSTING NUT
23 99456434 EXHAUST VALVE
24 4675983 SPRING CAP TOP
25 4752607 ENGINE VALV.SPRING
26 98458427 SPRING CAP BOTTOM
27 14196370 VALVE CONE Ø9,82 MM
28 17089574 WASHER Ø8X16 MM
29 13397376 CIRCLIP Ø8 MM
30 14308430 CYLIND-HEAD SCREW M10X80 MM
31 14328101 LOCK PLUG Ø8 MM
32 16605734 HEXAGON BOLT M8X30 MM
33 99457452 INLET VALVE CIVA
34 98481107 COVER
35 98481106 HEAD COVER GASKET
36 13543321 STUD M8X16X20 MM
37 13550301 WASHER Ø8,15 MM
38 17037931 HEXAGON NUT M8X1,25
39 98481108 CYL. HEAD COVER
40 16606224 HEXAGON BOLT M8X55 MM
41 12647101 WASHER Ø8X20 MM
42 98481105 HEAD COVER GASKET
43 4696012 HEXAGON BOLT
44 4696013 CAP
45 4802718 CYL.HEAD STUD
46 1905795 CYL.HEAD GASKET SP=1,2 MM
47 4825411 STUD M10X1,25X15X72
48 4727425 ROCKER ARM
49 98470655 ROCKER ARM SCREW
50 4705317 ROCKER SHAFT ASSY
51 4710783 ROCKER BRACKET
