GS8281SRi26.01A652

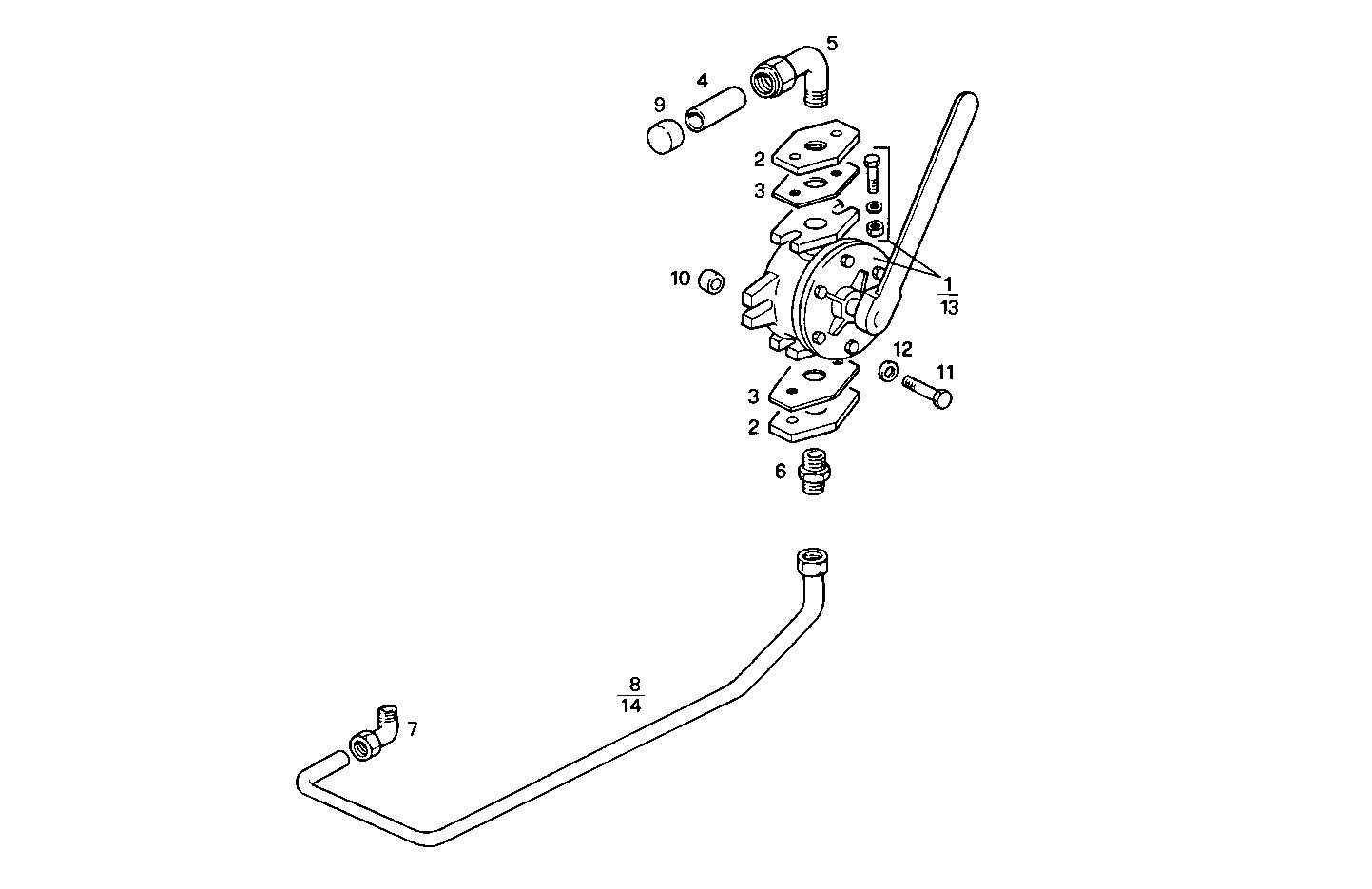

A49010019 OIL DRAIN PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8012424 | MAR. ENG. SUCTION PUMP |
| 2 | 8103585 | FLANGE |
| 3 | 8105075 | GASKET |
| 4 | 8104754 | OIL LINE |
| 5 | 8111456 | PIPE SOCKET |
| 6 | 8005782 | PIPE SOCKET |
| 7 | 8111454 | PIPE SOCKET M22X1,5 |
| 8 | 8012666 | OIL LINE [from 03-92] |
| 9 | 93013662 | PLUG |
| 10 | 4932695 | WASHER |
| 11 | 16043821 | HEXAGON BOLT M8X30 MM |
| 12 | 17089771 | WASHER Ø8X22X1,5 MM |
| 13 | 8103366 | HAND PUMP [up to 05-93] |
| 14 | 8008478 | OIL LINE [up to 03-92] |
