GS8281SRi26.02

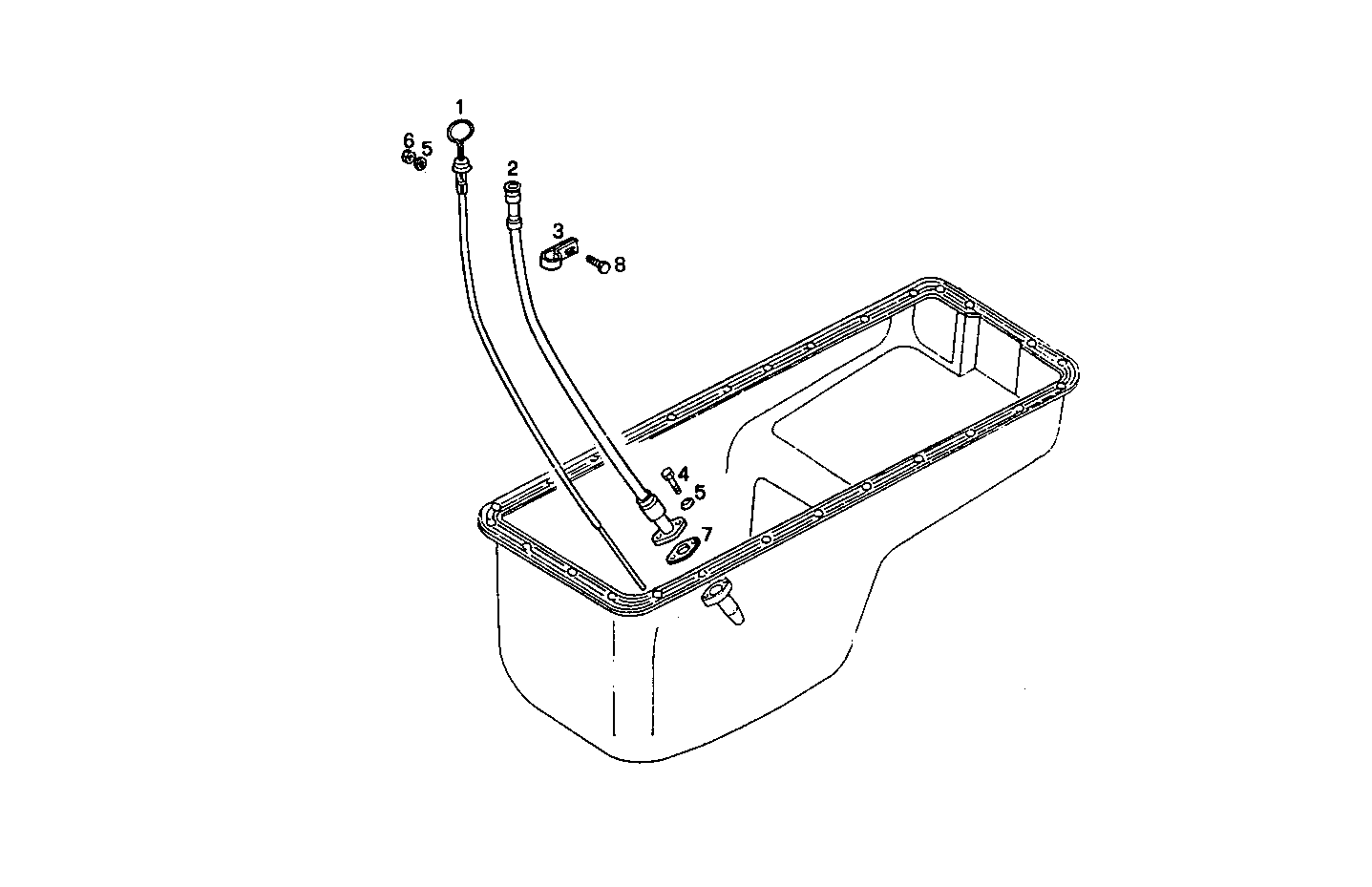

2710.005 OIL DIPSTICK

Iveco/FPT OIL DIPSTICK

Item Part number Description
1 4696147 OIL DIPSTICK
2 8007179 ROD GUIDE
3 8100228 CLIP
4 16605624 HEXAGON BOLT M8X25 MM (8.8)
5 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
6 17037931 HEXAGON NUT M8X1,25
7 98418621 GASKET
8 16605524 HEXAGON BOLT M8X20 MM
