GS8281SRi26.02

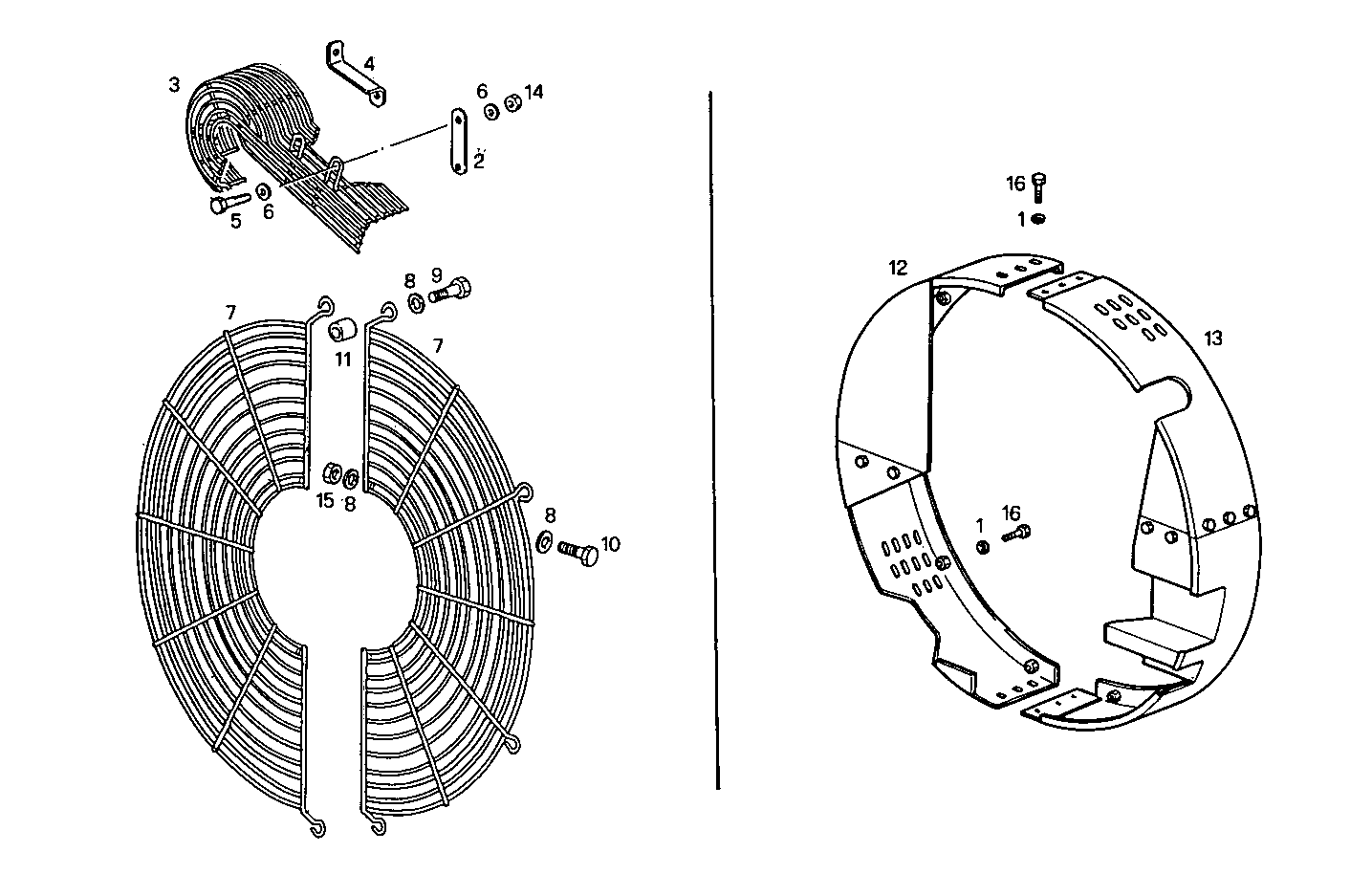

5770.011/02 SHIELDS

Iveco/FPT SHIELDS

Item Part number Description
1 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
2 8008576 RETAINER
3 8008577 PROTECTION [up to 12-94]
4 8009103 RETAINER [up to 12-94]
5 16607624 SCREW M10X25
6 17095104 WASHER Ø10X21X2 MM
7 8111444 PROTECTION
8 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
9 16605624 HEXAGON BOLT M8X25 MM (8.8)
10 16625734 HEXAGON BOLT M8X35
11 17816214 SPACER Ø10X8,5X18 MM
12 8019049 PROTECTION [from 12-94]
13 8019050 PROTECTION [from 12-94]
14 17038121 HEXAGON NUT M10
15 17037931 HEXAGON NUT M8X1,25
16 16605424 SCREW M8X16 MM (8.8)
