N40ENT426.00A001

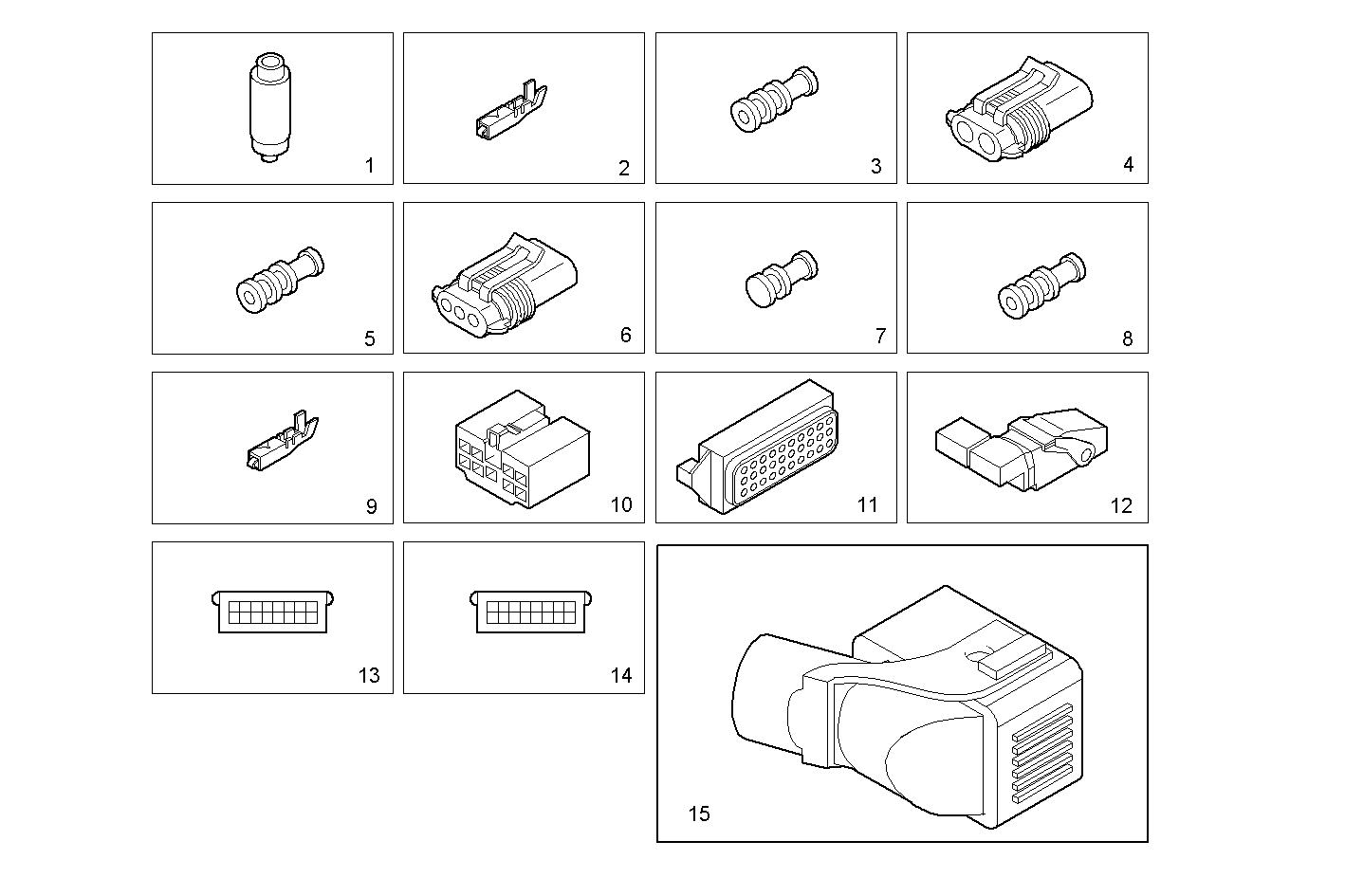

8600.279/03 ACCESSORIES
| Item | Part number | Description |
|---|---|---|
| 1 | 12267380 | CONNECTION |
| 2 | 98435372 | TERMINAL |
| 3 | 4861936 | RUBBER BUSH YELLOW |
| 4 | 98435346 | WIRE CONNECTOR 2 pin female |
| 5 | 500382761 | RUBBER BUSH BLUE |
| 6 | 8031989 | WIRE CONNECTOR ASSY |
| 7 | 500382765 | RUBBER PLUG |
| 8 | 500382764 | RUBBER BUSH |
| 9 | 16726054 | TERMINAL |
| 10 | 8031431 | WIRE CONNECTOR assy 5 pin female |
| 11 | 500382735 | WIRE CONNECTOR 89 pin for "E.D.C." |
| 12 | 500382740 | COVER |
| 13 | 16724882 | WIRE CONNECTOR |
| 14 | 8046821 | WIRE CONNECTOR ASSY |
| 15 | 8034788 | CONNECTION ASSY |
