N40ENT426.00A001

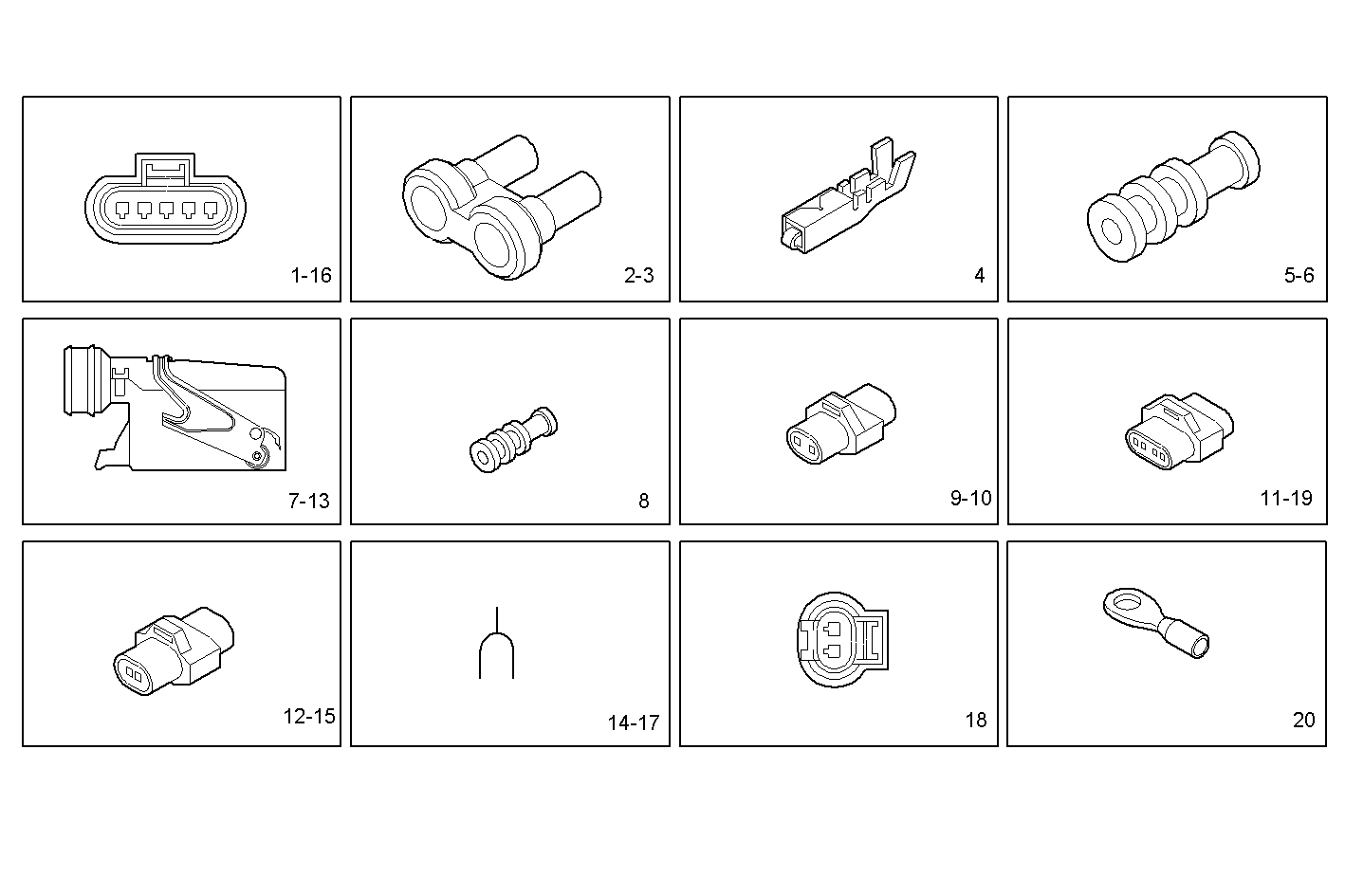

8600.279/04 ACCESSORIES
| Item |
Part number |
Description |
|
1 |
8045174 |
WIRE CONNECTOR ASSY |
|
2 |
8045170 |
CONNECTION ASSY |
|
3 |
8045169 |
CONNECTION ASSY |
|
4 |
12309290 |
TERMINAL |
|
5 |
4835259 |
GASKET |
|
6 |
12309080 |
GASKET |
|
7 |
504144930 |
WIRE CONNECTOR |
|
8 |
500382761 |
RUBBER BUSH BLUE |
|
9 |
16849388 |
WIRE CONNECTOR |
|
10 |
16849387 |
WIRE CONNECTOR |
|
11 |
16849487 |
WIRE CONNECTOR |
|
12 |
504147376 |
CONNECTION |
|
13 |
8045173 |
CONNECTION ASSY |
|
14 |
16852154 |
TERMINAL |
|
15 |
8045171 |
WIRE CONNECTOR ASSY |
|
16 |
504145901 |
PLUG COUPLING |
|
17 |
12309390 |
TERMINAL |
|
18 |
8045172 |
WIRE CONNECTOR ASSY |
|
19 |
8045175 |
WIRE CONNECTOR ASSY |
|
20 |
98489007 |
TERMINAL |
