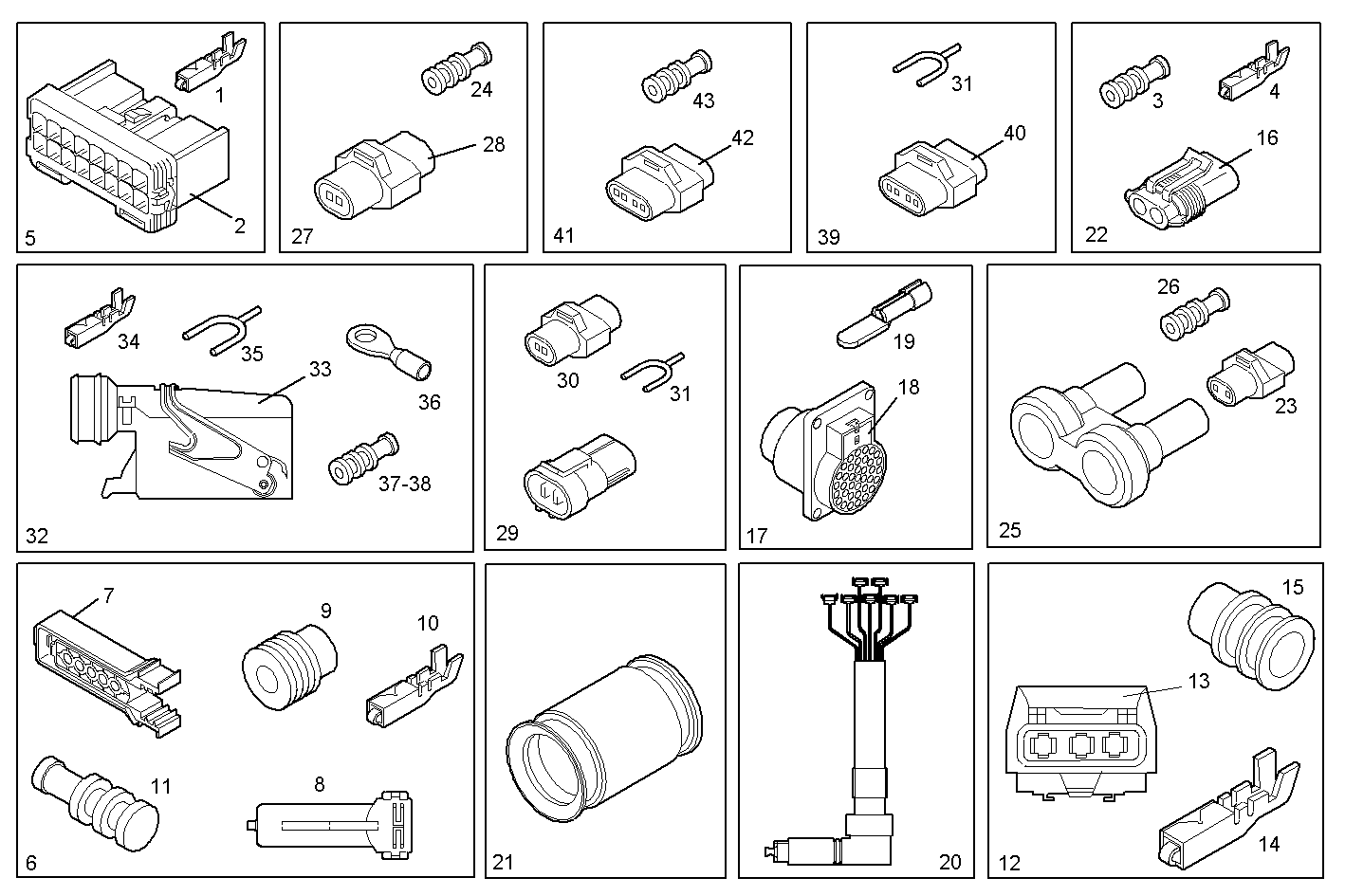

| Item |
Part number |
Description |
|
1 |
16726054 |
TERMINAL |
|
2 |
16724882 |
WIRE CONNECTOR |
|
3 |
4861936 |
RUBBER BUSH YELLOW |
|
4 |
98435372 |
TERMINAL |
|
5 |
8046821 |
WIRE CONNECTOR ASSY |
|
6 |
8030193 |
WIRE CONNECTOR assy 5 pin female |
|
7 |
500363489 |
WIRE CONNECTOR |
|
8 |
500363578 |
COVER |
|
9 |
500363737 |
RUBBER BUSH |
|
10 |
500363580 |
TERMINAL |
|
11 |
500395785 |
RUBBER BUSH |
|
12 |
8030575 |
CONNECTION ASSY |
|
13 |
99430234 |
PLUG COUPLING |
|
14 |
12309290 |
TERMINAL |
|
15 |
4835259 |
GASKET |
|
16 |
98435346 |
WIRE CONNECTOR 2 pin female |
|
17 |
8031432 |
WIRE CONNECTOR assy 30 pin female |
|
18 |
504013633 |
CONNECTION |
|
19 |
99462549 |
TERMINAL |
|
20 |
8042255 |
SET OF WIRING |
|
21 |
504105923 |
EXHAUST HOSE |
|
22 |
8031989 |
WIRE CONNECTOR ASSY |
|
23 |
16849387 |
WIRE CONNECTOR |
|
24 |
500382761 |
RUBBER BUSH BLUE |
|
25 |
8045170 |
CONNECTION ASSY |
|
26 |
16849388 |
WIRE CONNECTOR |
|
27 |
8045171 |
WIRE CONNECTOR ASSY |
|
28 |
504147376 |
CONNECTION |
|
29 |
8045172 |
WIRE CONNECTOR ASSY |
|
30 |
504154752 |
CONNECTION |
|
31 |
16852154 |
TERMINAL |
|
32 |
8045173 |
CONNECTION ASSY |
|
33 |
504144930 |
WIRE CONNECTOR |
|
35 |
12309390 |
TERMINAL |
|
36 |
98489007 |
TERMINAL |
|
38 |
12309080 |
GASKET |
|
39 |
8045174 |
WIRE CONNECTOR ASSY |
|
40 |
504145901 |
PLUG COUPLING |
|
41 |
8045175 |
WIRE CONNECTOR ASSY |
|
42 |
16849487 |
WIRE CONNECTOR |
