N40ENTC21.00A014

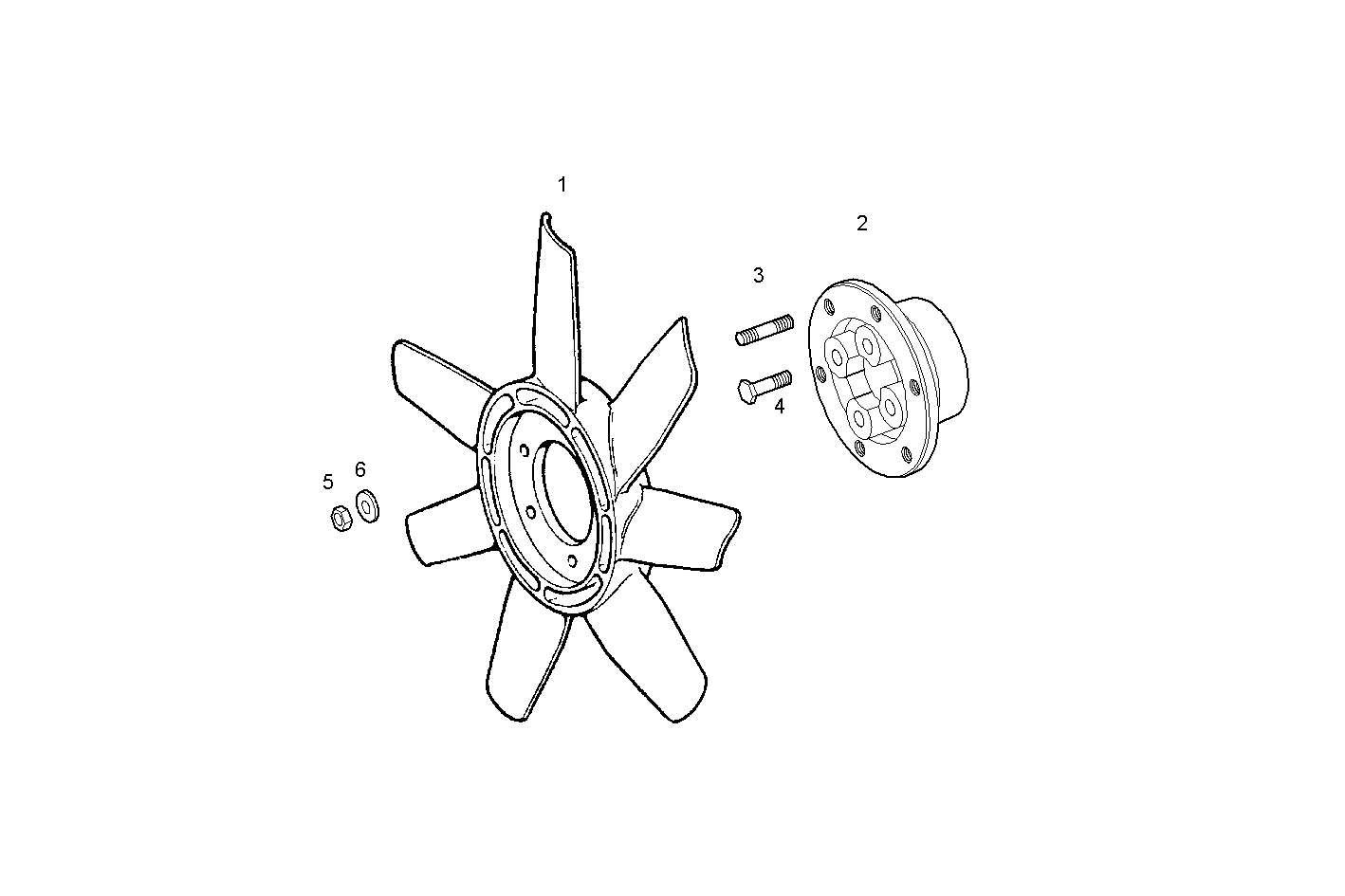

3470.019 FAN ASSEMBLY
| Item | Part number | Description |
|---|---|---|
| 1 | 4698188 | BLOWER Ø500 MM |
| 2 | 8032484 | SPACING BAR |
| 3 | 16731324 | STUD M10X30 MM |
| 4 | 16599025 | SCREW M10X120 MM |
| 5 | 17038131 | HEXAGON NUT M10 |
| 6 | 16665604 | WASHER Ø10X20 MM |
