N40ENTC21.00A016

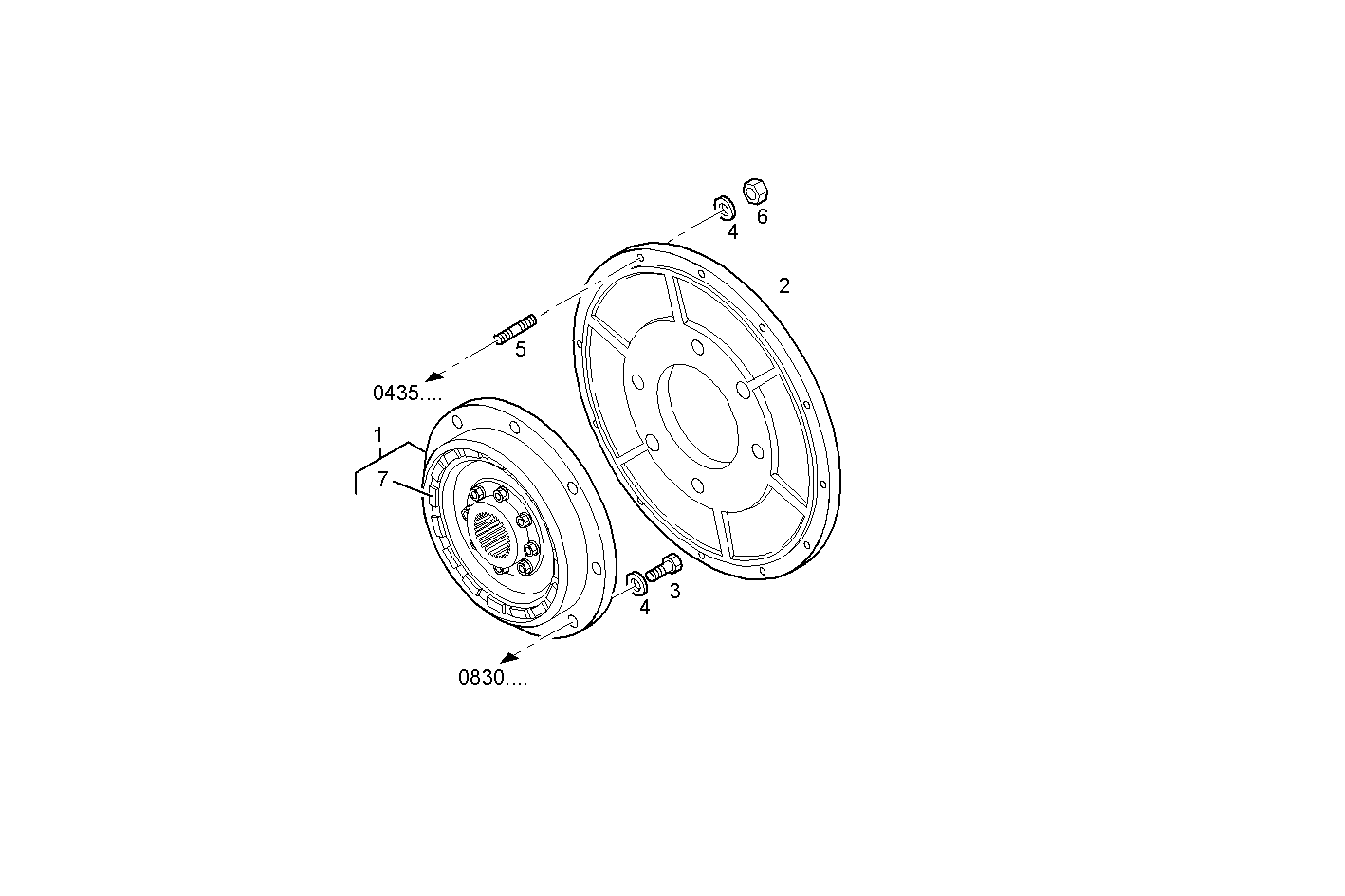

0870.002 FLYWHEEL ARRANGED FOR TRANSMISSION
| Item | Part number | Description |
|---|---|---|
| 1 | 8039107 | FLEXIBLE COUPLING ASSY |
| 2 | 8101679 | FLANGE |
| 3 | 16607625 | SCREW M10X25 |
| 4 | 17090174 | SPRING WASHER Ø10X20 MM |
| 5 | 16748524 | STUD M10X25 MM (8.8) |
| 6 | 17038131 | HEXAGON NUT M10 |
| 7 | 4932462 | DOWEL |
