N40ENTC21.00A016

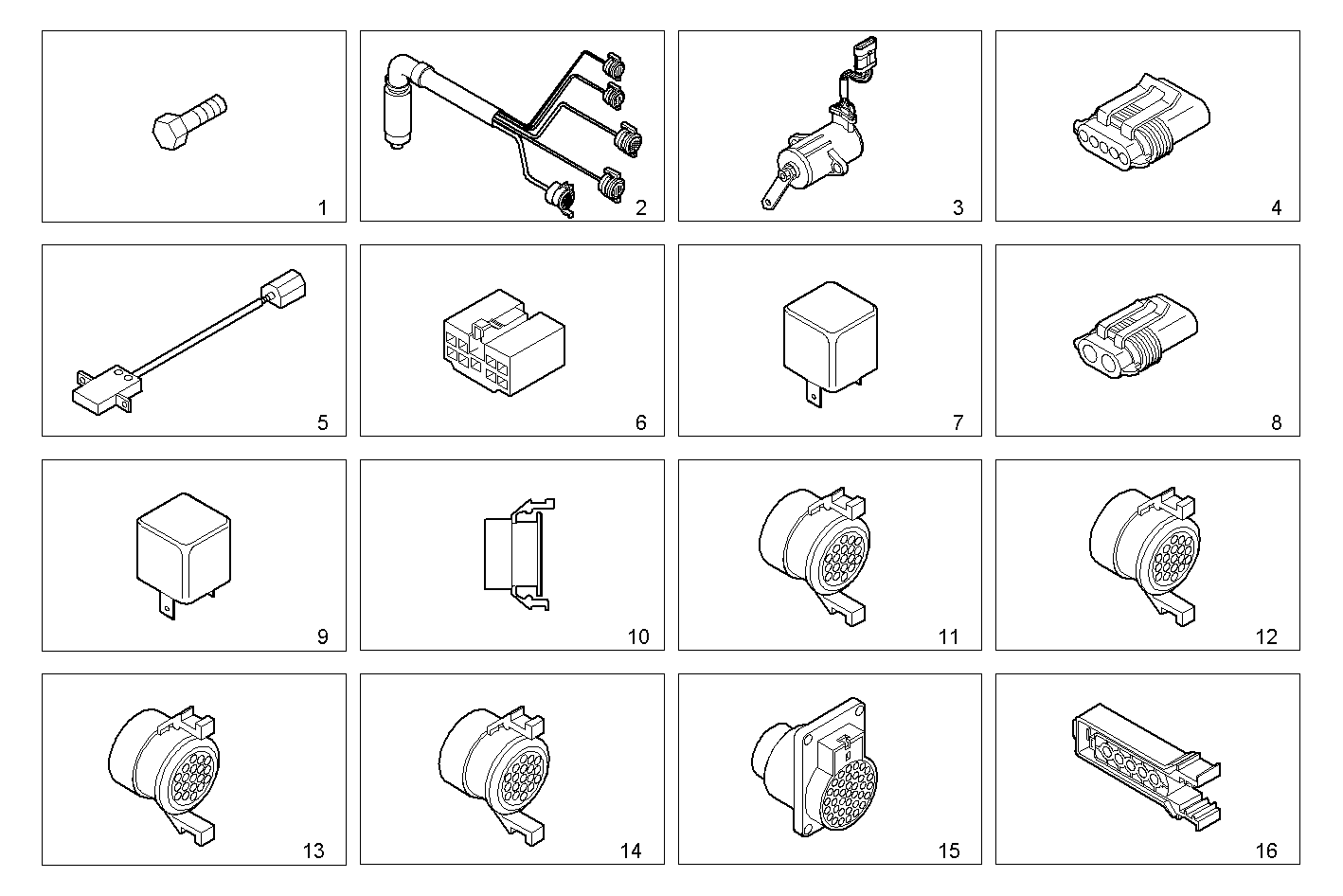

8328.013/01 ELECTRIC WIRING

Iveco/FPT ELECTRIC WIRING

Item Part number Description
1 4899091 HEXAGON BOLT
2 8032263 WIRE/CABLE ASSY
3 500388702 TRANSMITTER acceler.pedal position
4 8031313 WIRE CONNECTOR assy 5 pin female
5 99464594 SWITCH for "Blink code"
6 8031431 WIRE CONNECTOR assy 5 pin female
7 504075123 RELAY
8 8030574 WIRE CONNECTOR ASSY [UP TO 27-06-05]
9 500362250 RELAY 50A 24V
10 8035244 WIRE CONNECTOR assy 19 pin male -pin layout A
11 8032279 WIRE CONNECTOR assy 19 pin male -pin layout B
12 8032280 WIRE CONNECTOR assy 19 pin male -pin layout C
13 8032281 WIRE CONNECTOR assy 10 pin male -pin layout G
14 8032282 WIRE CONNECTOR assy 10 pin male -pin layout E
15 8031432 WIRE CONNECTOR assy 30 pin female
16 8030193 WIRE CONNECTOR assy 5 pin female
