N40ENTC21.00A016

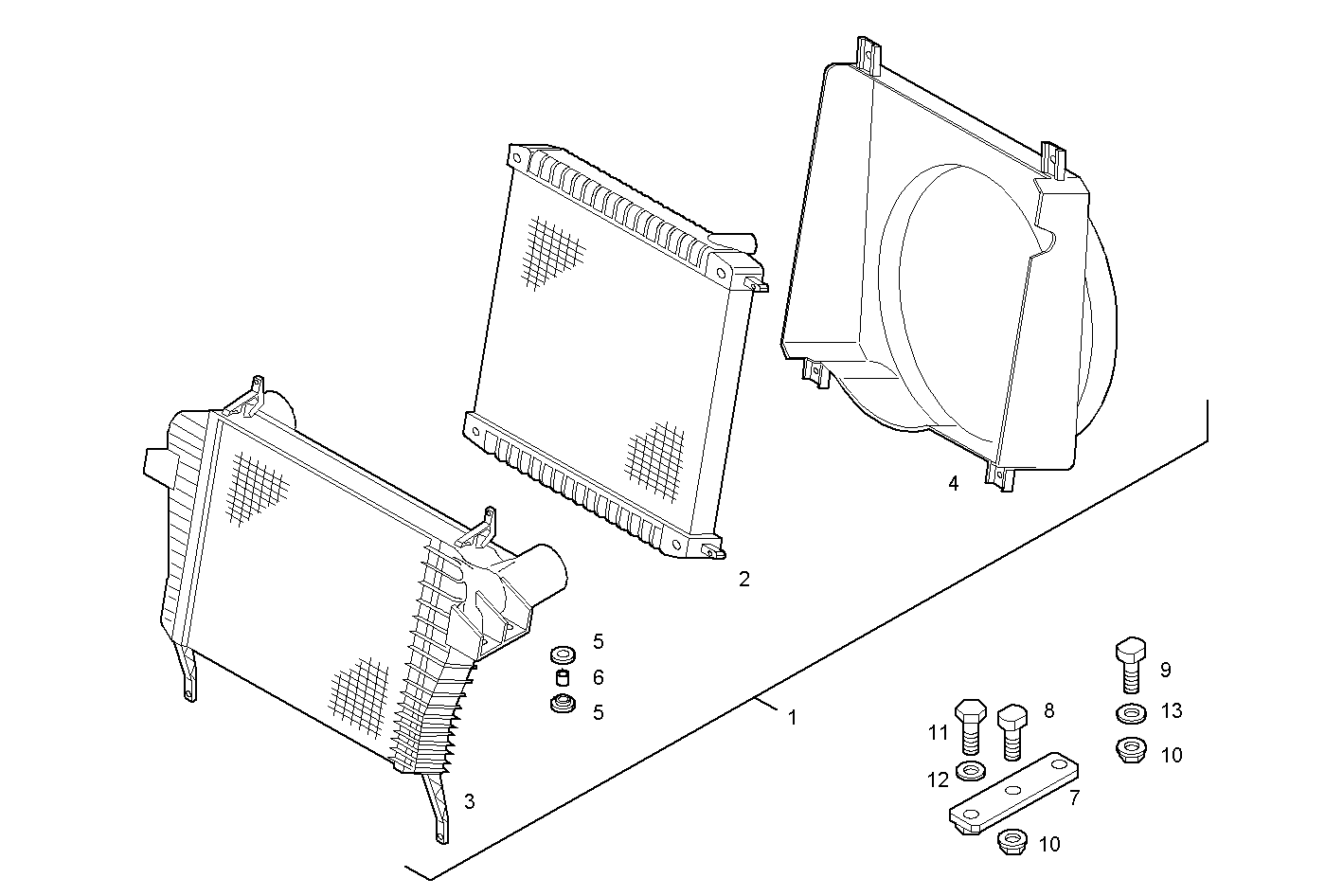

8600.152 ACCESSORIES
| Item | Part number | Description |
|---|---|---|
| 1 | 504000185 | WATER RADIATOR ASSY |
| 2 | 500380655 | WATER RADIATOR |
| 3 | 500380659 | HEAT EXCHANGER |
| 4 | 504000186 | AIR HOOD |
| 5 | 504127750 | RUBBER LUG |
| 6 | 504127752 | SPACING BAR |
| 7 | 500368578 | FASTENING BRACKET |
| 8 | 500372469 | SCREW M10X1,5 |
| 9 | 16587125 | HEXAGON BOLT M10X25 MM |
| 10 | 16750325 | HEXAGON NUT M10 |
| 11 | 16587625 | HEXAGON BOLT M10X50 MM |
| 12 | 500365203 | WASHER |
| 13 | 16665604 | WASHER Ø10X20 MM |
