N40ENTC21.00A022

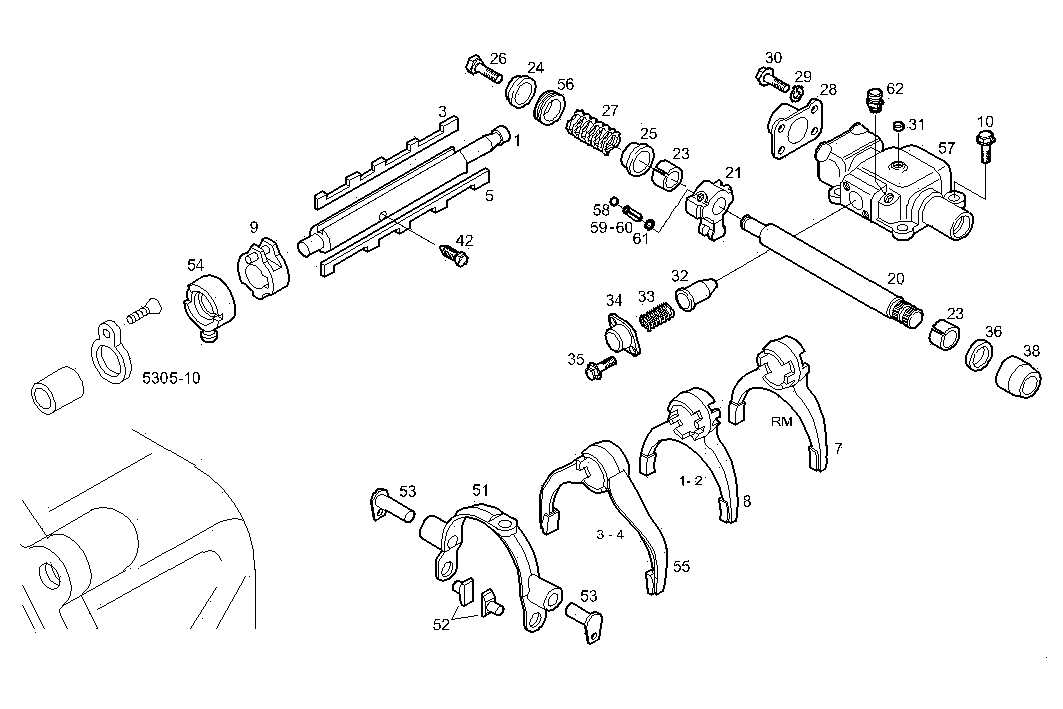

5301.003/03 TRANSMISSION - components

Iveco/FPT TRANSMISSION

Item Part number Description
1 8870639 SHIFT FORK ROD
3 8870641 LOCKING PLATE
5 8870640 LOCKING PLATE
7 8870645 SHIFT FORK REVERSE-1ST SPEED
8 8870643 SHIFT FORK REVERSE-1ST SPEED
9 8870693 GEAR SELECTOR
10 16586324 HEXAGON BOLT M8X1,25X20 MM
20 8870876 SHIFT FORK ROD
21 8870657 GEAR SELECT.SLEEVE
23 8859274 BUSH
24 8859145 CAP
25 8859111 CAP
26 8859711 HEXAGON BOLT M8X1,25
27 8863475 SPRING
28 8859107 COVER
29 17094824 WASHER Ø8,40X15 MM
30 16605534 HEXAGON BOLT M8X20 MM (10.9)
31 16988301 LOCK PLUG Ø20 MM
32 8868402 CONTROL PISTON
33 8863476 SPRING
34 8868305 COVER
35 18138424 HEXAGON BOLT M8X20 MM
36 40101080 SHAFT SEAL
38 8867468 PROTECTION
42 8859313 SCREW
51 8859230 SHIFT FORK
52 8859231 SLIDING SHOE
53 8859232 PIN
54 8870646 HUB
55 8870644 SHIFT FORK
56 8863591 SPACING BAR
57 8870654 UPPER G.BOX COVER
58 8870804 PLUG
59 17261270 DOWEL PIN
60 17257870 DOWEL PIN Ø6 MM
61 16870373 CIRCLIP
62 13411990 BREATHER
