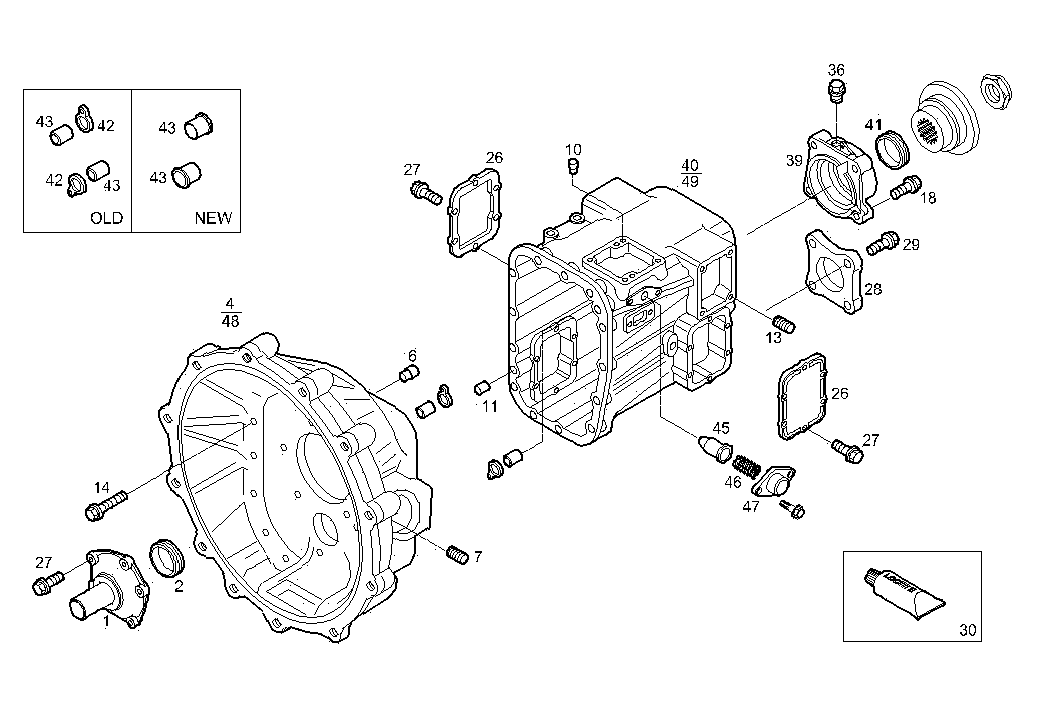

| Item |
Part number |
Description |
|
1 |
8870303 |
FRONT G.BOX COVER |
|
2 |
40101843 |
SHAFT SEAL Ø48X65 MM SP=10 MM |
|
4 |
99808221 |
CLUTCH HOUSING |
|
6 |
8868506 |
DOWEL PIN |
|
7 |
17849770 |
THREADED INSERT M8X16 MM |
|
10 |
17275410 |
DOWEL PIN Ø8 MM |
|
11 |
8867620 |
DOWEL PIN |
|
13 |
17849870 |
THREADED INSERT M10X20 MM |
|
14 |
16592724 |
HEXAGON BOLT M10X65 MM |
|
18 |
16587424 |
HEXAGON BOLT M10X40 MM |
|
26 |
8859471 |
SIDE G.BOX COVER |
|
27 |
18139524 |
HEXAGON BOLT M10X1,5X30 MM |
|
28 |
8858971 |
COVER |
|
29 |
16677834 |
HEXAGON BOLT M12X30 MM |
|
30 |
1903673 |
ADHESIVE/STICKER LOCTITE |
|
36 |
8863564 |
THREADED PLUG M18X1.5 |
|
39 |
8859216 |
REAR G.BOX COVER |
|
40 |
8870638 |
TRANSMISSION CASE |
|
41 |
40100503 |
SHAFT SEAL Ø65X85 MM SP=13 MM |
|
42 |
8870802 |
WASHER |
|
43 |
8870658 |
BUSH |
|
45 |
8870648 |
CONTROL PISTON |
|
46 |
8870795 |
SPRING |
|
47 |
8870650 |
COVER |
|
48 |
99808296 |
CLUTCH HOUSING |
|
49 |
8872018 |
TRANSMISSION CASE |
