N40ENTD20.00A801

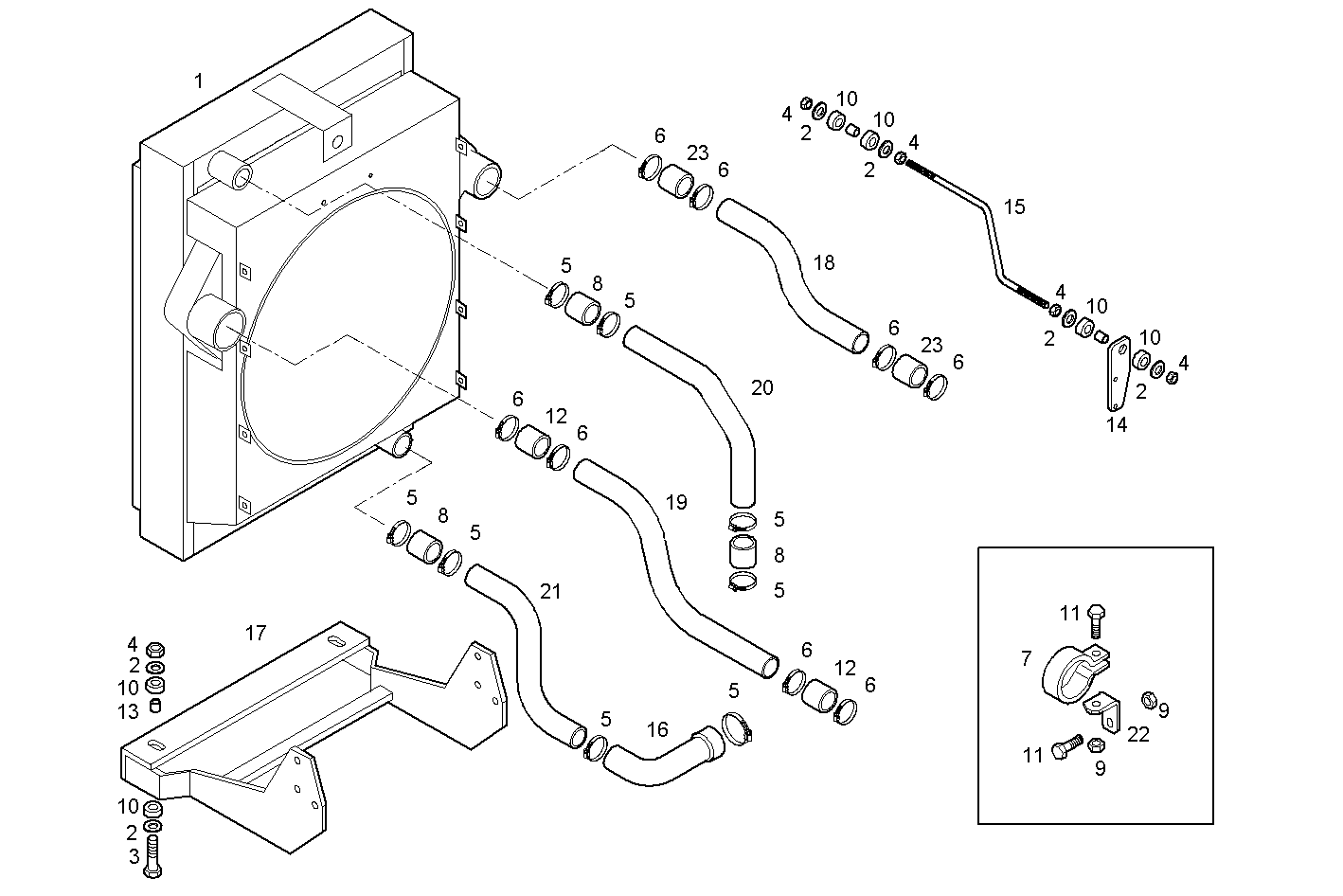

3300.028 RADIATOR 2 CIRCUITS AIR/WATER
| Item | Part number | Description |
|---|---|---|
| 1 | 8037783 | WATER RADIATOR ASSY |
| 2 | 741570 | WASHER Ø10X17 MM SP=2,3 |
| 3 | 16588824 | HEXAGON BOLT M12X1,75X70 MM |
| 4 | 16750425 | HEXAGON NUT M12 |
| 5 | 17764991 | CLIP Ø50/70 MM |
| 6 | 17765191 | CLIP Ø70/90 MM |
| 7 | 18116704 | FASTENING BRACKET |
| 8 | 4863960 | WATER HOSE |
| 9 | 17044735 | NUT M8 |
| 10 | 741569 | RUBBER LUG |
| 11 | 16586424 | HEXAGON BOLT M8X25 MM |
| 12 | 8036376 | WATER HOSE |
| 13 | 8108634 | SPACING BAR |
| 14 | 8037825 | RETAINER |
| 15 | 8037523 | TIE ROD |
| 16 | 8039375 | RUBBER SLEEVE |
| 17 | 8039727 | SUPPORT |
| 18 | 8039733 | AIR PIPE/DUCT |
| 19 | 8039732 | AIR PIPE/DUCT |
| 20 | 8039734 | WATER PIPE |
| 21 | 8039735 | WATER PIPE |
| 22 | 8103023 | RETAINER |
| 23 | 98443275 | TURBOCHARGER HOSE |
