N40ENTM25.10

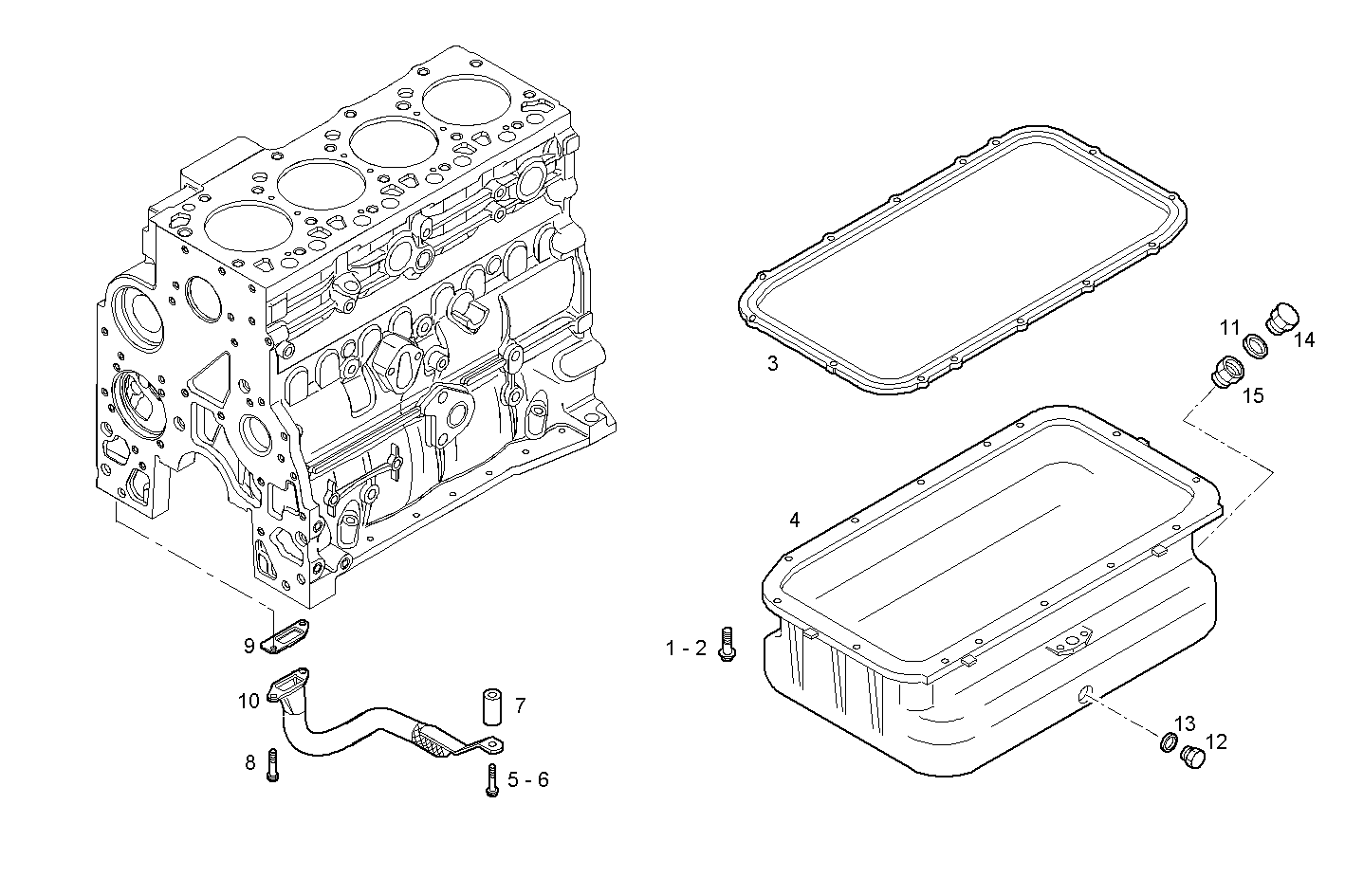

0420.210 OIL SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 16586925 | HEXAGON BOLT M8X50 MM |
| 2 | 16673835 | HEXAGON BOLT M8X30 MM |
| 3 | 504069777 | OIL SUMP GASKET |
| 4 | 8037441 | OIL SUMP |
| 5 | 16598524 | SCREW M8X120MM |
| 6 | 16598425 | HEXAGON BOLT M8X110 MM |
| 7 | 8037427 | SPACING BAR |
| 8 | 16673635 | HEXAGON BOLT M8X1.25X20 |
| 9 | 4898301 | FLAT ENGINE GASKET |
| 10 | 8037423 | SUCTION STRAINER |
| 11 | 16508260 | WASHER Ø16X20 MM |
| 12 | 16992315 | THREADED PLUG M14X1,5 |
| 13 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 14 | 16992415 | THREADED PLUG M16X1,5 |
| 15 | 8109299 | BUSH M24X1,5/M16X1,5 |
