N40ENTM25.10

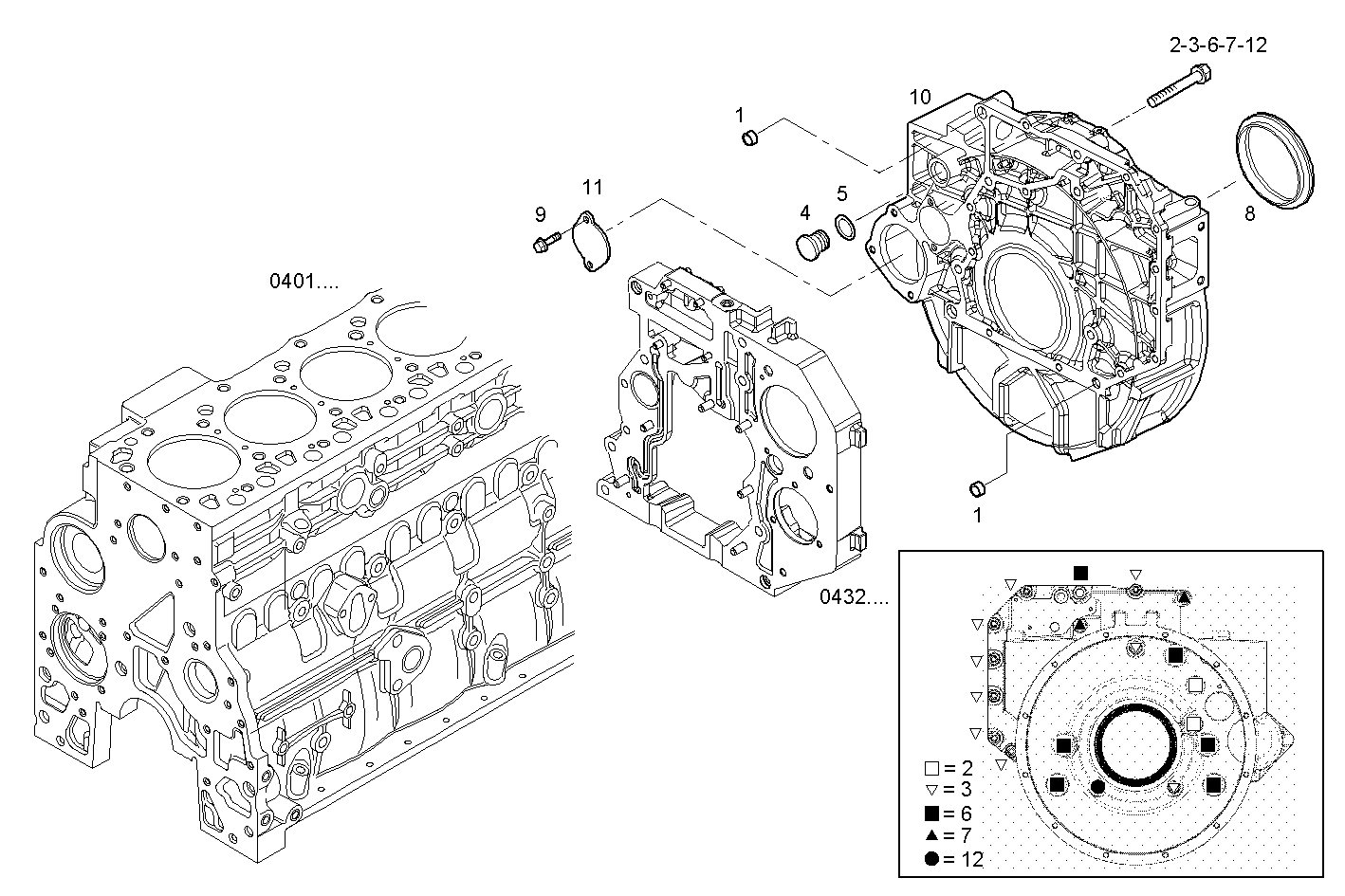

0435.012 FLYWHEEL HOUSING
| Item | Part number | Description |
|---|---|---|
| 1 | 4899026 | DOWEL PIN |
| 2 | 4899109 | HEXAGON BOLT M10X1,5X80 MM |
| 3 | 4892915 | HEXAGON BOLT M10X1,5X40 MM |
| 4 | 4895378 | PLUG Ø29 MM |
| 5 | 17288480 | O-RING 3,53x21,81 |
| 6 | 4899076 | HEXAGON BOLT M12X80 MM |
| 7 | 4897499 | HEXAGON BOLT |
| 8 | 4890833 | SHAFT SEAL |
| 9 | 4899068 | HEXAGON BOLT M8X17 MM |
| 10 | 504033867 | FLYWHEEL HOUSING |
| 11 | 4895155 | COVER |
| 12 | 504080094 | HEXAGON BOLT M10X40 MM |
