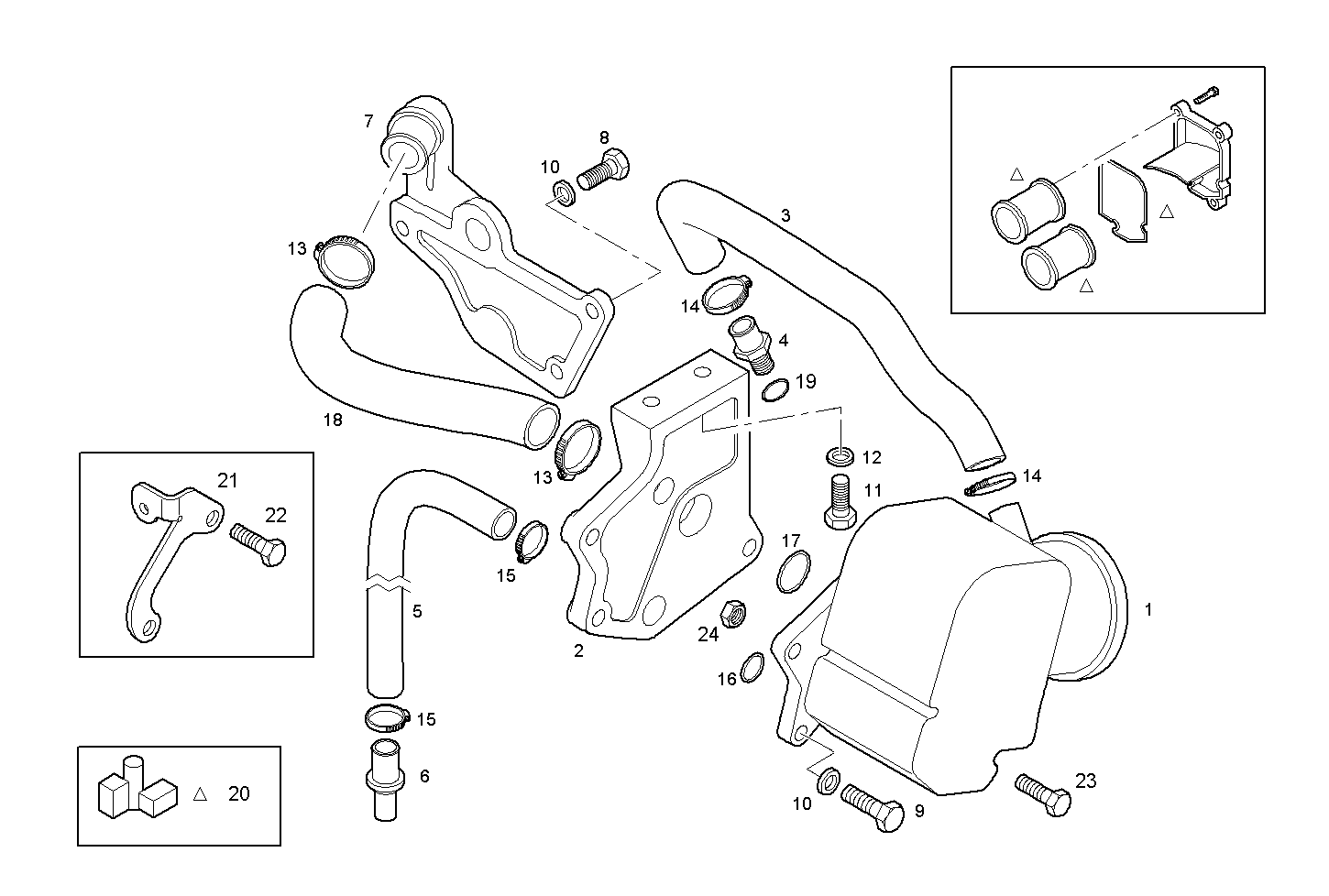

| Item |
Part number |
Description |
|
1 |
4892871 |
BREATHER ASSY |
|
2 |
8032082 |
SUPPORT |
|
3 |
8031988 |
WATER HOSE |
|
4 |
8031987 |
PIPE SOCKET M16X1,5 |
|
5 |
8031995 |
WATER HOSE |
|
6 |
8032079 |
PIPE SOCKET |
|
7 |
8031993 |
COVER |
|
8 |
16603734 |
HEXAGON BOLT M6X20 MM |
|
9 |
10902633 |
HEXAGON BOLT M6X1X25 MM |
|
10 |
17088474 |
WASHER Ø6X12 MM |
|
11 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
12 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
13 |
18088593 |
CLIP 25x40 |
|
14 |
18088493 |
CLIP |
|
15 |
18088393 |
CLIP Ø16/25 MM |
|
16 |
4898372 |
O-RING Ø13,11 MM SP=2,62 MM |
|
17 |
2830304 |
SEAL GASKET Ø18,68 MM SP=3,53 MM |
|
18 |
8034038 |
WATER HOSE |
|
19 |
99489019 |
WASHER Ø16X24 MM SP=1,5 MM |
|
20 |
2992447 |
KIT for breather |
|
21 |
8037989 |
RETAINER |
|
22 |
16587625 |
HEXAGON BOLT M10X50 MM |
|
23 |
16604024 |
HEXAGON BOLT M6X35 MM |
|
24 |
17044625 |
HEXAGON NUT M6 |
