N40ENTM25.10

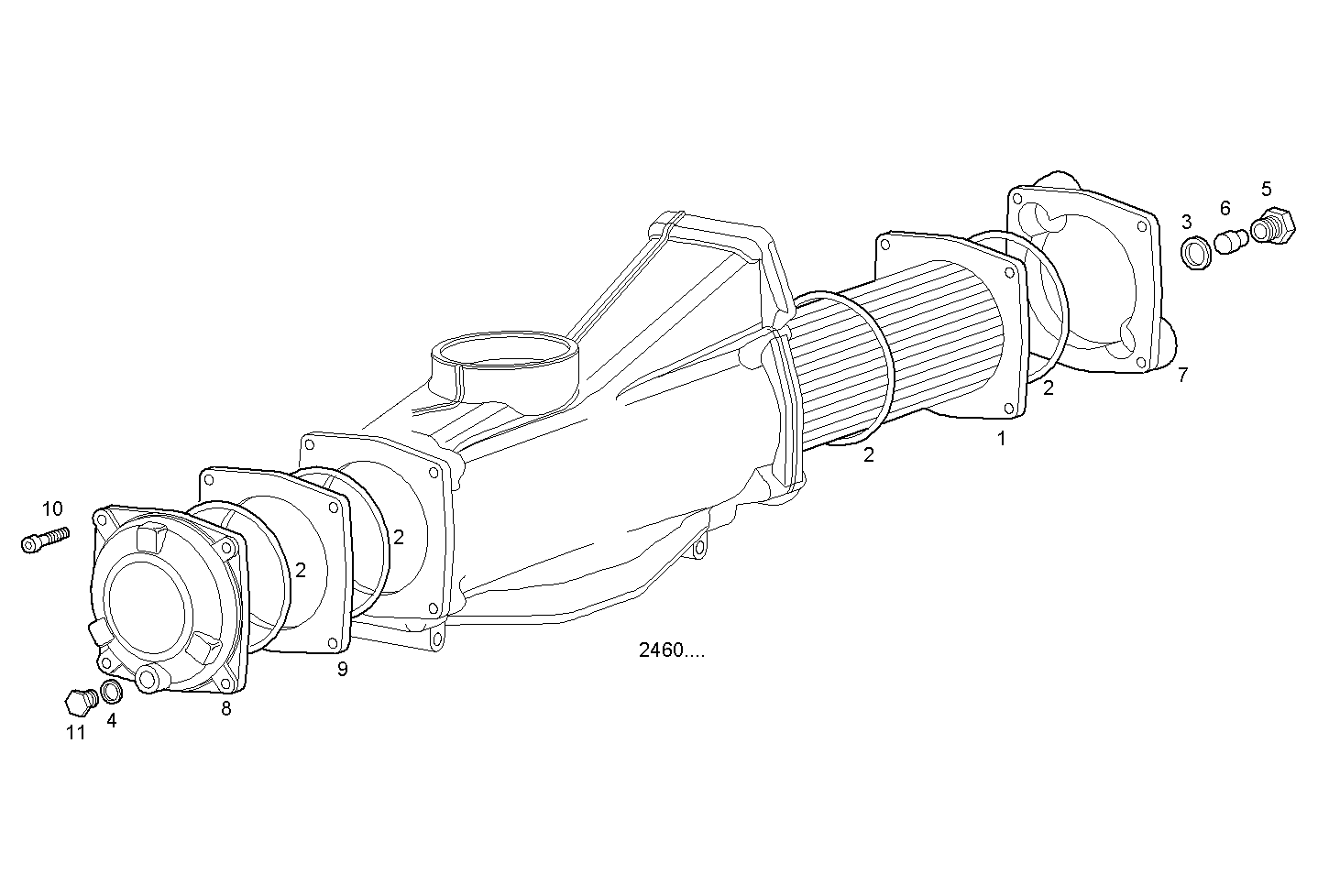

2461.003 AIR - WATER HEAT EXCHANGER (COMPONENTS)
| Item | Part number | Description |
|---|---|---|
| 1 | 8036289 | TUBE STACK |
| 2 | 8032518 | O-RING |
| 3 | 4858610 | WASHER Ø18X24 MM SP=1,5 MM |
| 4 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 5 | 4917793 | PLUG M18 |
| 6 | 8105277 | SACRIFICAL ANODE Ø14 MM |
| 7 | 8032515 | COVER |
| 8 | 8032516 | COVER FRONT |
| 9 | 8032519 | SPACING BAR |
| 10 | 16690924 | CYLIND-HEAD SCREW M8X40 MM |
| 11 | 16992340 | THREADED PLUG M14X1,5 |
