N40ENTM25.10

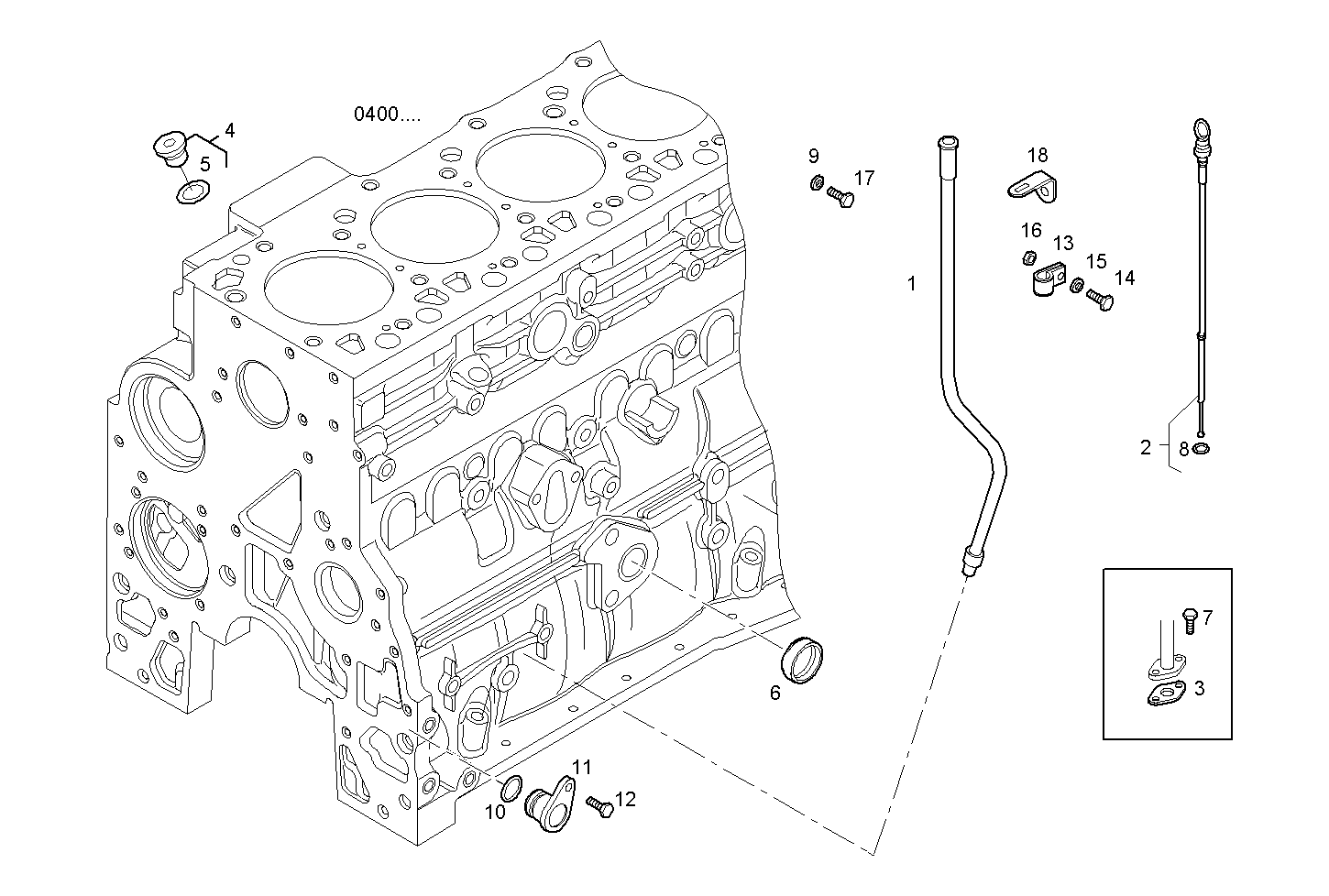

2710.186 OIL DIPSTICK
| Item |
Part number |
Description |
|
1 |
8039471 |
OIL LEVEL TUBE |
|
2 |
8039561 |
OIL DIPSTICK |
|
3 |
98401052 |
FLAT ENGINE GASKET |
|
4 |
4897330 |
PLUG ASSY M12X1,5 |
|
5 |
4895610 |
O-RING |
|
6 |
4895037 |
PLUG |
|
7 |
16673635 |
HEXAGON BOLT M8X1.25X20 |
|
8 |
17277981 |
O-RING 1,78x9,25 |
|
9 |
17088774 |
WASHER Ø6 MM |
|
10 |
17281881 |
O-RING DIA 17,12 SP 2,62 |
|
11 |
504058975 |
OIL FILLER PLUG |
|
12 |
16597225 |
HEXAGON BOLT M6X18 MM |
|
13 |
17316592 |
PIPE CLIP |
|
14 |
18139424 |
HEXAGON BOLT M10X20 MM |
|
15 |
17089574 |
WASHER Ø8X16 MM |
|
16 |
17044725 |
HEXAGON NUT M8 |
|
17 |
16609724 |
HEXAGON BOLT |
|
18 |
8031803 |
FASTENING BRACKET |
