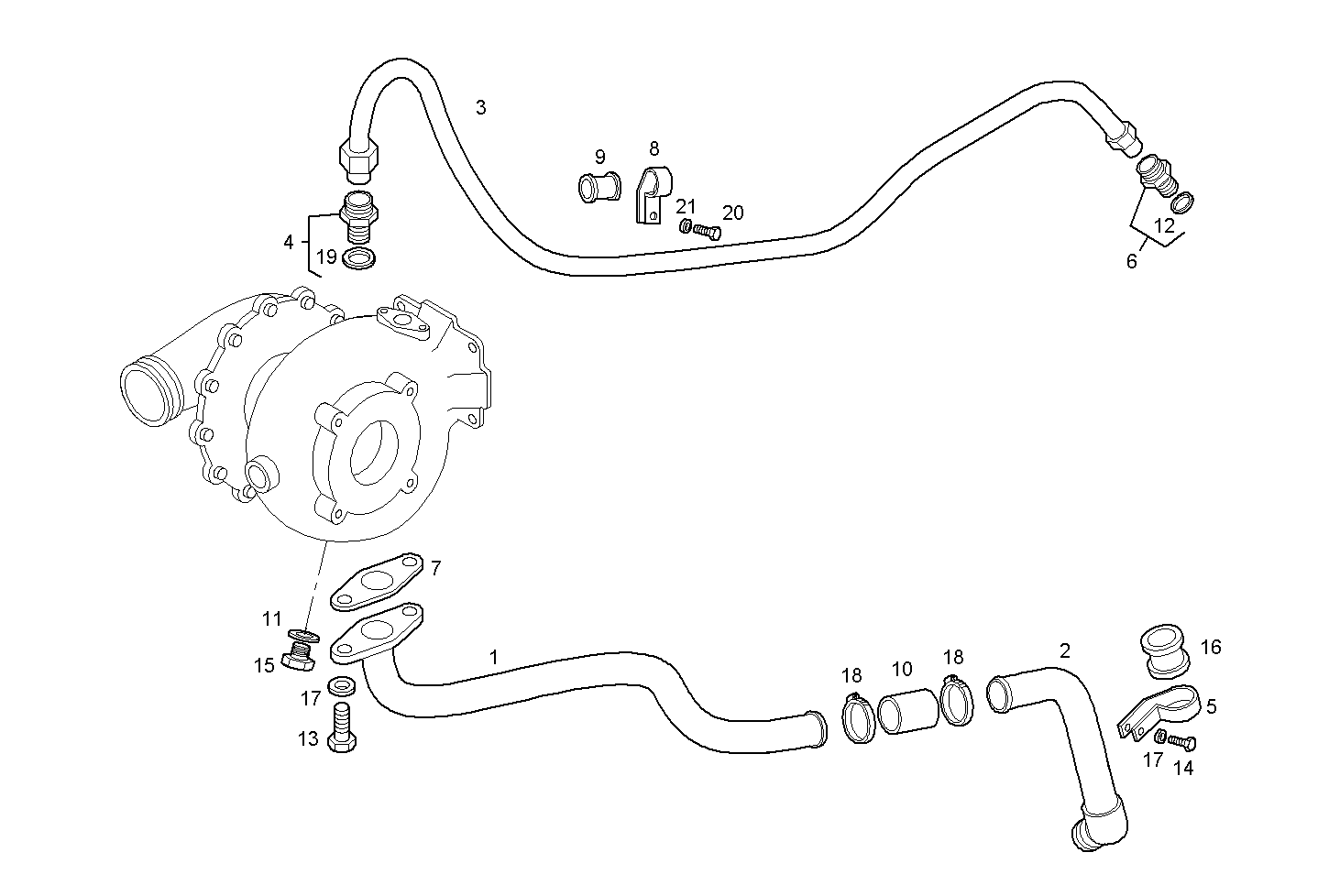

| Item |
Part number |
Description |
|
1 |
8039393 |
OIL LINE |
|
2 |
8039341 |
OIL LINE |
|
3 |
8039382 |
OIL LINE |
|
4 |
8032268 |
PIPE SOCKET |
|
5 |
8039436 |
FASTENING BRACKET |
|
6 |
8032096 |
PIPE SOCKET |
|
7 |
98415923 |
FLAT ENGINE GASKET |
|
8 |
4755963 |
FASTENING BRACKET |
|
9 |
4755964 |
RUBBER PAD |
|
10 |
8109346 |
RUBBER SLEEVE |
|
11 |
99489017 |
SEAL GASKET Ø12X20 MM SP=1,5 MM |
|
12 |
4895610 |
O-RING |
|
13 |
98401723 |
HEXAGON BOLT M8X1,25X12 MM |
|
14 |
16605424 |
SCREW M8X16 MM (8.8) |
|
15 |
16992211 |
THREADED PLUG M12X1,5 |
|
16 |
4757122 |
RUBBER PAD |
|
17 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
18 |
17764593 |
CLIP Ø20/32 MM |
|
19 |
17281881 |
O-RING DIA 17,12 SP 2,62 |
|
20 |
16922524 |
HEXAGON BOLT |
|
21 |
17091074 |
WASHER Ø12X24X2,8 MM |
