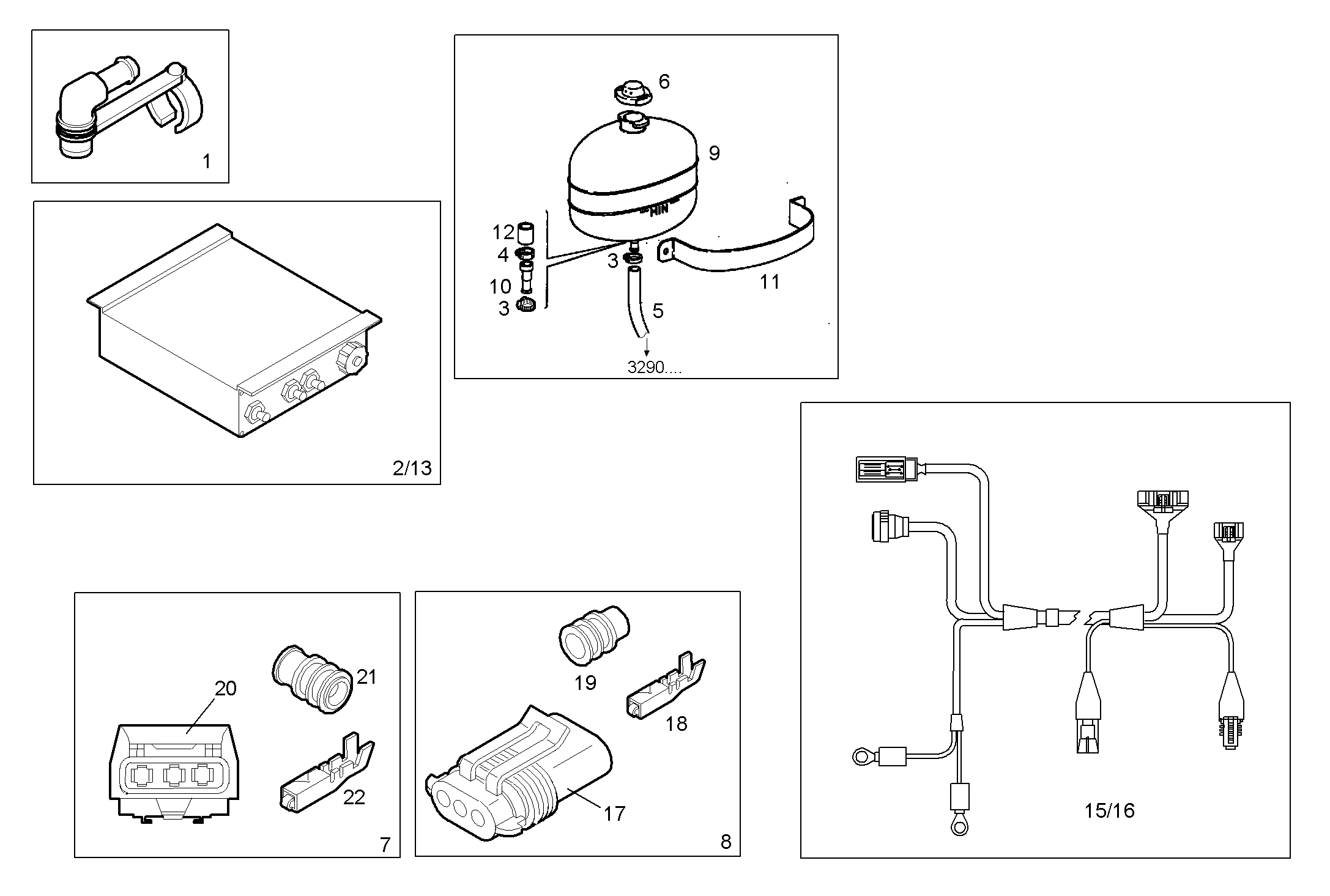

| Item |
Part number |
Description |
|
1 |
8034419 |
ELBOW COUPLING |
|
2 |
8035890 |
SWITCH PANEL 12V [UP TO 01-07-05] |
|
3 |
18087993 |
CLIP Ø8/16 MM |
|
4 |
18088393 |
CLIP Ø16/25 MM |
|
5 |
17723081 |
WATER HOSE Ø7X25 MM |
|
6 |
4274033 |
PLUG |
|
7 |
8030575 |
CONNECTION ASSY |
|
8 |
8033199 |
CONNECTION ASSY |
|
9 |
8033502 |
EXPANSION TANK |
|
10 |
8008226 |
PIPE SOCKET |
|
11 |
8034384 |
CLIP |
|
12 |
17736487 |
WATER HOSE |
|
13 |
8041257 |
SWITCH PANEL relais module 12V [FROM 02-07-05] |
|
15 |
8035938 |
ENGINE HARNESS Interface [UP TO 01-07-05] |
|
16 |
8041169 |
ENGINE HARNESS Interface [FROM 02-07-05] |
|
17 |
12332487 |
CONNECTION |
|
18 |
12331744 |
TERMINAL |
|
19 |
12332885 |
GASKET |
|
20 |
99430234 |
PLUG COUPLING |
|
21 |
4835259 |
GASKET |
|
22 |
12309290 |
TERMINAL |
