N40ENTM25.10

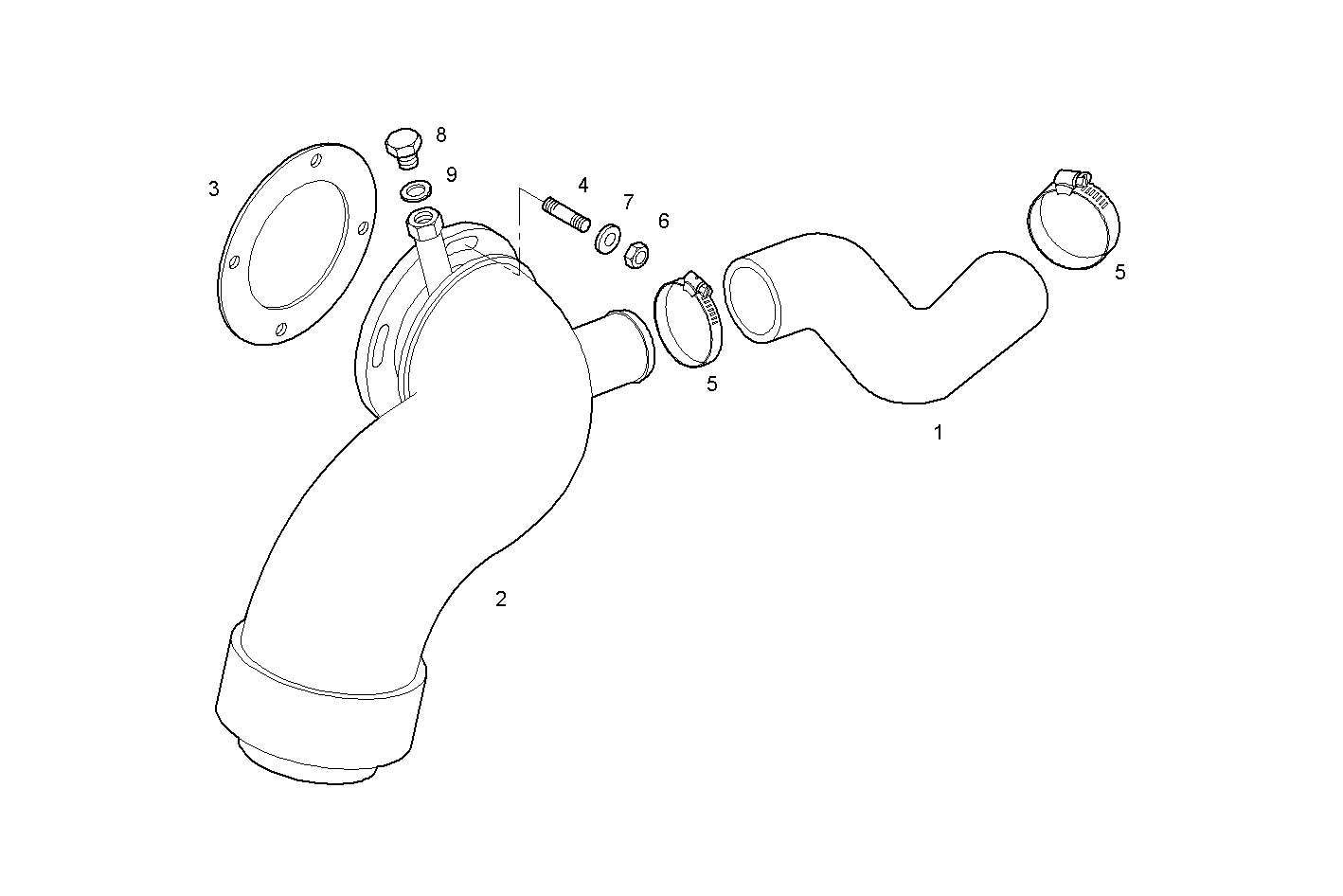

A40050511 GAS-WATER MIXER WITH STERN OUTLET
| Item | Part number | Description |
|---|---|---|
| 1 | 8040849 | RUBBER SLEEVE |
| 2 | 8034254 | MARINE EXHAUST PIPE |
| 3 | 8111833 | GASKET |
| 4 | 16729324 | STUD M8X12X20 MM |
| 5 | 17764892 | PIPE CLIP Ø40-60 MM |
| 6 | 17037925 | HEXAGON NUT M8X1,25 |
| 7 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 8 | 16992211 | THREADED PLUG M12X1,5 |
| 9 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
