N40ENTM25.10

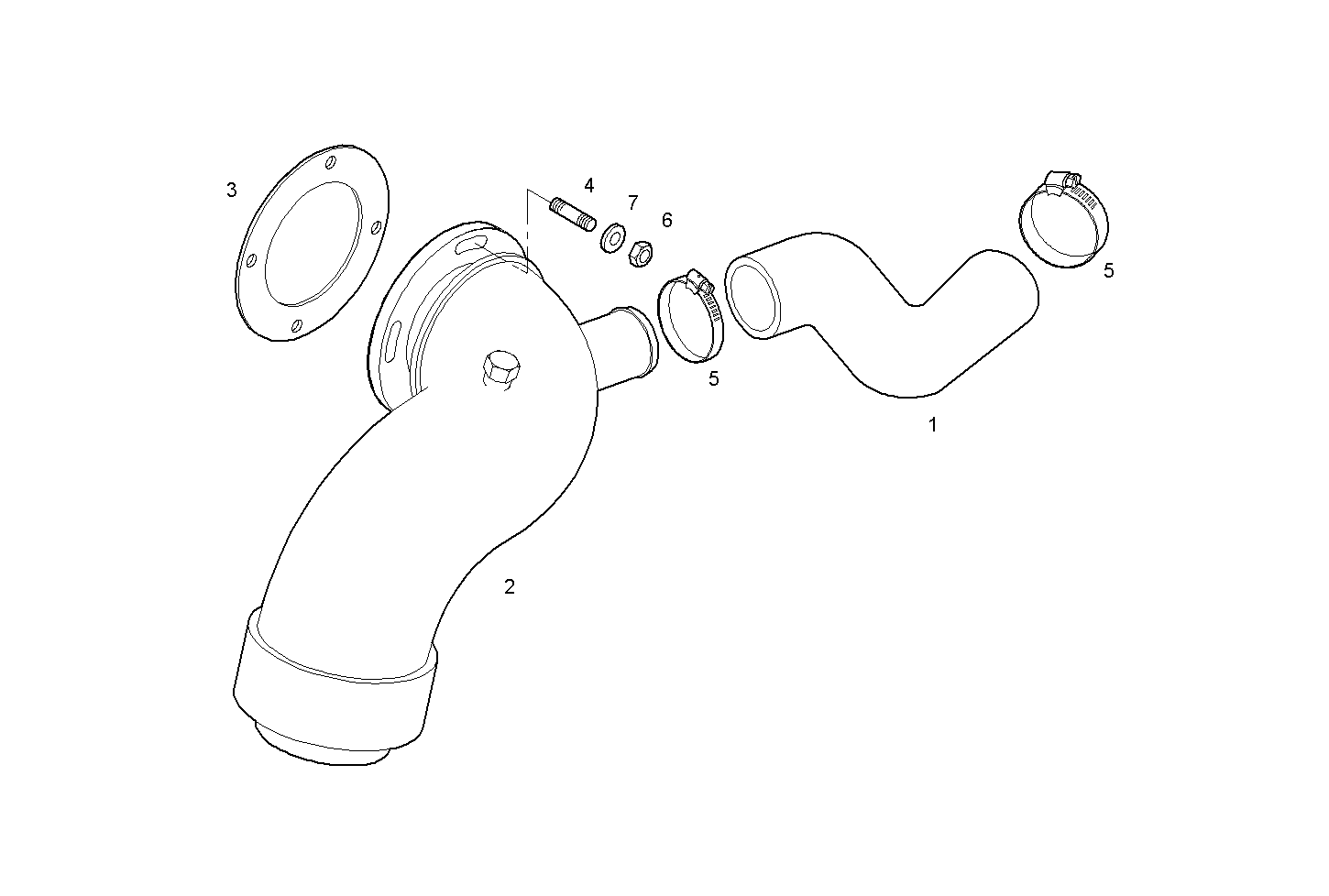

A40050517 GAS-WATER MIXER WITH STERN OUTLET
| Item | Part number | Description |
|---|---|---|
| 1 | 8043143 | WATER HOSE |
| 2 | 8043142 | MARINE EXHAUST PIPE |
| 3 | 8111833 | GASKET |
| 4 | 16729324 | STUD M8X12X20 MM |
| 5 | 17764893 | CLIP Ø40/60 MM |
| 6 | 17037925 | HEXAGON NUT M8X1,25 |
| 7 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
