N45ENTX20.00

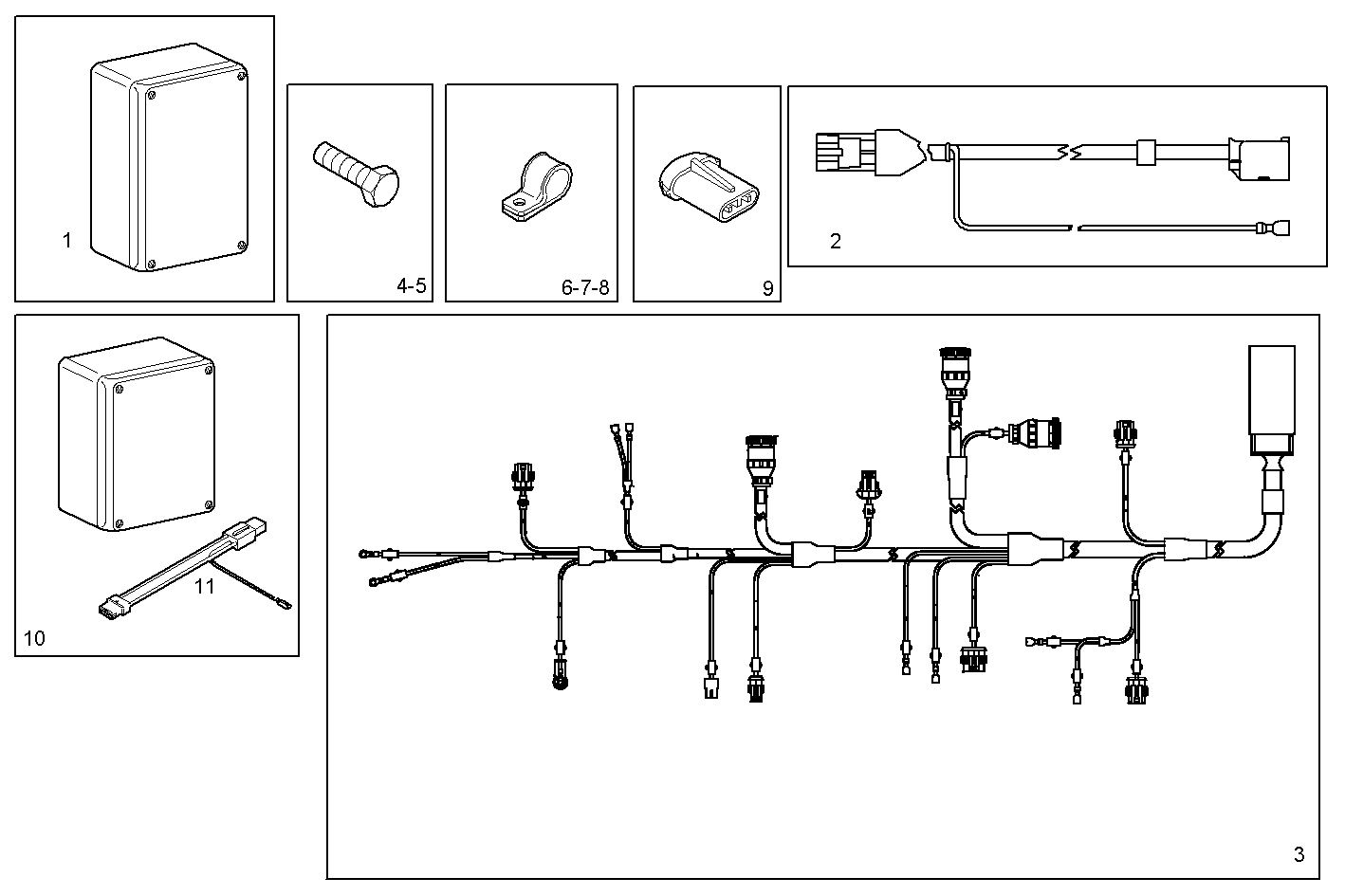

A38100510 ELECTRIC WIRING - 24V

Iveco/FPT ELECTRIC WIRING

Item Part number Description
1 8047353 SWITCHGEAR
2 8037861 ENGINE HARNESS for alternator
3 8044375 ENGINE HARNESS
4 18139424 HEXAGON BOLT M10X20 MM
5 16586225 HEXAGON BOLT M8X1,25X16 MM
6 4936279 CLIP
7 4936278 CLIP
8 17316390 CLIP
9 8045092 CONNECTION
10 8052675 SWITCHGEAR
11 8052686 WIRE/CABLE
