N45ENTX20.00

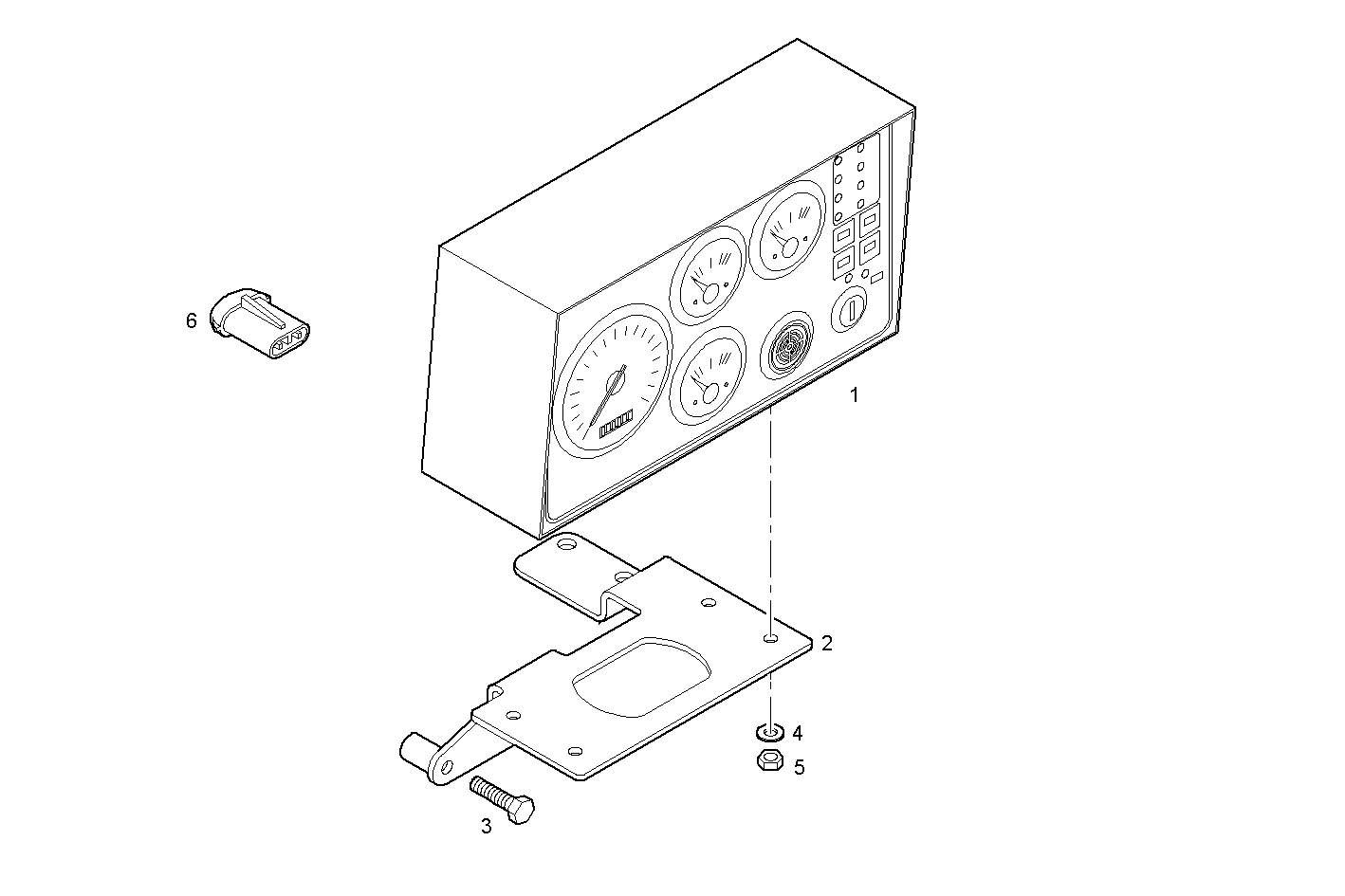

A38770520 MANUAL CONTROL BOARD - 12V
| Item | Part number | Description |
|---|---|---|
| 1 | 8044419 | CONTROL BOARD ASSY |
| 2 | 8049267 | SUPPORT |
| 3 | 16586825 | HEXAGON BOLT M8X1.25X45 MM |
| 4 | 17088974 | SPRING WASHER Ø6X18X1,4 MM |
| 5 | 17037821 | HEXAGON NUT M6X1 |
| 6 | 8045095 | CONNECTION [FROM 12/09/08] |
