N45ENTX20.00A003
8600.023/02 ACCESSORIES

Iveco/FPT ACCESSORIES

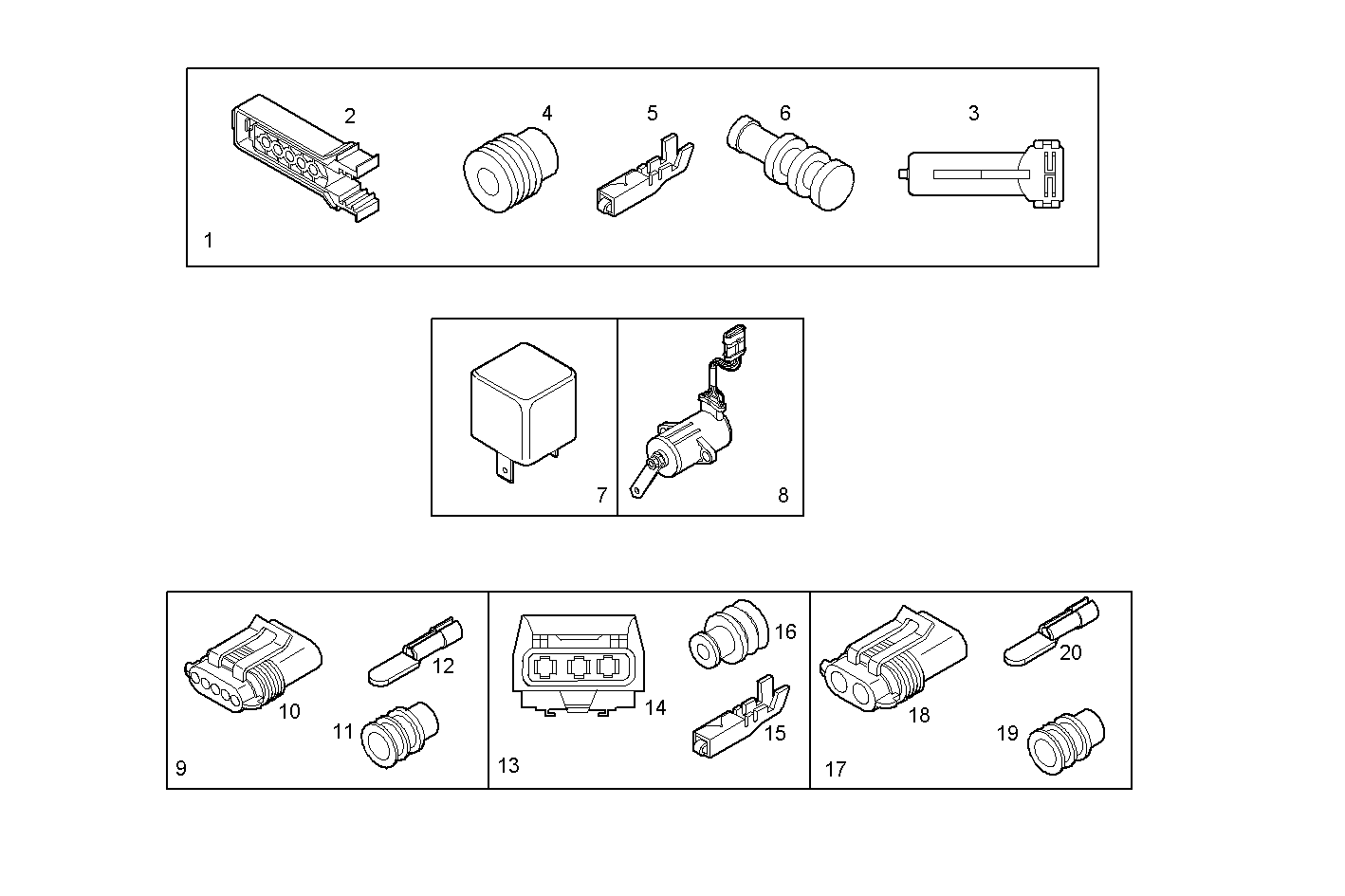

Item Part number Description
1 8030193 WIRE CONNECTOR assy 5 pin female
2 500363489 WIRE CONNECTOR
3 500363578 COVER
4 500363737 RUBBER BUSH
5 500363580 TERMINAL
6 500395785 RUBBER BUSH
7 504040825 DIODE PLATE
8 500388702 TRANSMITTER acceler.pedal position
9 8031313 WIRE CONNECTOR assy 5 pin female
10 12332087 WIRE CONNECTOR
11 12332885 GASKET
12 12331654 TERMINAL
13 8030575 CONNECTION ASSY
14 99430234 PLUG COUPLING
15 12309290 TERMINAL
16 4835259 GASKET
17 8030574 WIRE CONNECTOR ASSY [UP TO 27-06-05]
18 12331387 CONNECTION
19 4861936 RUBBER BUSH YELLOW
20 98435372 TERMINAL
