N45ENTY23.00

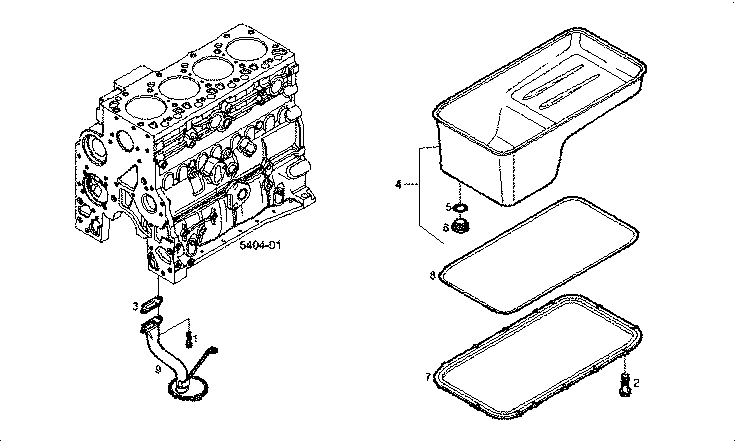

126284 ASSEMBLY-SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 16673635 | HEXAGON BOLT M8X1.25X20 |
| 2 | 4899091 | HEXAGON BOLT |
| 3 | 4898301 | FLAT ENGINE GASKET |
| 4 | 500388253 | OIL SUMP |
| 5 | 17282280 | O-RING Ø2,62X23,47 MM |
| 6 | 4894139 | THREADED PLUG M22X1,5 |
| 7 | 4897876 | SPACING BAR |
| 8 | 4897877 | OIL SUMP GASKET |
| 9 | 500388255 | SUCTION STRAINER |
