N45ENTY23.00

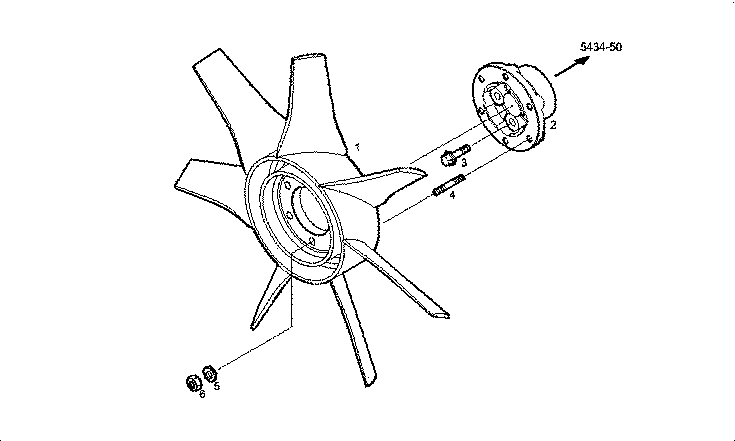

128415 FAN ASSEMBLY - OPTION: A08000505 PULLER FAN 500MM H=50
| Item | Part number | Description |
|---|---|---|
| 1 | 4698188 | BLOWER Ø500 MM |
| 2 | 8031591 | SPACING BAR |
| 3 | 16587824 | HEXAGON BOLT M10X1,5X60 MM |
| 4 | 16731324 | STUD M10X30 MM |
| 5 | 17095014 | WASHER Ø10X18 MM |
| 6 | 17038131 | HEXAGON NUT M10 |
