N45ENTY23.00

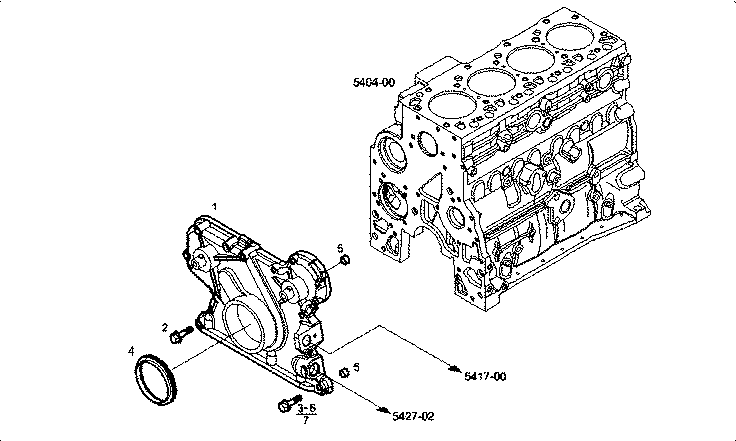

8186 FRONT CRANKCASE COVER
| Item | Part number | Description |
|---|---|---|
| 1 | 4897027 | FRONT C.CASE COVER |
| 2 | 4899078 | HEXAGON BOLT |
| 3 | 4899063 | HEXAGON BOLT M8X30 MM |
| 4 | 4890832 | SHAFT SEAL |
| 5 | 4891209 | DOWEL PIN |
| 6 | 4899019 | HEXAGON BOLT M8X35 MM |
| 7 | 4899063 | HEXAGON BOLT M8X30 MM |
