N45MNAM10.00

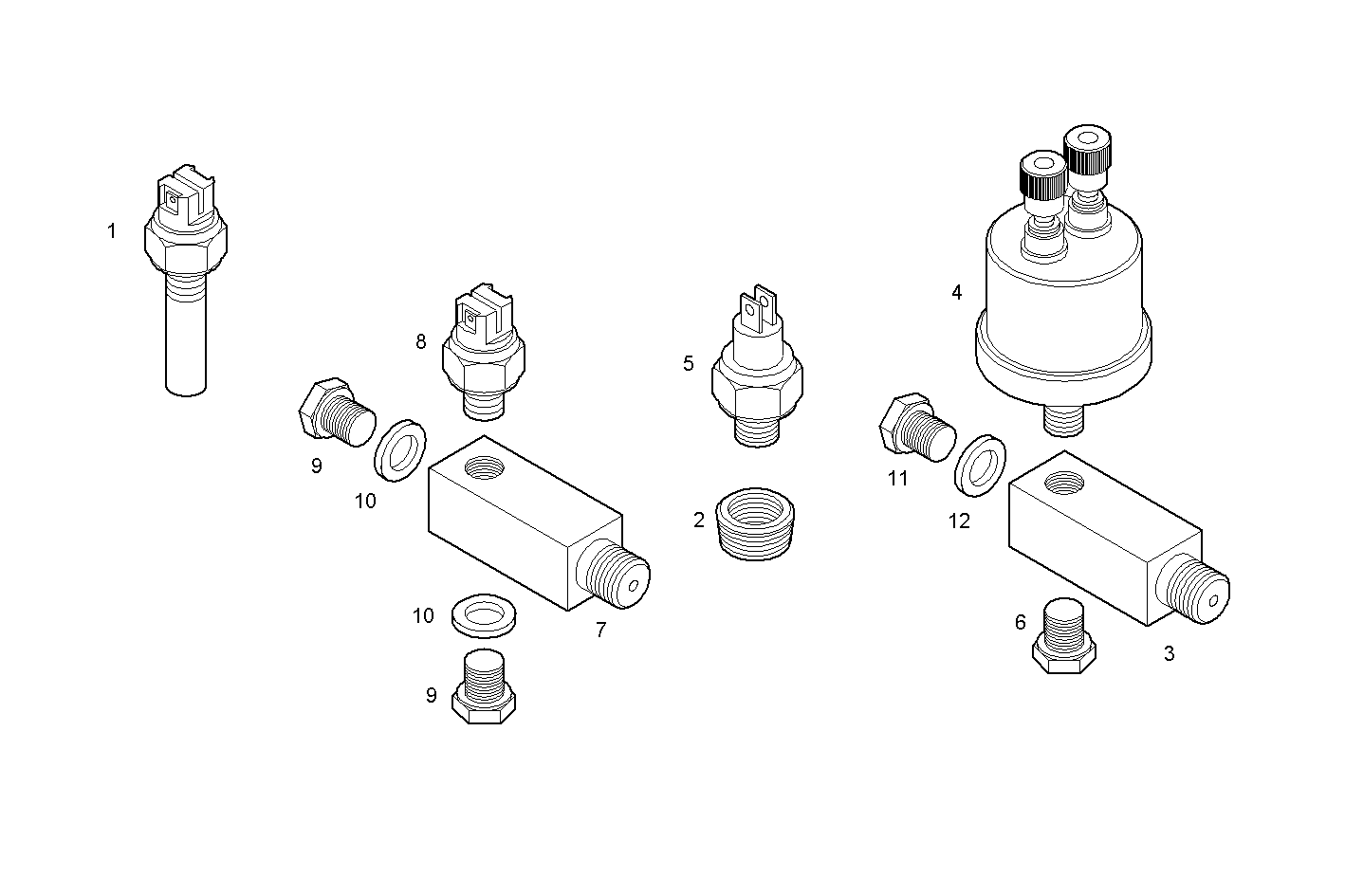

A38550503 SENDER UNITS ALARMS INSTRUMENT - 12/24V - VDO
| Item | Part number | Description |
|---|---|---|
| 1 | 8046585 | TRANSMITTER |
| 2 | 8033022 | PIPE SOCKET |
| 3 | 8038680 | PIPE SOCKET M10 |
| 4 | 8100417 | TRANSMITTER TPO |
| 5 | 8100418 | TRANSMITTER TTA |
| 6 | 4895098 | THREADED PLUG |
| 7 | 8039492 | PIPE SOCKET M12 |
| 8 | 8114030 | TRANSMITTER IBPO |
| 9 | 16992211 | THREADED PLUG M12X1,5 |
| 10 | 16508060 | SEAL GASKET Ø12X15,5 MM |
| 11 | 16992111 | THREADED PLUG M10X1 |
| 12 | 16550760 | GASKET Ø10X13,5 MM SP=1 |
